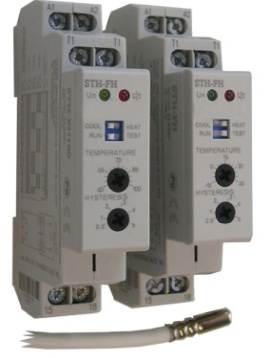

Thermostat "STH" with remote sensor

PDF
Description

Description

The thermostats of the series “STH” are equipt with a NTC remote sensor. The a cable lenght of the sensor is 3m. They are particularly suitably for the employment in housings, in which the temperature is to be measured in a different place as the mounting of the thermostat.
Both heaters, and fans or coolings can be regulated.

The types “STH-FH” and “STH-FH100” have an adjustable hysteresis from 0,5 to 5 K.r.

Technical Details

Type

STH-FH

STH-60W

STH-FH100

Setting range

-15…+ 45 ° C

0...60 °C

+40…+100 °C

Voltage

24…240V AC/DC

Dimensions (LxBxH / LxWxH)

90 x 64 x 18mm

Hysteresis

0,5-5 K adjustable

Mounting

Clip for DIN rail EN 60715

Weight

ca. 75g

Protection Type

IP 40 from front panel

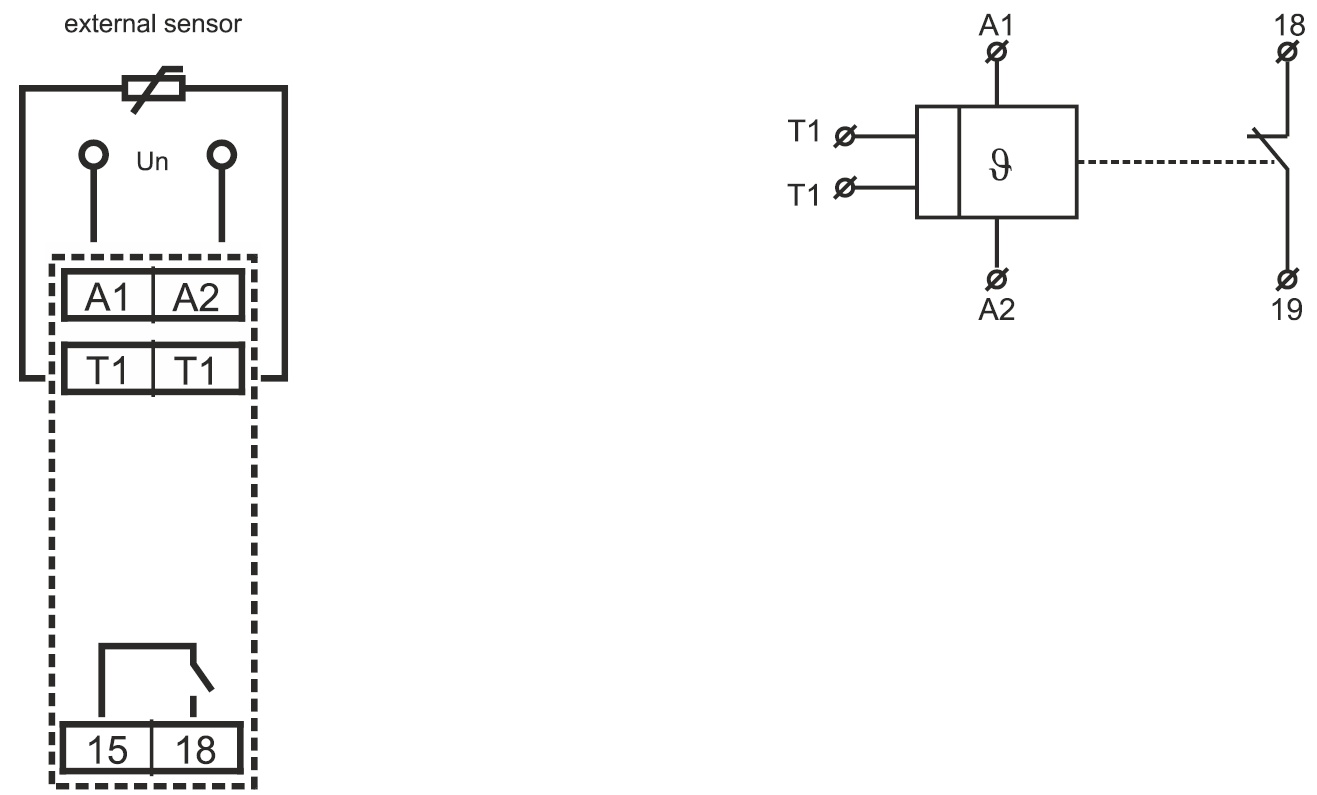

Connection

A1-A2 (galvanically unseparated)

breaking capacity

4000 VA / AC1, 300W DC

Sensor

termistor NTC 3m (6m, 12m available)

Operating Temperature

-20 … +55 °C

Storage Temperature

-30 … +70 °C

Contact

Normally closed or normally open adjustable

Sevice Life

> 100,000 cycles
