Type 6 „LM-Double“ - Resistance Heater

PDF
Description

Beschreibung

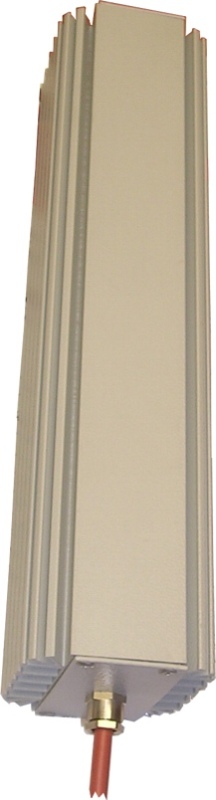

“LM-Double” is a professional switch-cabinet Heater with many advantages:

  • due to high performance ideal for big switch cabinets
  • very good heat emission by arrangement of the profile ribs on both sides
  • horizontal and vertically applicable
  • the unit is equipped with an overheating thermostat
  • high-quality cable glands made of nickel plated brass
  • also available as IP-65 Version
  • Performance: 140-250W



Weight: ca. 1,1kg
Protection class: IP 54
Connection: Cable 3x0,75mm²
Mounting: Clip for DIN rail EN 60715



Up to three thermostat types availiable:

  • Internal thermostat: on approx. 28°C off approx. 68°C
  • Overheating thermostat: surface temperature approx. 80°C
  • Without thermostat: Surface temperature approx. 110°C
