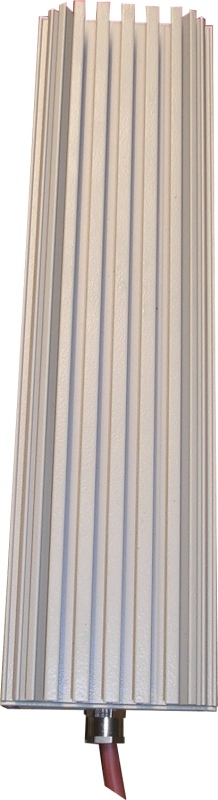

Type 4 „LM-Long“ - Resistance Heater

PDF
Description

Description

“LM-Long” is a professional switch-cabinet Heater with many advantages:

  • horizontal and vertically applicable
  • thermostatic regulated by internal thermostat
  • high-quality cable glands made of nickel plated brass
  • Performance: 125-375W



Weight: ca. 880g
Protection class: IP 54
Connection: Cable 3x0,75mm²
Mounting: Clip for DIN rail EN 60715



Up to three thermostat types availiable:

  • Internal thermostat: on approx. 28°C off approx. 68°C
  • Overheating thermostat: surface termperature approx. 80°C
  • Without thermostat: Surface temperature approx. 110°C
