Type 2 "LM-Standard“ - Resistance or PTC Heater

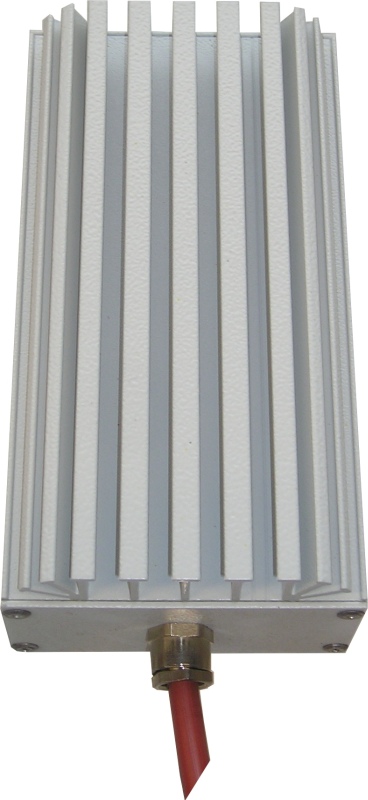

Hauptbild - Type 2

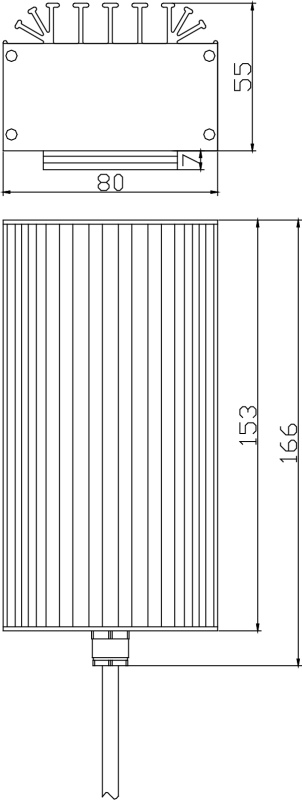

Dimensionen Typ 2
Properties
  • Compact design, ideal for small switch cabinets

  • Horizontal and vertical use

  • Thermostatically controlled by internal thermostat

  • High-quality cable strain relief made of nickel-plated brass

Description

Large temperature fluctuations can lead to condensation in switch cabinets and thus to corrosion problems and malfunctions. The use of control cabinet heaters minimises temperature fluctuations and counteracts condensation.
Heating type Resistor or PTC
Heating power 33 - 100 W

Technical Data

Thermostat variants

Internal thermostat: on approx. 28°C off approx. 68°C
Overheating thermostat: max. surface temperature approx. 80°C
without thermostat: max. surface temperature approx. 110°C

Weight

ca. 530 g

Protection class

IP 54

Connection

Cable 3 x 0,75 mm²

Mounting

DIN Rail EN 60715
