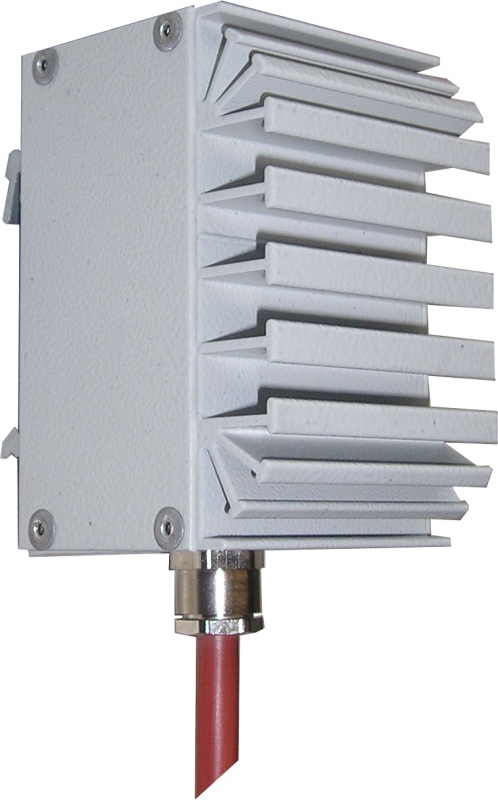

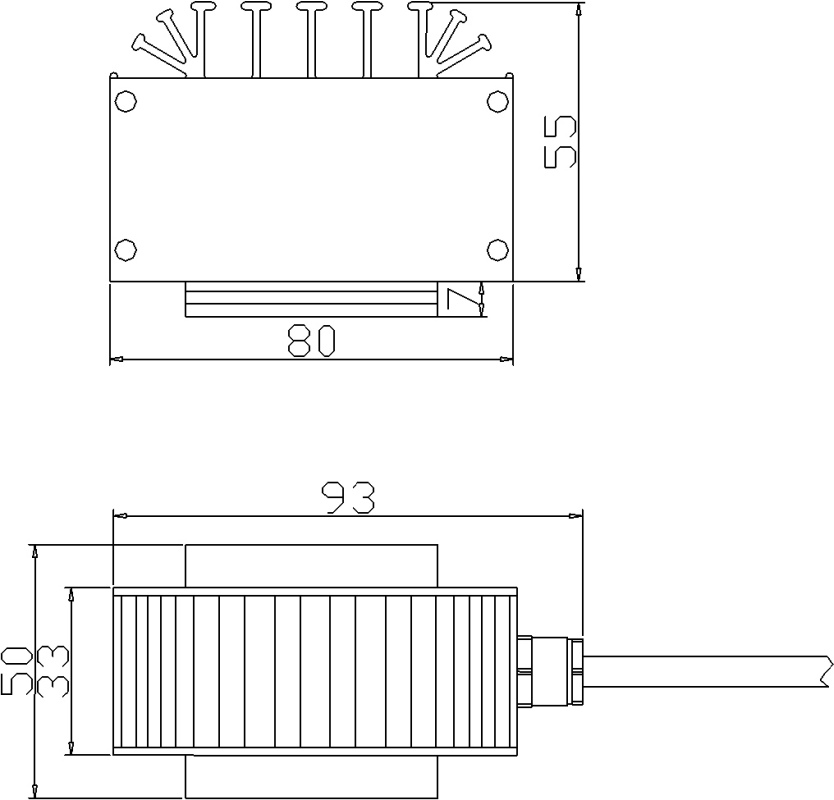

Type 1.1 „LM-Super-Small“ - Resistance or PTC Heater

PDF
Description

Description

"LM-Super-Small" is a professional switch-cabinet Heater with many advantages:

  • compact construction, thus ideal for small switch cabinets
  • horizontal and vertically applicable
  • thermostatic regulated by internal thermostat
  • high-quality cable glands made of nickel plated brass
  • available as PTC or Resistance Heater
  • Performance: 15 - 50W



Weight: ca. 230g
Protection class: IP 54
Connection: Cable 3x0,75mm²
Mounting: Clip for DIN rail EN 60715



Up to three thermostat types availiable:

  • Internal thermostat: on approx. 28°C off approx. 68°C
  • Overheating thermostat: surface termperature approx. 80°C
  • Without thermostat: Surface temperature approx. 110°C
