Hygrostat Type "HY/WE"

PDF
Description

Description

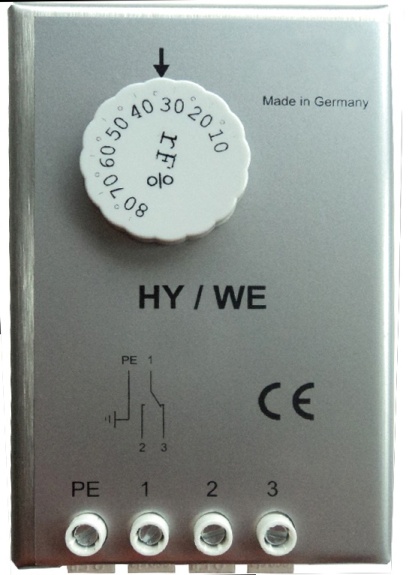

The Hygrostat “HY/WE” is an electromechanical regulator for relative humidity, which does not require any power supply. Electrical consumers can be directly connected to the switch contact.
The switch point setting (10% to 80 % rH) is done by a rotary switch.
At the end position, the switch is always closed or open, independent of the air humidity value.

Technical details

Voltage

24…240V AC/DC

Setting Range

10…80% rel. atmospheric humidity

Dimensions (LxWxH)

60 x 96 x 45 mm

Hysteresis

5% nominal, response time: 15 min.

Mounting

DIN rail EN 60715

Weight

ca. 300 g

Protection Type

IP 30

Operation Range

10…90 % rH, 10...40° C without condensation

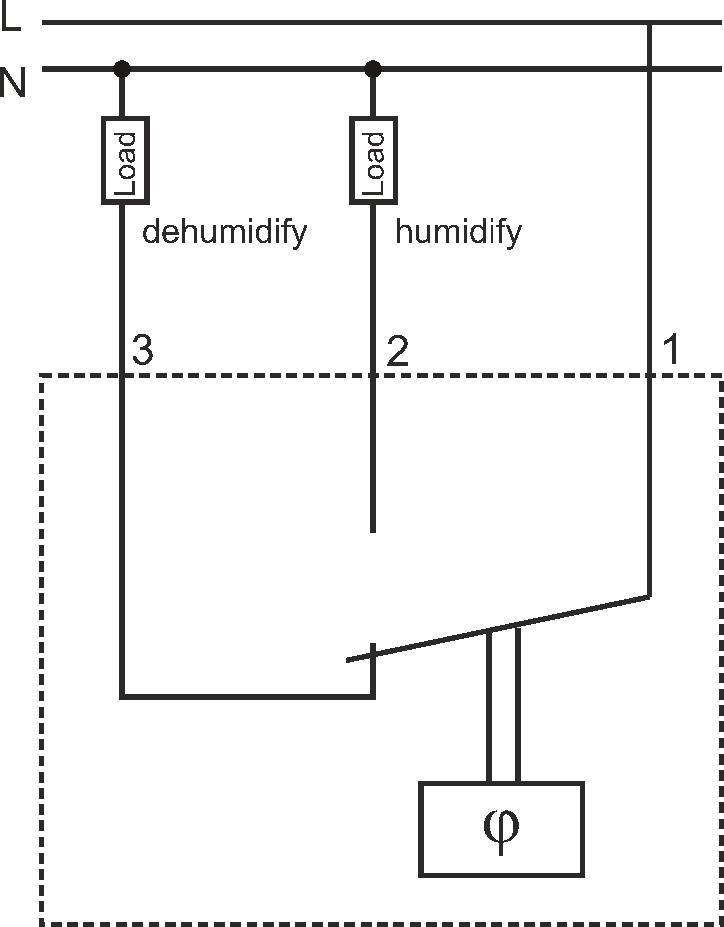

Connection

3 clamps clamping torque: 0.4 Nm

Sensor

polyamide band

Switching Current

120 V AC: 4,4 A
240 V AC: 2,2 A

Contact

change over switch
