PLS20-T - LED Switch Position Indicator

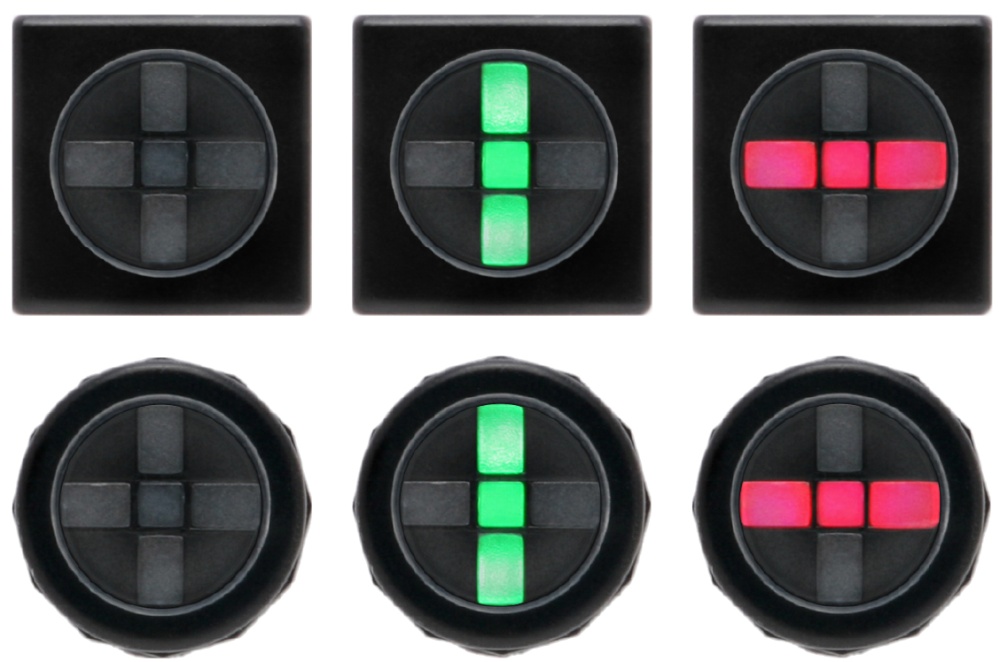

Hauptbild - PLS20-T - LED Switch Position Indicator

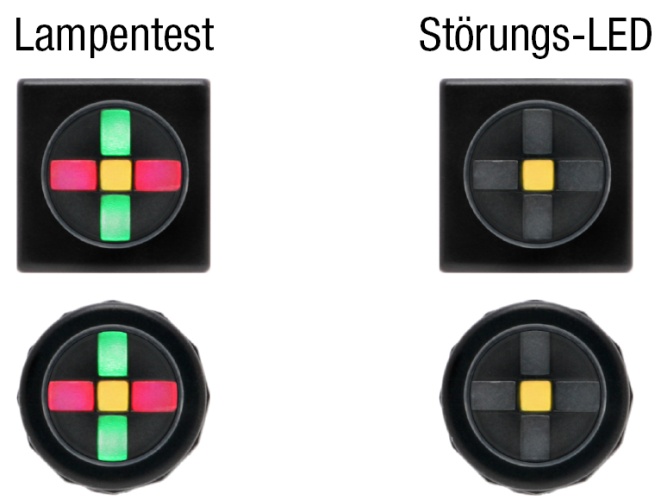

Lamptest and fault LED - PLS20-T - LED Switch Position Indicator

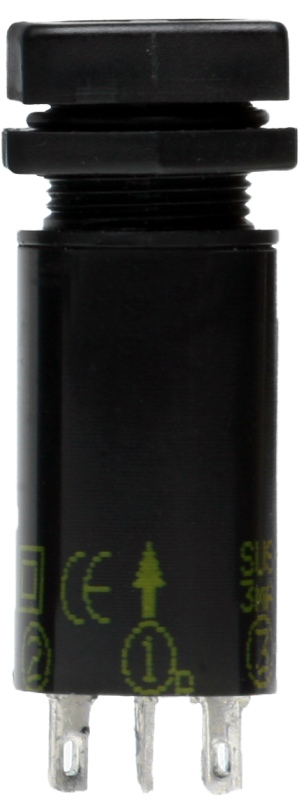

Side view of PLS20-T - PLS20-T - LED Switch Position Indicator

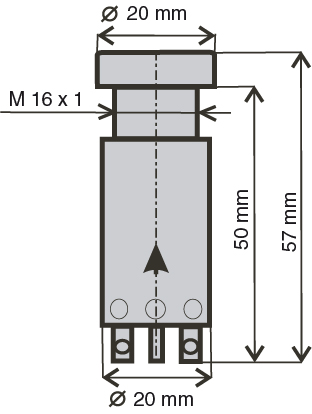

Dimensions of PLS20-T - PLS20-T - LED Switch Position Indicator
Properties
  • Front dimension 20 mm

  • Available with round or square front

  • With lamp test button input

  • Option of a third LED colour for the fault indication

Description

The LED switch position indicator PLS20-T has a front dimension of 20 mm, is used to indicate switch positions and has a connection for a lamp test button. Please specify the desired suppression of the inductive voltage in your order.
Operating voltage 12-230 VAC / 12-220 VDC
Rated current max. 20 mA
Protection class IP 65 / IP 20
Mounting hole: 16 mm
Hole spacing min. 30 mm
Connection 2.8 x 0.8 x 7.0 mm (flat plug connection)
Suppression of induced voltage 30 V / 60 V / 100 V / 120 V / higher on request
