PUGTT-MU - DC Voltage Transducer

PDF

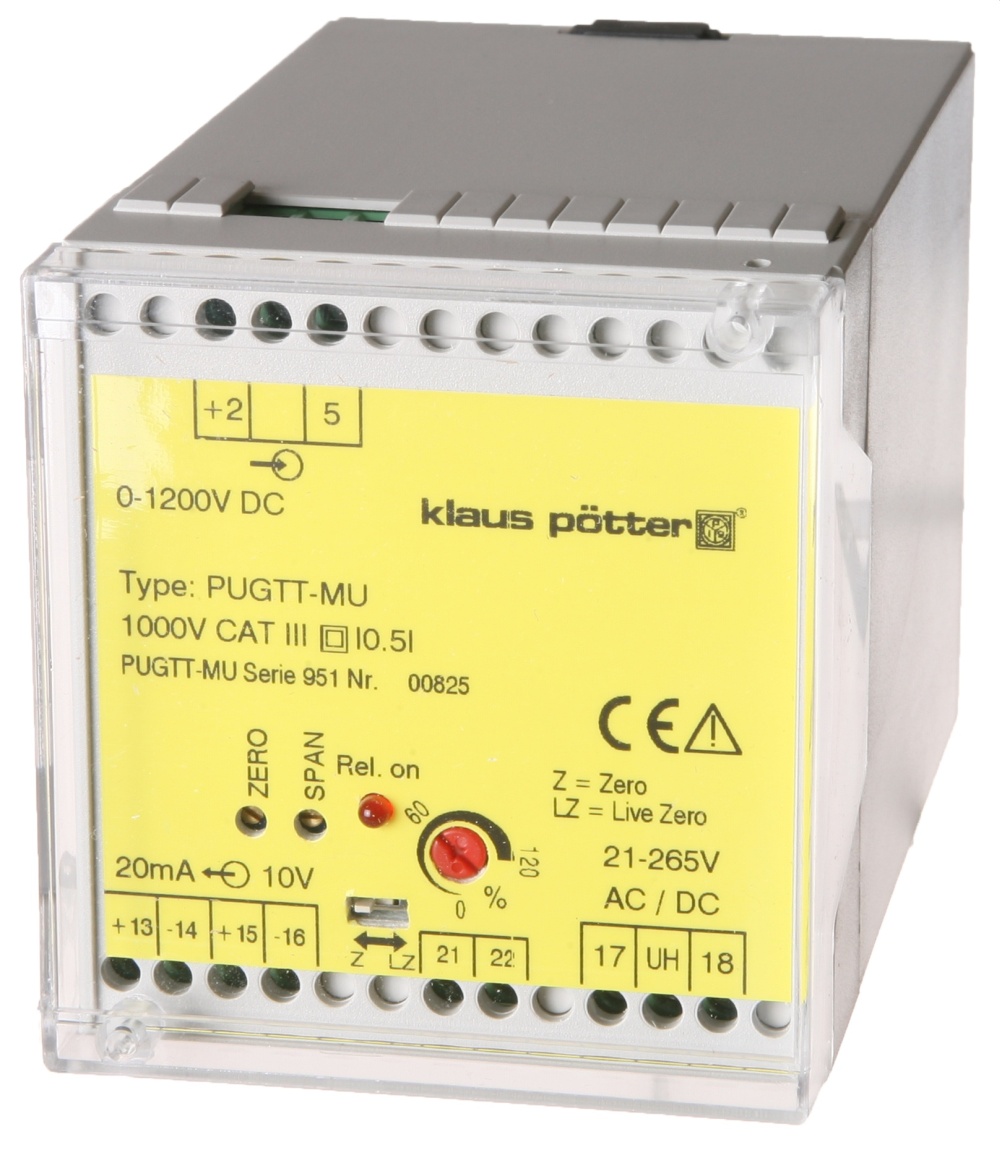

PUGTT-MU

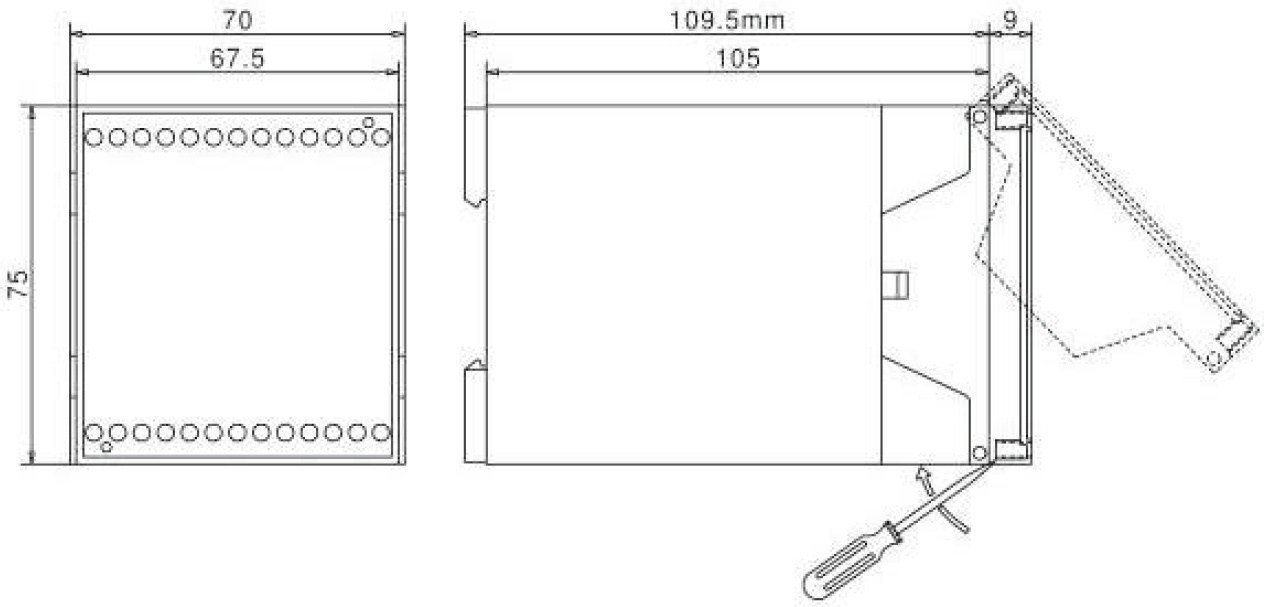

PUGTT-Dimensionen
Description

Features

Input voltage: 0-1000V, 0-1200V or 0-1500V (other values on request)
Output signal: 0-20mA / 0-10V / 4-20 mA / 2-10V
Supply voltage: 21-265 VAC+DC, 2 VA

Description

The measuring transducer PUGTT-MU is used to convert and galvanically isolate a DC voltage into an impressed DC current and DC voltage signal.
The calibrated double outputs are switchable between 0-20 mA and 0-10 V or 4-20 mA and 2-10 V. An integrated limit value monitoring serves to monitor the input signal.

Download

datasheet PUGTT-MU
