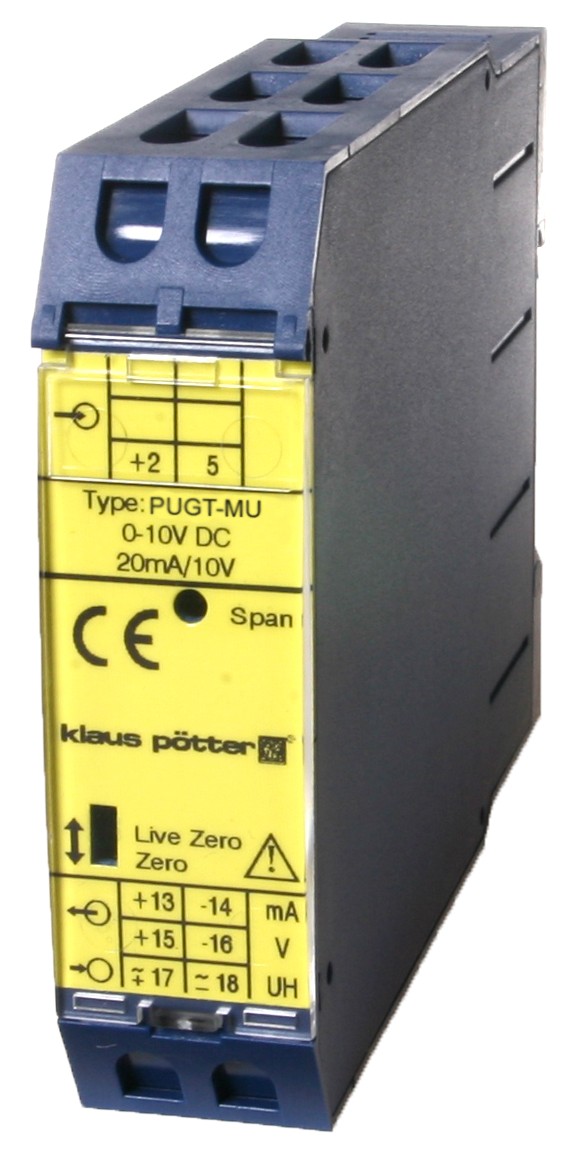

PUGT-MU - DC Voltage Transducer

PDF
Description

Features

Input voltage: 0-5 mV to 0-600 V
Output signal: 0-20 mA/0-500 Ohm load and 0-10 V max. 10 mA loadable as well as 4-20 mA/0-500 Ohm load and 2-10 V max. 10 mA loadable, switchable on the front, when using both outputs simultaneously, the voltage output may be loaded with max. 1 mA, Imax < 40 mA, Umax < 24 V
Supply voltage: 230 V AC ±20 %, 45-65 Hz, 2.5 VA

Description

The PUGT-MU measuring transducer is used to convert and isolate a DC voltage into an impressed DC current and DC voltage signal.
The calibrated double outputs are switchable between 0-20 mA and 0-10 V or 4-20 mA and 2-10 V.

Download

datasheet PUGT-MU
