EASK 81.4

PDF
Description

Description

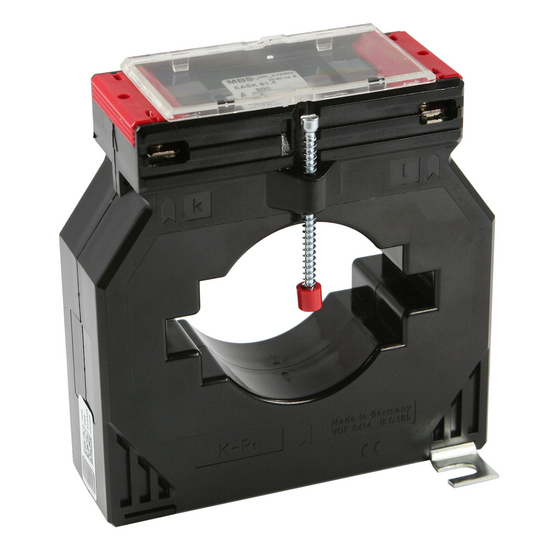

Plug-in current transformer for primary nominal currents from 400 A up to 1500 A, secondary nominal current 5 A or 1 A, accuracy class 0.2, 0.5s and 0.5, PTB Braunschweig certificated for tariff application.

Technical Data

  • Therm. nominal continuous current Icth: 1,2 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

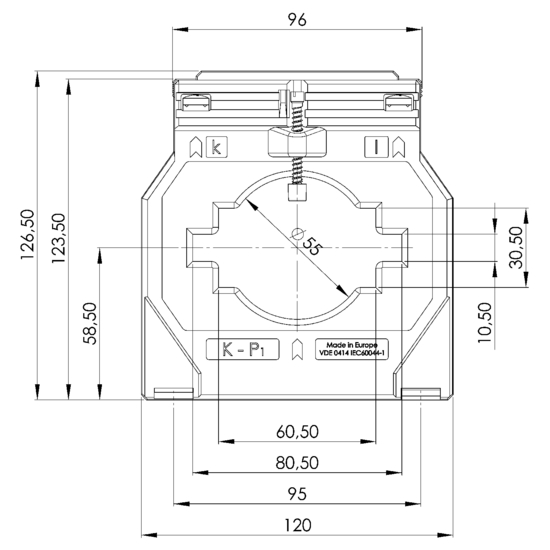

  • Bus bar 1: 80 x 10 mm
  • Bus bar 2: 60 x 30 mm
  • Bus bar 3: 2 x 60 x 10 mm
  • Round conductor: 55 mm

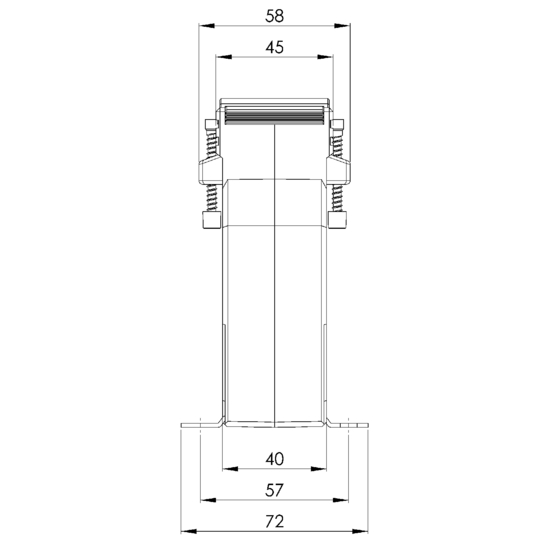

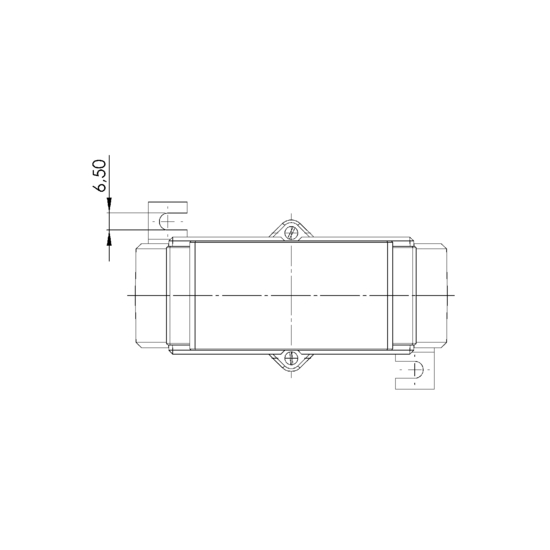

  • Width: 120 mm
  • Height: 126,5 mm
  • Depth: 58 mm
