EASK 41.4 100/5A 1,5VA Kl.0,2

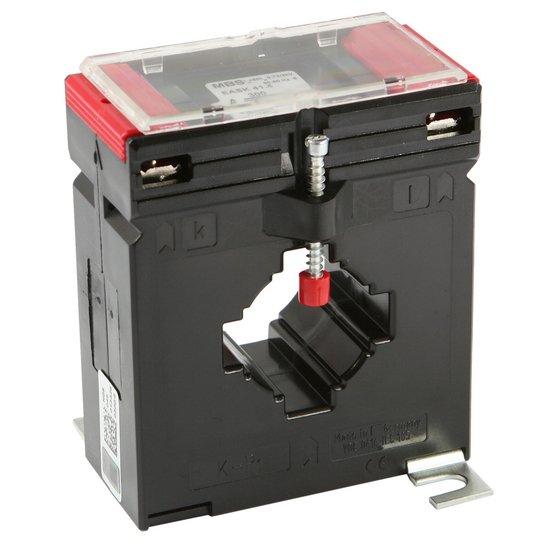

Wandler EASK 41.4 100/5A 1,5VA Kl.0,2

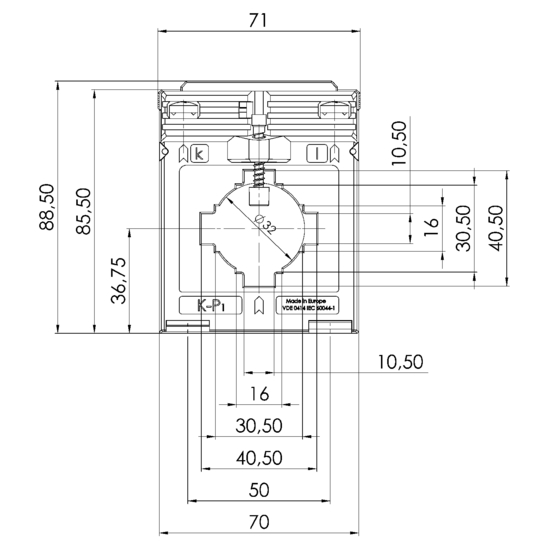

Frontview EASK 41.4 100/5A 1,5VA Kl.0,2

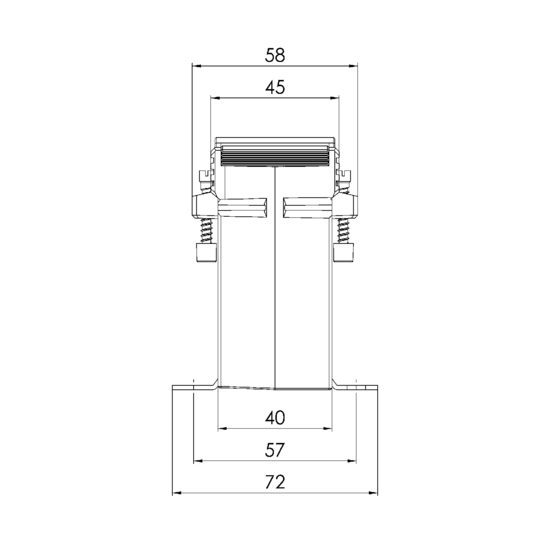

Sideview EASK 41.4 100/5A 1,5VA Kl.0,2

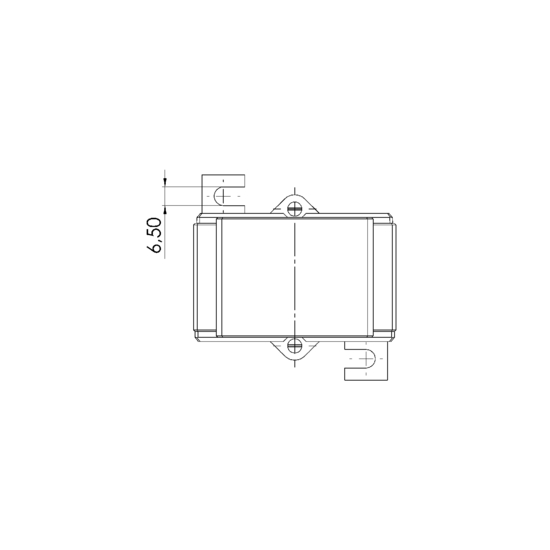

Topview EASK 41.4 100/5A 1,5VA Kl.0,2

Description

EASK Plug-in current transformer for primary nominal currents from 50 A to 3000 A, secondary nominal current 5 or 1 A, in classes 0.2, 0.5s and 0.5 with type approval for tariff application.
Model EASK 41.4 100/5A 1,5VA Kl.0,2
Part number 13511
Class 0,2
VA 1,5
Category Current transformers for billing measurement
Prim. Current 100
Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth
1,2 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
0,72 kV
Insulation Test Voltage
3 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
E
Bus Bar 1
40 x 10 mm
Bus Bar 2
2 x 30 x 5 mm
Round Conductor
32 mm
Width
71 mm
Height
85.5 mm
Depth
58 mm
