WSK 30

PDF
Description

Description

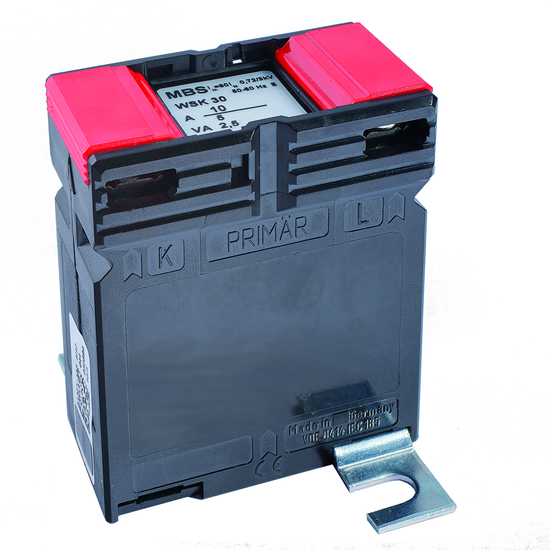

Wound current transformer for primary nominal currents from 1 A up to 20 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 0.5 and 1.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

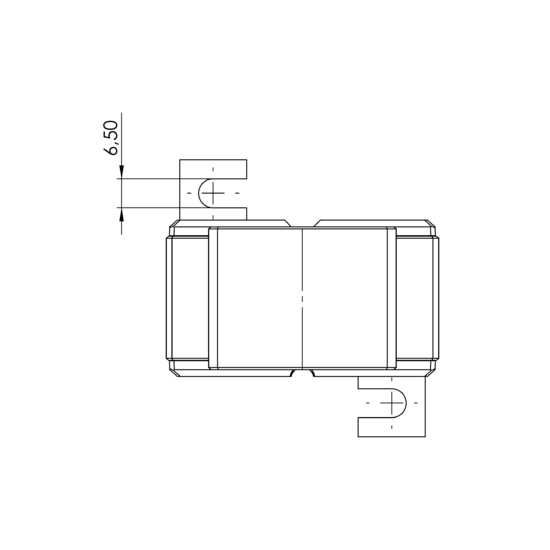

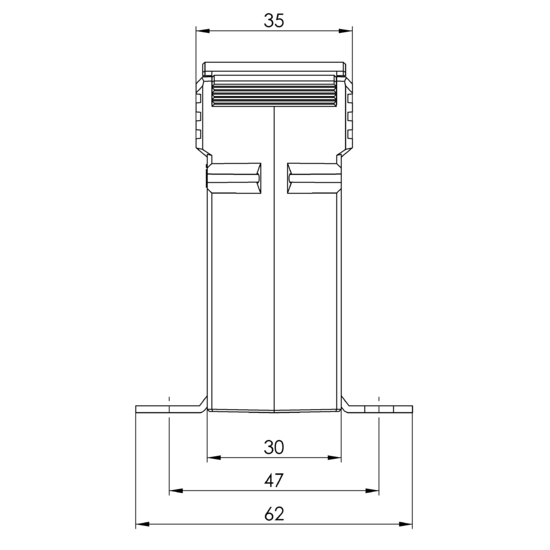

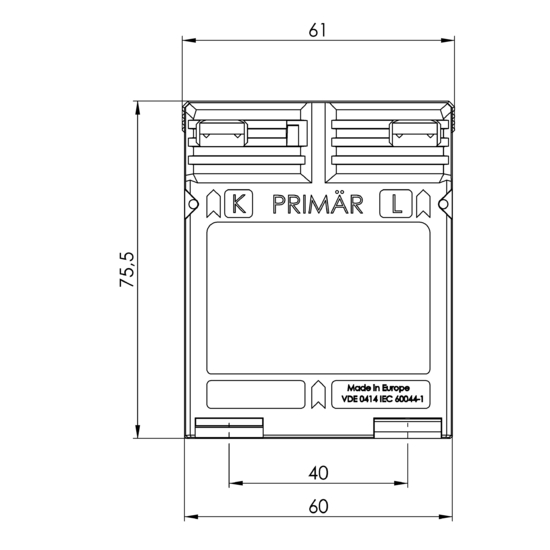

  • Width: 61 mm
  • Height: 75,5 mm
  • Depth: 35 mm



Description Type Name Type Number Primari Current Secondary Current VA Accuracy Class
WSK 30 1/5A 2,5VA Kl.1 WSK 30 1 5 2,5 1
WSK 30 1/5A 5VA Kl.1 WSK 30 1 5 5 1
WSK 30 2,5/5A 2,5VA Kl.1 WSK 30 2,5 5 2,5 1
WSK 30 2,5/5A 5VA Kl.1 WSK 30 2,5 5 5 1
WSK 30 5/5A 2,5VA Kl.1 WSK 30 5 5 2,5 1
WSK 30 5/5A 5VA Kl.1 WSK 30 5 5 5 1
WSK 30 10/5A 2,5VA Kl.1 WSK 30 10 5 2,5 1
WSK 30 10/5A 5VA Kl.1 WSK 30 10 5 5 1
WSK 30 15/5A 2,5VA Kl.1 WSK 30 15 5 2,5 1
WSK 30 15/5A 5VA Kl.1 WSK 30 15 5 5 1
WSK 30 20/5A 2,5VA Kl.1 WSK 30 20 5 2,5 1
WSK 30 20/5A 5VA Kl.1 WSK 30 20 5 5 1
WSK 30 1/1A 2,5VA Kl.1 WSK 30 1 1 2,5 1
WSK 30 1/1A 5VA Kl.1 WSK 30 1 1 5 1
WSK 30 2,5/1A 2,5VA Kl.1 WSK 30 2,5 1 2,5 1
WSK 30 2,5/1A 5VA Kl.1 WSK 30 2,5 1 5 1
WSK 30 5/1A 2,5VA Kl.1 WSK 30 5 1 2,5 1
WSK 30 5/1A 5VA Kl.1 WSK 30 5 1 5 1
WSK 30 10/1A 2,5VA Kl.1 WSK 30 10 1 2,5 1
WSK 30 10/1A 5VA Kl.1 WSK 30 10 1 5 1
WSK 30 15/1A 2,5VA Kl.1 WSK 30 15 1 2,5 1
WSK 30 15/1A 5VA Kl.1 WSK 30 15 1 5 1
WSK 30 20/1A 2,5VA Kl.1 WSK 30 20 1 2,5 1
WSK 30 20/1A 5VA Kl.1 WSK 30 20 1 5 1
