ASR 201.3

PDF

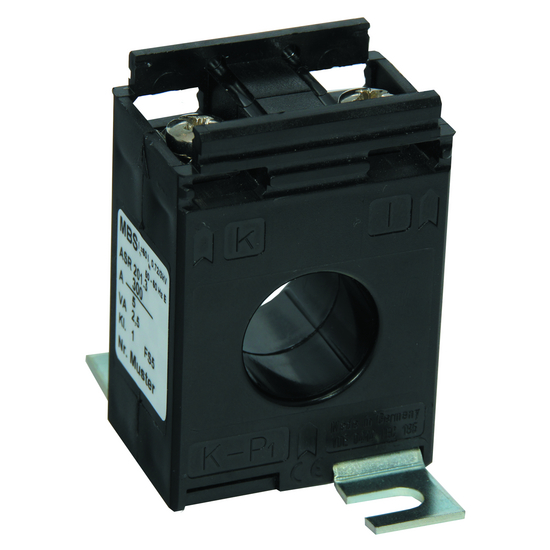

PB_ASR201.3_online-zoom.jpgASR 201.3
Description

Description

Tube current transformer for primary nominal currents from 60 A up to 300 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 3, 1 and 0.5.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

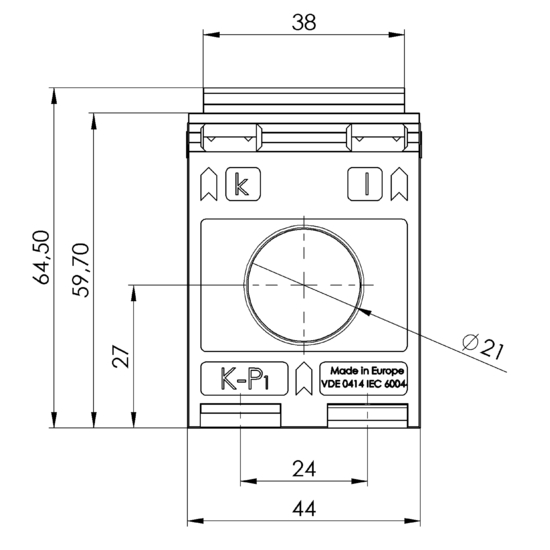

  • Round conductor: 21 mm
  • Width: 44 mm
  • Height: 64,5 mm

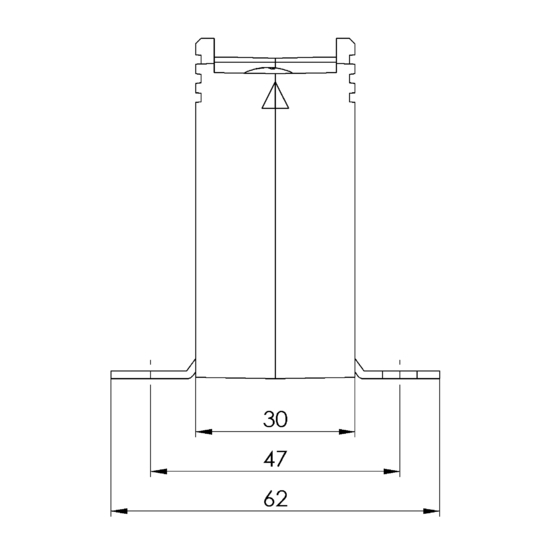

  • Depth: 30 mm
