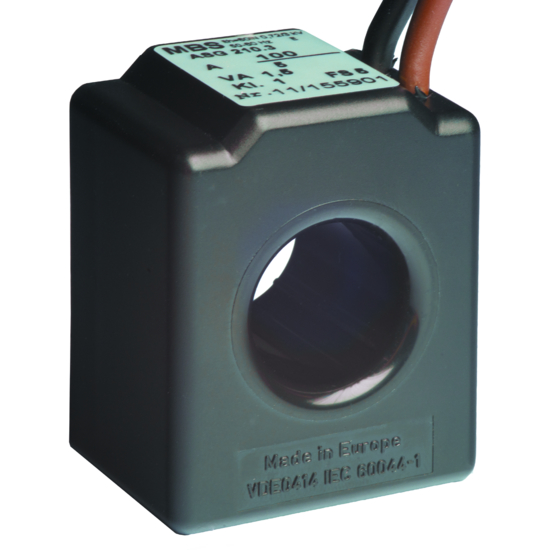

ASG 210.3


Description

Tube current transformer with a resind hardened measuring system for primary nominal currents from 60 A up to 300 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 1 with flexible 2,5 mm² secondary connection leads.

Technical Data

Therm. nominal continuous current I_cth: 1,0 x I_N
Therm. nominal short-time current I_th: 60 x I_N, 1 sec.
Max. operating voltage U_m: 0.72 kV
Isolation test voltage: 3 kV, U_eff, 50 Hz, 1 min.
Nominal rated frequency: 50...60 Hz
Isolation class: E

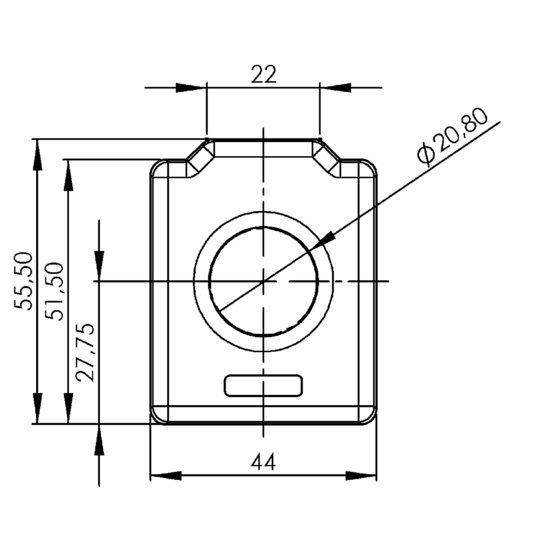

Round conductor: 20,8 mm
Width: 44 mm
Height: 55,5 mm
Depth: 30 mm
