Description

Description

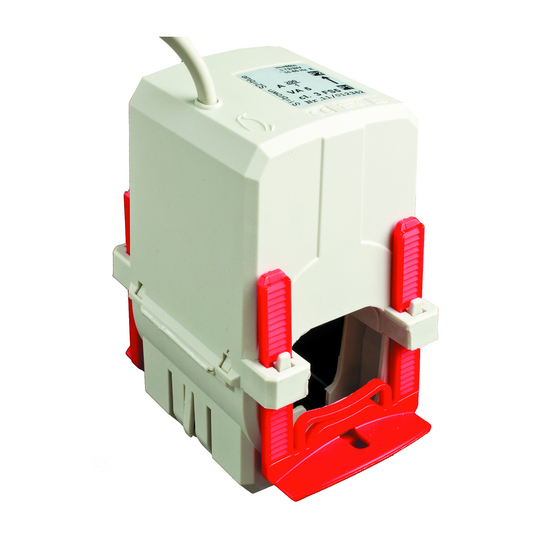

Compact split-core current transformer for primary nominal currents from 100 A up to 600 A, secondary nominal current 1 A and 5 A.
The PCW 32 with secondary 1A will be delivered with 2.5 m connection cable 2x0.75 mm².
The secondary 5 A version will be delivered with 0.5 m connection cable 2x1.5 mm². Optionally an output of 4...20mA or 0.333mV is possible

Technical Data

  • Therm. nominal continuous current Icth: 1,2 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E
  • Technical standards used DIN EN, 60044/1, VDE 0414 issue 1

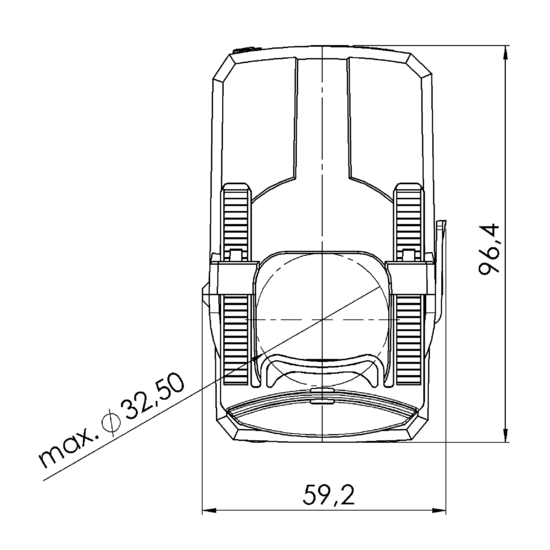

  • Round conductor: 32,5 mm

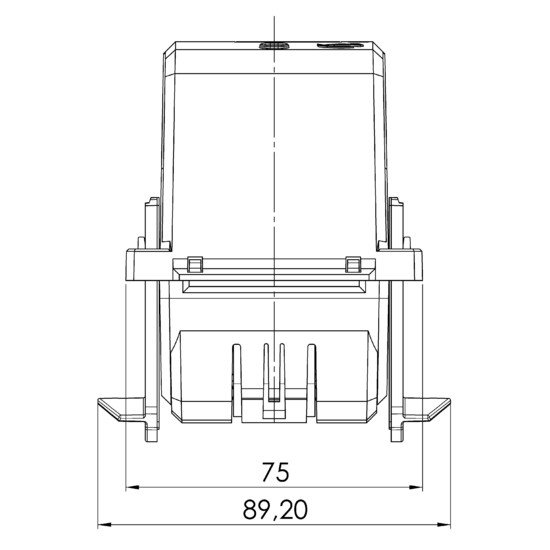

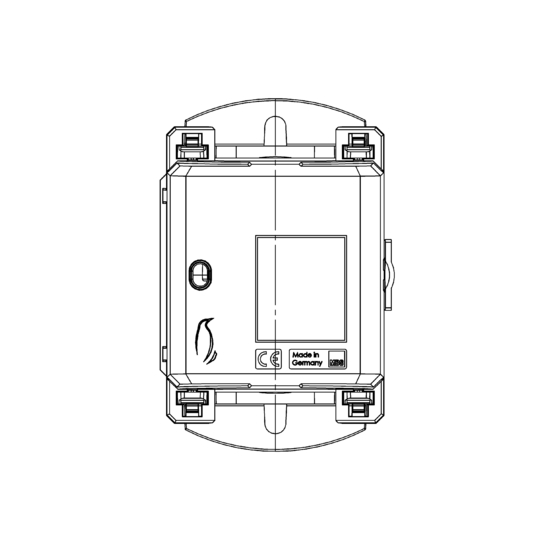

  • Width: 59,2 mm
  • Height: 101,2 mm
  • Depth: 90 mm
