ASK 231.5

PDF
Description

Description

Plug-in current transformer for primary nominal currents from 60 A up to 600 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 0.5 and 1.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E
  • Bus bar 1: 30 x 10 mm
  • Round conductor: 28 mm

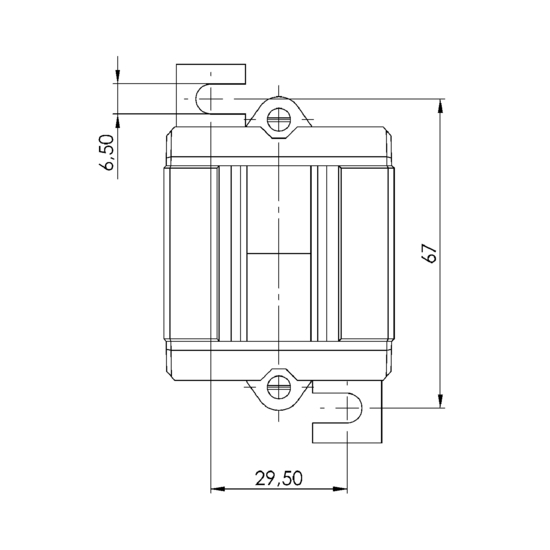

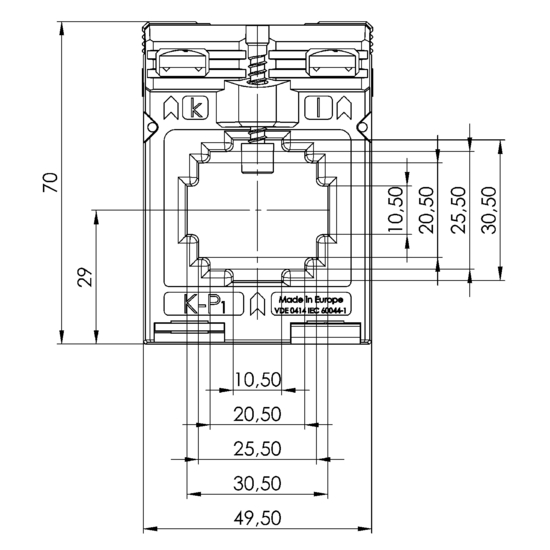

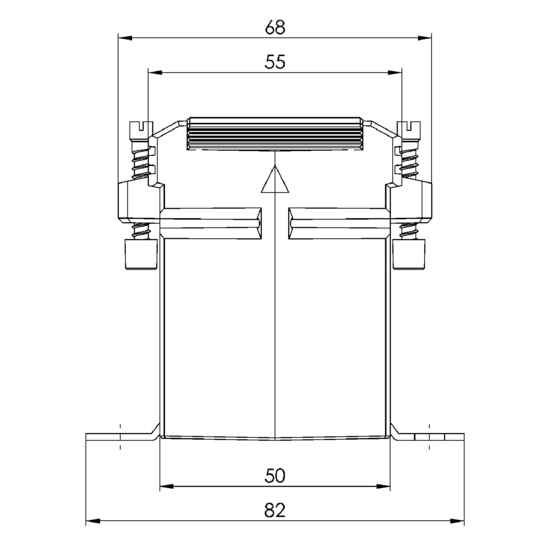

  • Width: 50 mm
  • Height: 70 mm
  • Depth: 68 mm



type description type name type number primary current secondary current VA accuracy
ASK 231.5 60/5A 1VA Kl.1 ASK 231.5 60 5 1 1
ASK 231.5 75/5A 1,25VA Kl.1 ASK 231.5 75 5 1,25 1
ASK 231.5 80/5A 1,25VA Kl.1 ASK 231.5 80 5 1,25 1
ASK 231.5 100/5A 1,5VA Kl.1 ASK 231.5 100 5 1,5 1
ASK 231.5 125/5A 1,5VA Kl.1 ASK 231.5 125 5 1,5 1
ASK 231.5 125/5A 2,5VA Kl.1 ASK 231.5 125 5 2,5 1
ASK 231.5 150/5A 1,5VA Kl.1 ASK 231.5 150 5 1,5 1
ASK 231.5 150/5A 2,5VA Kl.1 ASK 231.5 150 5 2,5 1
ASK 231.5 200/5A 2,5VA Kl.1 ASK 231.5 200 5 2,5 1
ASK 231.5 250/5A 2,5VA Kl.1 ASK 231.5 250 5 2,5 1
ASK 231.5 300/5A 2,5VA Kl.1 ASK 231.5 300 5 2,5 1
ASK 231.5 300/5A 5VA Kl.1 ASK 231.5 300 5 5 1
ASK 231.5 400/5A 2,5VA Kl.1 ASK 231.5 400 5 2,5 1
ASK 231.5 400/5A 5VA Kl.1 ASK 231.5 400 5 5 1
ASK 231.5 500/5A 2,5VA Kl.1 ASK 231.5 500 5 2,5 1
ASK 231.5 500/5A 5VA Kl.1 ASK 231.5 500 5 5 1
ASK 231.5 60/1A 1VA Kl.1 ASK 231.5 60 1 1 1
ASK 231.5 75/1A 1,25VA Kl.1 ASK 231.5 75 1 1,25 1
ASK 231.5 80/1A 1,25VA Kl.1 ASK 231.5 80 1 1,25 1
ASK 231.5 100/1A 1,5VA Kl.1 ASK 231.5 100 1 1,5 1
ASK 231.5 125/1A 1,5VA Kl.1 ASK 231.5 125 1 1,5 1
ASK 231.5 125/1A 2,5VA Kl.1 ASK 231.5 125 1 2,5 1
ASK 231.5 150/1A 1,5VA Kl.1 ASK 231.5 150 1 1,5 1
ASK 231.5 150/1A 2,5VA Kl.1 ASK 231.5 150 1 2,5 1
ASK 231.5 200/1A 2,5VA Kl.1 ASK 231.5 200 1 2,5 1
ASK 231.5 250/1A 2,5VA Kl.1 ASK 231.5 250 1 2,5 1
ASK 231.5 250/1A 5VA Kl.1 ASK 231.5 250 1 5 1
ASK 231.5 300/1A 2,5VA Kl.1 ASK 231.5 300 1 2,5 1
ASK 231.5 300/1A 5VA Kl.1 ASK 231.5 300 1 5 1
ASK 231.5 400/1A 2,5VA Kl.1 ASK 231.5 400 1 2,5 1
ASK 231.5 400/1A 5VA Kl.1 ASK 231.5 400 1 5 1
ASK 231.5 500/1A 2,5VA Kl.1 ASK 231.5 500 1 2,5 1
ASK 231.5 500/1A 5VA Kl.1 ASK 231.5 500 1 5 1
