ASK 205.5

PDF
Description

Description

Plug-in current transformers with partly resin hardened measuring system and a newly developed variable mounting system for primary nominal currents from 1200 A up to 6000 A, with a secondary nominal current of 5 A or 1 A (optional 2 A) accuracy classes 0.2, 0.5 and 1 (protection classes upon request).

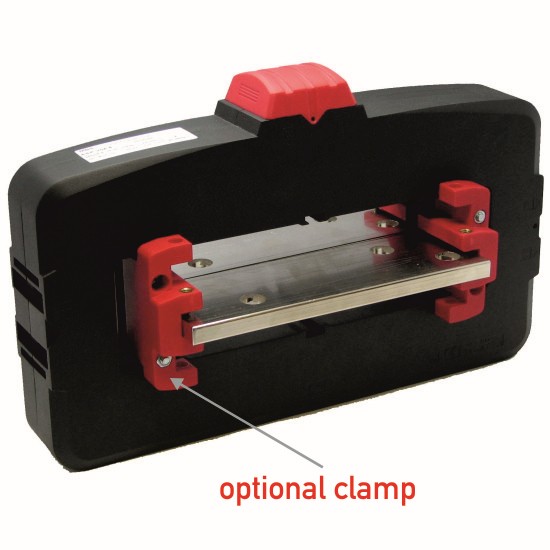

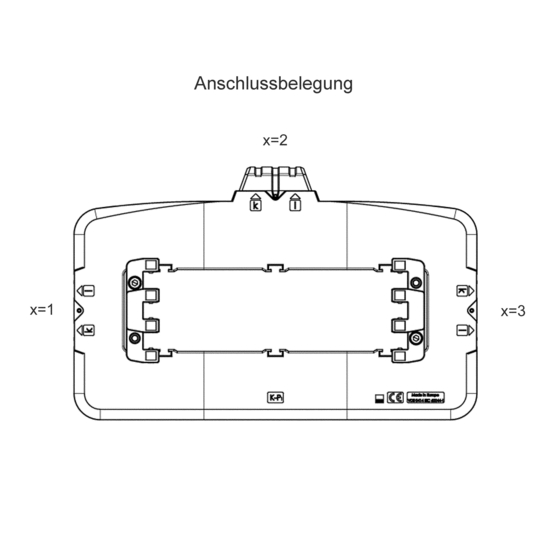

Time saving connection in view of 3 variables positions of the secondary terminal connections (please state when ordering).

Technical Data

  • Therm. nominal continuous current Icth: 1,2 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72kV (with clamping claw 1.2kV)
  • Isolation test voltage: 3 kV (with clamping claw 6 kV), Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: F

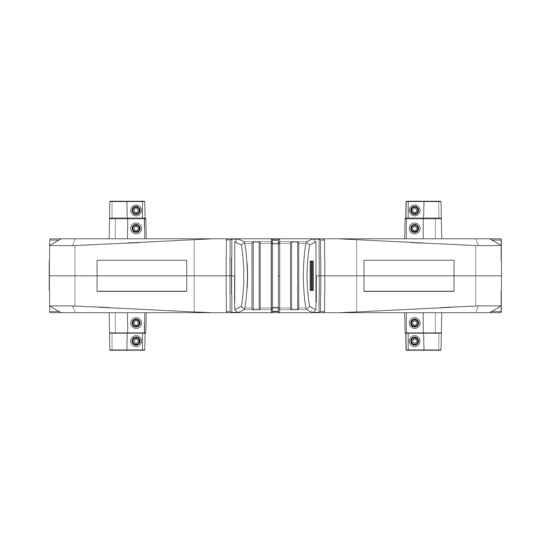

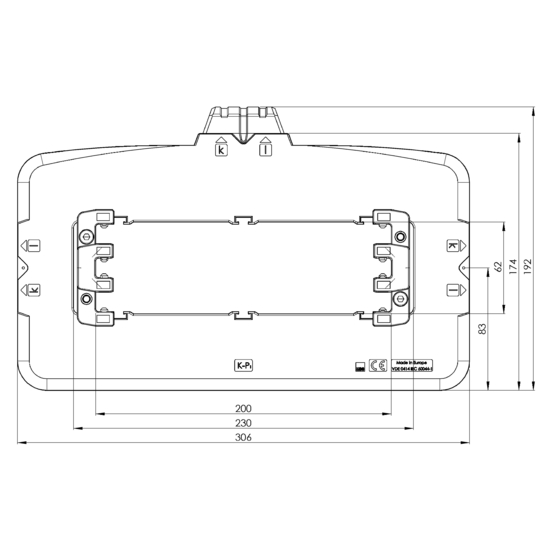

  • Bus bar 1: 230 x 60 mm
  • Bus bar 2: 3 x 200 x 10 mm
  • Width: 306 mm
  • Height: 192 mm

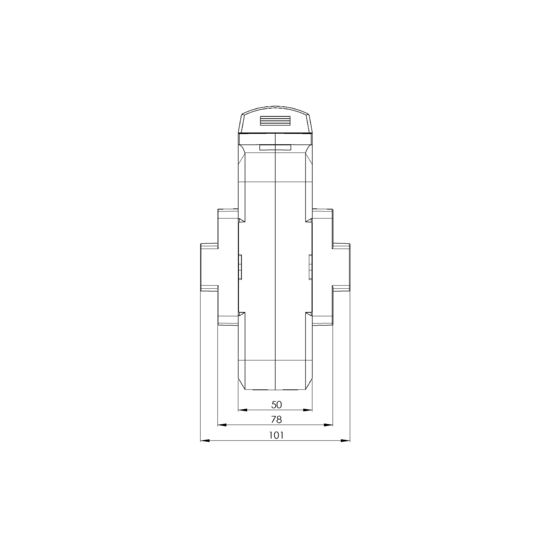

  • Depth: 100 mm



type description type name type number primary current secondary current VA accuracy
ASK 205.5 1200/5A 5VA Kl.1 ASK 205.5 1200 5 5 1
ASK 205.5 1200/5A 10VA Kl.1 ASK 205.5 1200 5 10 1
ASK 205.5 1200/5A 15VA Kl.1 ASK 205.5 1200 5 15 1
ASK 205.5 1250/5A 5VA Kl.1 ASK 205.5 1250 5 5 1
ASK 205.5 1250/5A 10VA Kl.1 ASK 205.5 1250 5 10 1
ASK 205.5 1250/5A 15VA Kl.1 ASK 205.5 1250 5 15 1
ASK 205.5 1500/5A 5VA Kl.1 ASK 205.5 1500 5 5 1
ASK 205.5 1500/5VA 10VA Kl.1 ASK 205.5 1500 5 10 1
ASK 205.5 1500/5A 15VA Kl.1 ASK 205.5 1500 5 15 1
ASK 205.5 1500/5A 30VA Kl.1 ASK 205.5 1500 5 30 1
ASK 205.5 1600/5A 5VA Kl.1 ASK 205.5 1600 5 5 1
ASK 205.5 1600/5A 10VA Kl.1 ASK 205.5 1600 5 10 1
ASK 205.5 1600/5A 15VA Kl.1 ASK 205.5 1600 5 15 1
ASK 205.5 1600/5A 30VA Kl.1 ASK 205.5 1600 5 30 1
ASK 205.5 2000/5A 10VA Kl.1 ASK 205.5 2000 5 10 1
ASK 205.5 2000/5A 15VA Kl.1 ASK 205.5 2000 5 15 1
ASK 205.5 2000/5A 30VA Kl.1 ASK 205.5 2000 5 30 1
ASK 205.5 2500/5A 10VA Kl.1 ASK 205.5 2500 5 10 1
ASK 205.5 2500/5A 15VA Kl.1 ASK 205.5 2500 5 15 1
ASK 205.5 2500/5A 30VA Kl.1 ASK 205.5 2500 5 30 1
ASK 205.5 3000/5A 10VA Kl.1 ASK 205.5 3000 5 10 1
ASK 205.5 3000/5A 15VA Kl.1 ASK 205.5 3000 5 15 1
ASK 205.5 3000/5A 30VA Kl.1 ASK 205.5 3000 5 30 1
ASK 205.5 3000/5A 45VA Kl.1 ASK 205.5 3000 5 45 1
ASK 205.5 4000/5A 15VA Kl.1 ASK 205.5 4000 5 15 1
ASK 205.5 4000/5A 30VA Kl.1 ASK 205.5 4000 5 30 1
ASK 205.5 4000/5A 60VA Kl.1 ASK 205.5 4000 5 60 1
ASK 205.5 5000/5A 15VA Kl.1 ASK 205.5 5000 5 15 1
ASK 205.5 5000/5A 30VA Kl.1 ASK 205.5 5000 5 30 1
ASK 205.5 5000/5A 60VA Kl.1 ASK 205.5 5000 5 60 1
ASK 205.5 1200/1A 5VA Kl.1 ASK 205.5 1200 1 5 1
ASK 205.5 1200/1A 10VA Kl.1 ASK 205.5 1200 1 10 1
ASK 205.5 1200/1A 15VA Kl.1 ASK 205.5 1200 1 15 1
ASK 205.5 1250/1A 5VA Kl.1 ASK 205.5 1250 1 5 1
ASK 205.5 1250/1A 10VA Kl.1 ASK 205.5 1250 1 10 1
ASK 205.5 1250/1A 15VA Kl.1 ASK 205.5 1250 1 15 1
ASK 205.5 1500/1A 5VA Kl.1 ASK 205.5 1500 1 5 1
ASK 205.5 1500/1A 10VA Kl.1 ASK 205.5 1500 1 10 1
ASK 205.5 1500/1A 15VA Kl.1 ASK 205.5 1500 1 15 1
ASK 205.5 1500/1A 30VA Kl.1 ASK 205.5 1500 1 30 1
ASK 205.5 1600/1A 10VA Kl.1 ASK 205.5 1600 1 10 1
ASK 205.5 1600/1A 15VA Kl.1 ASK 205.5 1600 1 15 1
ASK 205.5 1600/1A 30VA Kl.1 ASK 205.5 1600 1 30 1
ASK 205.5 2000/1A 10VA Kl.1 ASK 205.5 2000 1 10 1
ASK 205.5 2000/1A 15VA Kl.1 ASK 205.5 2000 1 15 1
ASK 205.5 2000/1A 30VA Kl.1 ASK 205.5 2000 1 30 1
ASK 205.5 2500/1A 10VA Kl.1 ASK 205.5 2500 1 10 1
ASK 205.5 2500/1A 15VA Kl.1 ASK 205.5 2500 1 15 1
ASK 205.5 2500/1A 30VA Kl.1 ASK 205.5 2500 1 30 1
ASK 205.5 3000/1A 10VA Kl.1 ASK 205.5 3000 1 10 1
ASK 205.5 3000/1A 15VA Kl.1 ASK 205.5 3000 1 15 1
ASK 205.5 3000/1A 30VA Kl.1 ASK 205.5 3000 1 30 1
ASK 205.5 3000/1A 45VA Kl.1 ASK 205.5 3000 1 45 1
ASK 205.5 4000/1A 15VA Kl.1 ASK 205.5 4000 1 15 1
ASK 205.5 4000/1A 30VA Kl.1 ASK 205.5 4000 1 30 1
ASK 205.5 4000/1A 60VA Kl.1 ASK 205.5 4000 1 60 1
ASK 205.5 5000/1A 15VA Kl.1 ASK 205.5 5000 1 15 1
ASK 205.5 5000/1A 30VA Kl.1 ASK 205.5 5000 1 30 1
ASK 205.5 5000/1A 60VA Kl.1 ASK 205.5 5000 1 60 1
