ASK 128.4

PDF
Description

Description

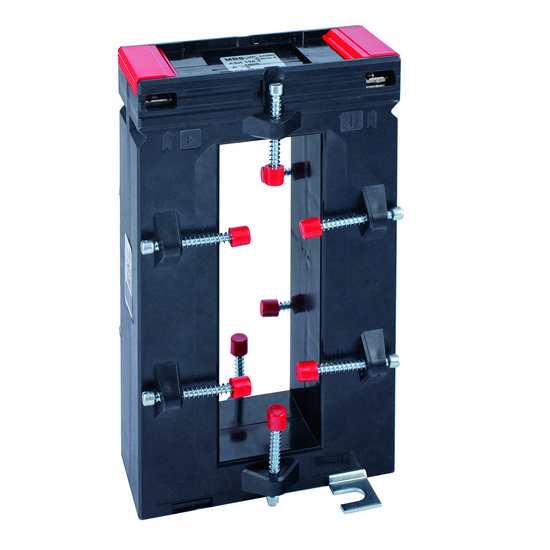

Plug-in current transformer for primary nominal currents from 400 A up to 2500 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 0.5 and 1.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

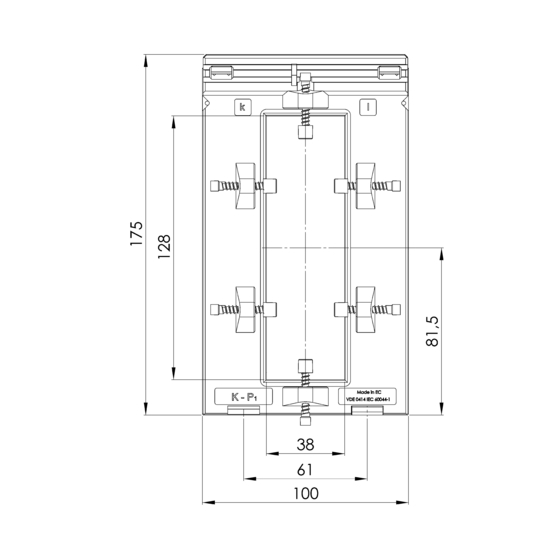

  • Bus bar 1: 128 x 38 mm
  • Round conductor: 38 mm
  • Width: 100 mm
  • Height: 175 mm

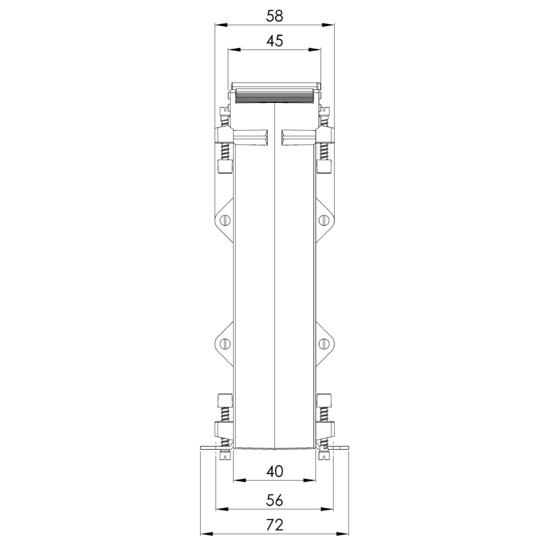

  • Depth: 58 mm



type description type name type number primary current secondary current VA accuracy
ASK 128.4 400/5A 2,5VA Kl.1 ASK 128.4 400 5 2,5 1
ASK 128.4 400/5A 5VA Kl.1 ASK 128.4 400 5 5 1
ASK 128.4 500/5A 2,5VA Kl.1 ASK 128.4 500 5 2,5 1
ASK 128.4 500/5A 5VA Kl.1 ASK 128.4 500 5 5 1
ASK 128.4 600/5A 2,5VA Kl.1 ASK 128.4 600 5 2,5 1
ASK 128.4 600/5A 5VA Kl.1 ASK 128.4 600 5 5 1
ASK 128.4 750/5A 2,5VA Kl.1 ASK 128.4 750 5 2,5 1
ASK 128.4 750/5A 5VA Kl.1 ASK 128.4 750 5 5 1
ASK 128.4 800/5A 5VA Kl.1 ASK 128.4 800 5 5 1
ASK 128.4 800/5A 10VA Kl.1 ASK 128.4 800 5 10 1
ASK 128.4 1000/5A 10VA Kl.1 ASK 128.4 1000 5 10 1
ASK 128.4 1000/5A 15VA Kl.1 ASK 128.4 1000 5 15 1
ASK 128.4 1200/5A 10VA Kl.1 ASK 128.4 1200 5 10 1
ASK 128.4 1200/5A 15VA Kl.1 ASK 128.4 1200 5 15 1
ASK 128.4 1250/5A 10VA Kl.1 ASK 128.4 1250 5 10 1
ASK 128.4 1250/5A 15VA Kl.1 ASK 128.4 1250 5 15 1
ASK 128.4 1500/5A 15VA Kl.1 ASK 128.4 1500 5 15 1
ASK 128.4 1500/5A 30VA Kl.1 ASK 128.4 1500 5 30 1
ASK 128.4 2000/5A 15VA Kl.1 ASK 128.4 2000 5 15 1
ASK 128.4 2000/5A 30VA Kl.1 ASK 128.4 2000 5 30 1
ASK 128.4 2500/5A 15VA Kl.1 ASK 128.4 2500 5 15 1
ASK 128.4 2500/5A 30VA Kl.1 ASK 128.4 2500 5 30 1
ASK 128.4 400/1A 2,5VA Kl.1 ASK 128.4 400 1 2,5 1
ASK 128.4 400/1A 5VA Kl.1 ASK 128.4 400 1 5 1
ASK 128.4 500/1A 2,5VA Kl.1 ASK 128.4 500 1 2,5 1
ASK 128.4 500/1A 5VA Kl.1 ASK 128.4 500 1 5 1
ASK 128.4 600/1A 2,5VA Kl.1 ASK 128.4 600 1 2,5 1
ASK 128.4 600/1A 5VA Kl.1 ASK 128.4 600 1 5 1
ASK 128.4 750/1A 2,5VA Kl.1 ASK 128.4 750 1 2,5 1
ASK 128.4 750/1A 5VA Kl.1 ASK 128.4 750 1 5 1
ASK 128.4 800/1A 5VA Kl.1 ASK 128.4 800 1 5 1
ASK 128.4 800/1A 10VA Kl.1 ASK 128.4 800 1 10 1
ASK 128.4 1000/1A 10VA Kl.1 ASK 128.4 1000 1 10 1
ASK 128.4 1000/1A 15VA Kl.1 ASK 128.4 1000 1 15 1
ASK 128.4 1200/1A 10VA Kl.1 ASK 128.4 1200 1 10 1
ASK 128.4 1200/1A 15VA Kl.1 ASK 128.4 1200 1 15 1
ASK 128.4 1250/1A 10VA Kl.1 ASK 128.4 1250 1 10 1
ASK 128.4 1250/1A 15VA Kl.1 ASK 128.4 1250 1 15 1
ASK 128.4 1500/1A 15VA Kl.1 ASK 128.4 1500 1 15 1
ASK 128.4 1500/1A 30VA Kl.1 ASK 128.4 1500 1 30 1
ASK 128.4 2000/1A 15VA Kl.1 ASK 128.4 2000 1 15 1
ASK 128.4 2000/1A 30VA Kl.1 ASK 128.4 2000 1 30 1
ASK 128.4 2500/1A 15VA Kl.1 ASK 128.4 2500 1 15 1
ASK 128.4 2500/1A 30VA Kl.1 ASK 128.4 2500 1 30 1
