Back to: Plug-in Current Transformer

ASK 123.3

PDF
Description

Description

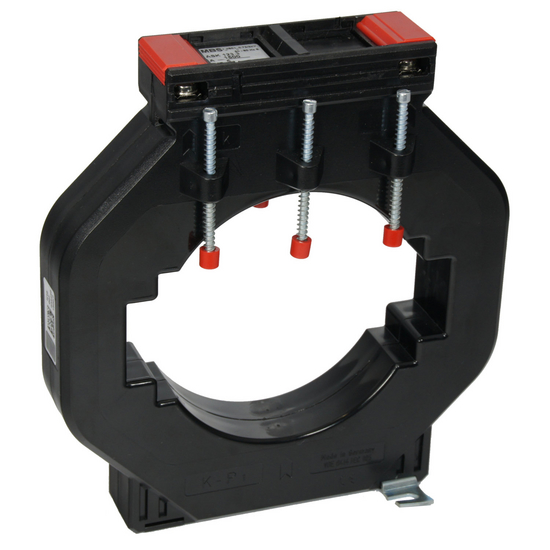

Plug-in current transformer for primary nominal currents from 1000 A up to 3000 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 0.2s, 0.5 and 1 (optional in class 0.2 and 0.5s).

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

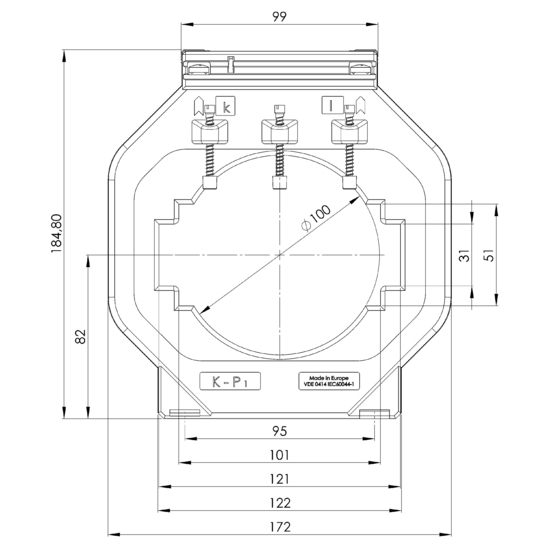

  • Bus bar 1: 123 x 30 mm
  • Bus bar 2: 3 x 100 x 10 mm
  • Round conductor: 100 mm

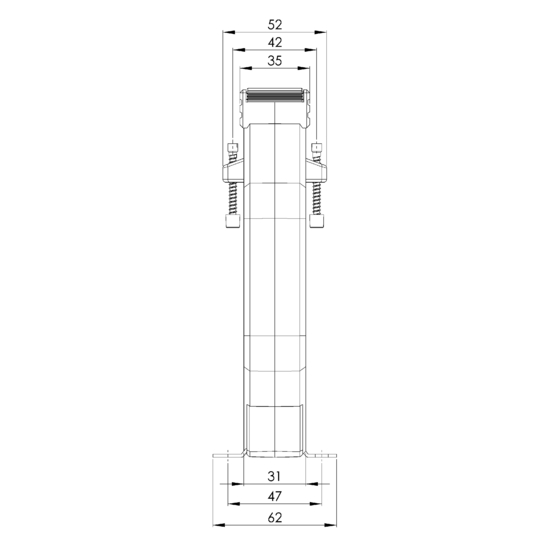

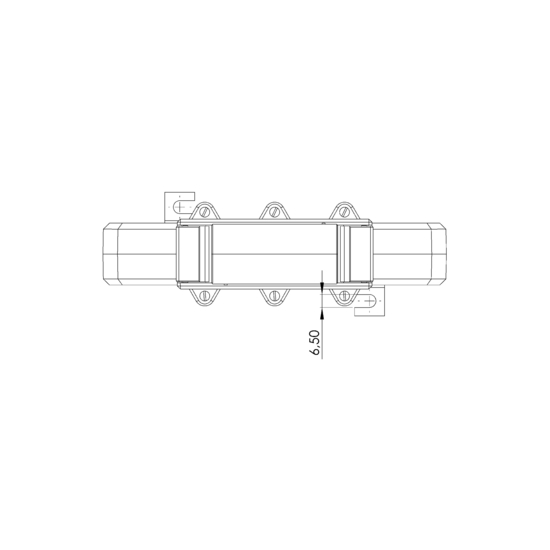

  • Width: 172 mm
  • Height: 184,8 mm
  • Depth: 52 mm



type description type name type number primary current secondary current VA accuracy
ASK 123.3 1000/5A 5VA Kl.1 ASK 123.3 1000 5 5 1
ASK 123.3 1000/5A 10VA Kl.1 ASK 123.3 1000 5 10 1
ASK 123.3 1200/5A 5VA Kl.1 ASK 123.3 1200 5 5 1
ASK 123.3 1200/5A 10VA Kl.1 ASK 123.3 1200 5 10 1
ASK 123.3 1200/5A 15VA Kl.1 ASK 123.3 1200 5 15 1
ASK 123.3 1250/5A 5VA Kl.1 ASK 123.3 1250 5 5 1
ASK 123.3 1250/5A 10VA Kl.1 ASK 123.3 1250 5 10 1
ASK 123.3 1250/5A 15VA Kl.1 ASK 123.3 1250 5 15 1
ASK 123.3 1500/5A 5VA Kl.1 ASK 123.3 1500 5 5 1
ASK 123.3 1500/5A 10VA Kl.1 ASK 123.3 1500 5 10 1
ASK 123.3 1500/5A 15VA Kl.1 ASK 123.3 1500 5 15 1
ASK 123.3 1500/5A 30VA Kl.1 ASK 123.3 1500 5 30 1
ASK 123.3 1600/5A 5VA Kl.1 ASK 123.3 1600 5 5 1
ASK 123.3 1600/5A 10VA Kl.1 ASK 123.3 1600 5 10 1
ASK 123.3 1600/5A 15VA Kl.1 ASK 123.3 1600 5 15 1
ASK 123.3 1600/5A 30VA Kl.1 ASK 123.3 1600 5 30 1
ASK 123.3 1800/5A 5VA Kl.1 ASK 123.3 1800 5 5 1
ASK 123.3 1800/5A 10VA Kl.1 ASK 123.3 1800 5 10 1
ASK 123.3 1800/5A 15VA Kl.1 ASK 123.3 1800 5 15 1
ASK 123.3 1800/5A 30VA Kl.1 ASK 123.3 1800 5 30 1
ASK 123.3 2000/5A 10VA Kl.1 ASK 123.3 2000 5 10 1
ASK 123.3 2000/5A 15VA Kl.1 ASK 123.3 2000 5 15 1
ASK 123.3 2000/5A 30VA Kl.1 ASK 123.3 2000 5 30 1
ASK 123.3 2500/5A 10VA Kl.1 ASK 123.3 2500 5 10 1
ASK 123.3 2500/5A 15VA Kl.1 ASK 123.3 2500 5 15 1
ASK 123.3 2500/5A 30VA Kl.1 ASK 123.3 2500 5 30 1
ASK 123.3 3000/5A 10VA Kl.1 ASK 123.3 3000 5 10 1
ASK 123.3 3000/5A 15VA Kl.1 ASK 123.3 3000 5 15 1
ASK 123.3 3000/5A 30VA Kl.1 ASK 123.3 3000 5 30 1
ASK 123.3 3000/5A 45VA Kl.1 ASK 123.3 3000 5 45 1
ASK 123.3 1000/1A 5VA Kl.1 ASK 123.3 1000 1 5 1
ASK 123.3 1000/1A 10VA Kl.1 ASK 123.3 1000 1 10 1
ASK 123.3 1200/1A 5VA Kl.1 ASK 123.3 1200 1 5 1
ASK 123.3 1200/1A 10VA Kl.1 ASK 123.3 1200 1 10 1
ASK 123.3 1200/1A 15VA Kl.1 ASK 123.3 1200 1 15 1
ASK 123.3 1250/1A 5VA Kl.1 ASK 123.3 1250 1 5 1
ASK 123.3 1250/1A 10VA Kl.1 ASK 123.3 1250 1 10 1
ASK 123.3 1250/1A 15VA Kl.1 ASK 123.3 1250 1 15 1
ASK 123.3 1500/1A 5VA Kl.1 ASK 123.3 1500 1 5 1
ASK 123.3 1500/1A 10VA Kl.1 ASK 123.3 1500 1 10 1
ASK 123.3 1500/1A 15VA Kl.1 ASK 123.3 1500 1 15 1
ASK 123.3 1500/1A 30VA Kl.1 ASK 123.3 1500 1 30 1
ASK 123.3 1800/1A 5VA Kl.1 ASK 123.3 1800 1 5 1
ASK 123.3 1800/1A 10VA Kl.1 ASK 123.3 1800 1 10 1
ASK 123.3 1800/1A 15VA Kl.1 ASK 123.3 1800 1 15 1
ASK 123.3 1800/1A 30VA Kl.1 ASK 123.3 1800 1 30 1
ASK 123.3 2000/1A 10VA Kl.1 ASK 123.3 2000 1 10 1
ASK 123.3 2000/1A 15VA Kl.1 ASK 123.3 2000 1 15 1
ASK 123.3 2000/1A 30VA Kl.1 ASK 123.3 2000 1 30 1
ASK 123.3 2500/1A 10VA Kl.1 ASK 123.3 2500 1 10 1
ASK 123.3 2500/1A 15VA Kl.1 ASK 123.3 2500 1 15 1
ASK 123.3 2500/1A 30VA Kl.1 ASK 123.3 2500 1 30 1
ASK 123.3 3000/1A 10VA Kl.1 ASK 123.3 3000 1 10 1
ASK 123.3 3000/1A 15VA Kl.1 ASK 123.3 3000 1 15 1
ASK 123.3 3000/1A 30VA Kl.1 ASK 123.3 3000 1 30 1
ASK 123.3 3000/1A 45VA Kl.1 ASK 123.3 3000 1 45 1
