ASK 105.6N

PDF
Description

Description

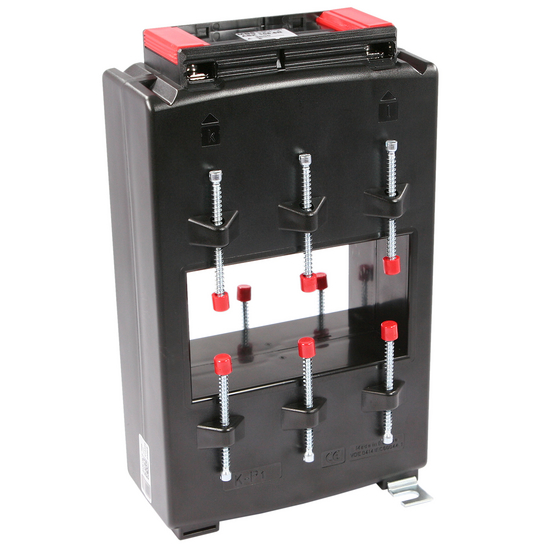

Plug-in current transformer for primary nominal current  of 2500 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 0.5 and 1.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E
  • Bus bar 1: 100 x 55 mm
  • Round conductor: 55 mm

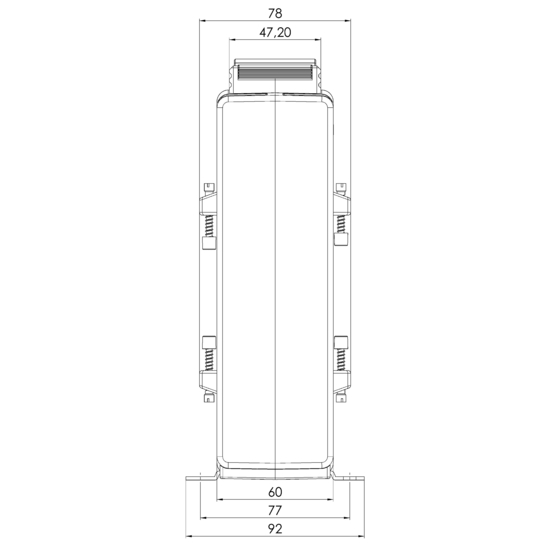

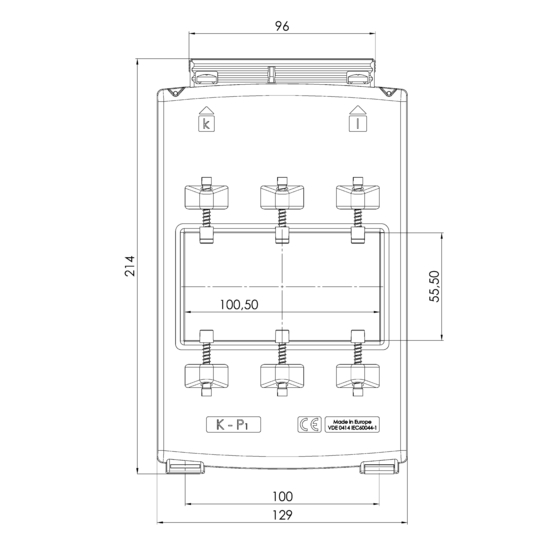

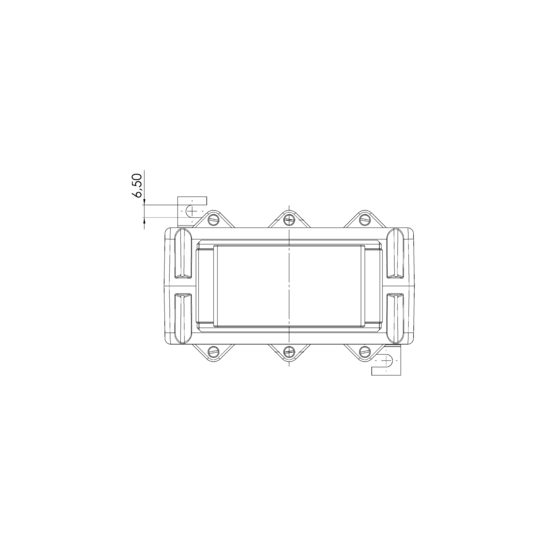

  • Width: 129 mm
  • Height: 214 mm
  • Depth: 78 mm



type description type name type number primary current secondary current VA accuracy
ASK 105.6N 2500/1A 10VA Kl.1 ASK 105.6N 2500 1 10 1
ASK 105.6N 2500/1A 15VA Kl.1 ASK 105.6N 2500 1 15 1
ASK 105.6N 2500/1A 30VA Kl.1 ASK 105.6N 2500 1 30 1
ASK 105.6N 2500/5A 10VA Kl.1 ASK 105.6N 2500 5 10 1
ASK 105.6N 2500/5A 15VA Kl.1 ASK 105.6N 2500 5 15 1
ASK 105.6N 2500/5A 30VA Kl.1 ASK 105.6N 2500 5 30 1
ASK 105.6N 2500/5A 45VA Kl.1 ASK 105.6N 2500 5 45 1
