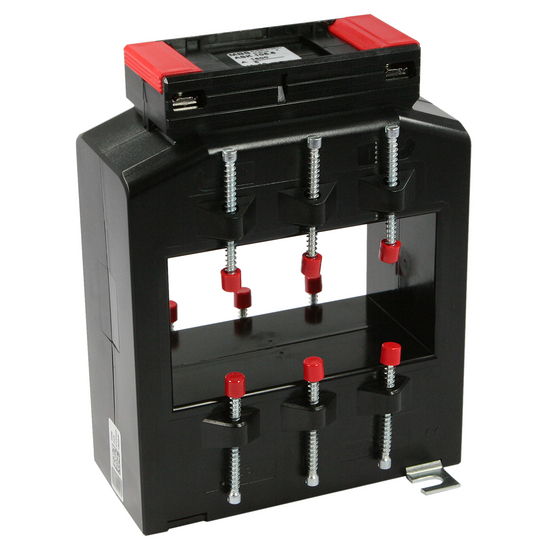

ASK 105.6

PDF
Description

Description

Plug-in current transformer for primary nominal currents from 600 A up to 2500 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 0.2s, 0.5 and 1 (optional in class 0.2 and 0.5s).

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

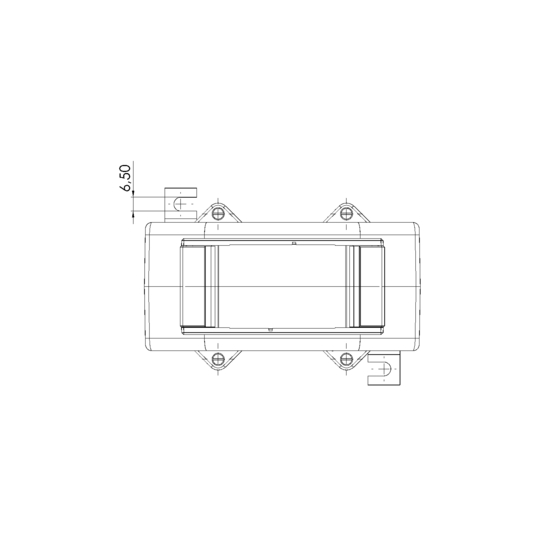

  • Bus bar 1: 100 x 55 mm
  • Round conductor: 55 mm

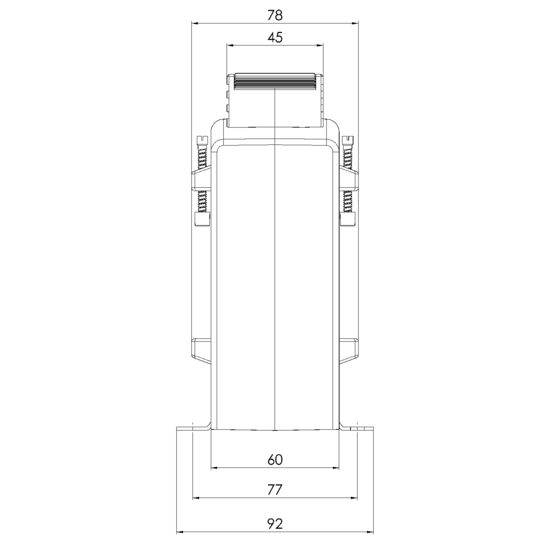

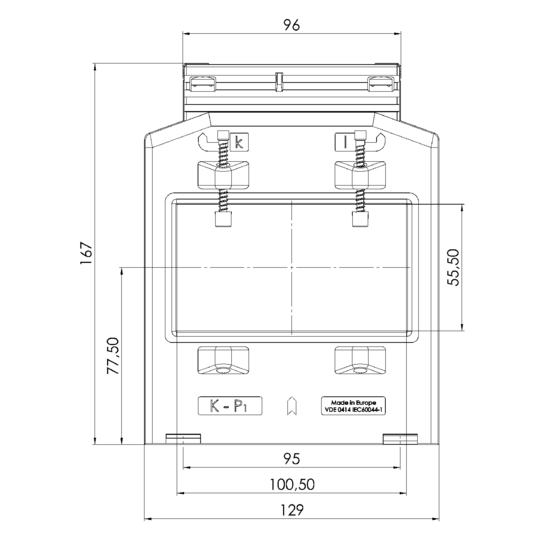

  • Width: 129 mm
  • Height: 167 mm
  • Depth: 78 mm



type description type name type number primary current secondary current VA accuracy
ASK 105.6 600/1A 5VA Kl.1 ASK 105.6 600 1 5 1
ASK 105.6 600/1A 10VA Kl.1 ASK 105.6 600 1 10 1
ASK 105.6 750/1A 5VA Kl.1 ASK 105.6 750 1 5 1
ASK 105.6 750/1A 10VA Kl.1 ASK 105.6 750 1 10 1
ASK 105.6 800/1A 5VA Kl.1 ASK 105.6 800 1 5 1
ASK 105.6 800/1A 10VA Kl.1 ASK 105.6 800 1 10 1
ASK 105.6 1000/1A 5VA Kl.1 ASK 105.6 1000 1 5 1
ASK 105.6 1000/1A 10VA Kl.1 ASK 105.6 1000 1 10 1
ASK 105.6 1000/1A 15VA Kl.1 ASK 105.6 1000 1 15 1
ASK 105.6 1200/1A 5VA Kl.1 ASK 105.6 1200 1 5 1
ASK 105.6 1200/1A 10VA Kl.1 ASK 105.6 1200 1 10 1
ASK 105.6 1200/1A 15VA Kl.1 ASK 105.6 1200 1 15 1
ASK 105.6 1250/1A 5VA Kl.1 ASK 105.6 1250 1 5 1
ASK 105.6 1250/1A 10VA Kl.1 ASK 105.6 1250 1 10 1
ASK 105.6 1250/1A 15VA Kl.1 ASK 105.6 1250 1 15 1
ASK 105.6 1500/1A 5VA Kl.1 ASK 105.6 1500 1 5 1
ASK 105.6 1500/1A 10VA Kl.1 ASK 105.6 1500 1 10 1
ASK 105.6 1500/1A 15VA Kl.1 ASK 105.6 1500 1 15 1
ASK 105.6 1500/1A 30VA Kl.1 ASK 105.6 1500 1 30 1
ASK 105.6 1600/1A 10VA Kl.1 ASK 105.6 1600 1 10 1
ASK 105.6 1600/1A 15VA Kl.1 ASK 105.6 1600 1 15 1
ASK 105.6 1600/1A 30VA Kl.1 ASK 105.6 1600 1 30 1
ASK 105.6 1800/1A 5VA Kl.1 ASK 105.6 1800 1 5 1
ASK 105.6 1800/1A 10VA Kl.1 ASK 105.6 1800 1 10 1
ASK 105.6 1800/1A 15VA Kl.1 ASK 105.6 1800 1 15 1
ASK 105.6 1800/1A 30VA Kl.1 ASK 105.6 1800 1 30 1
ASK 105.6 2000/1A 10VA Kl.1 ASK 105.6 2000 1 10 1
ASK 105.6 2000/1A 15VA Kl.1 ASK 105.6 2000 1 15 1
ASK 105.6 2000/1A 30VA Kl.1 ASK 105.6 2000 1 30 1
ASK 105.6 2000/1A 45VA Kl.1 ASK 105.6 2000 1 45 1
ASK 105.6 2500/1A 10VA Kl.1 ASK 105.6 2500 1 10 1
ASK 105.6 2500/1A 15VA Kl.1 ASK 105.6 2500 1 15 1
ASK 105.6 2500/1A 30VA Kl.1 ASK 105.6 2500 1 30 1
ASK 105.6 3000/1A 10VA Kl.1 ASK 105.6 3000 1 10 1
ASK 105.6 3000/1A 15VA Kl.1 ASK 105.6 3000 1 15 1
ASK 105.6 3000/1A 30VA Kl.1 ASK 105.6 3000 1 30 1
ASK 105.6 3000/1A 45VA Kl.1 ASK 105.6 3000 1 45 1
ASK 105.6 600/5A 5VA Kl.1 ASK 105.6 600 5 5 1
ASK 105.6 600/5A 10VA Kl.1 ASK 105.6 600 5 10 1
ASK 105.6 750/5A 5VA Kl.1 ASK 105.6 750 5 5 1
ASK 105.6 750/5A 10VA Kl.1 ASK 105.6 750 5 10 1
ASK 105.6 800/5A 5VA Kl.1 ASK 105.6 800 5 5 1
ASK 105.6 800/5A 10VA Kl.1 ASK 105.6 800 5 10 1
ASK 105.6 1000/5A 5VA Kl.1 ASK 105.6 1000 5 5 1
ASK 105.6 1000/5A 10VA Kl.1 ASK 105.6 1000 5 10 1
ASK 105.6 1000/5A 15VA Kl.1 ASK 105.6 1000 5 15 1
ASK 105.6 1200/5A 5VA Kl.1 ASK 105.6 1200 5 5 1
ASK 105.6 1200/5A 10VA Kl.1 ASK 105.6 1200 5 10 1
ASK 105.6 1200/5A 15VA Kl.1 ASK 105.6 1200 5 15 1
ASK 105.6 1250/5A 5VA Kl.1 ASK 105.6 1250 5 5 1
ASK 105.6 1250/5A 10VA Kl.1 ASK 105.6 1250 5 10 1
ASK 105.6 1250/5A 15VA Kl.1 ASK 105.6 1250 5 15 1
ASK 105.6 1500/5A 5VA Kl.1 ASK 105.6 1500 5 5 1
ASK 105.6 1500/5A 10VA Kl.1 ASK 105.6 1500 5 10 1
ASK 105.6 1500/5A 15VA Kl.1 ASK 105.6 1500 5 15 1
ASK 105.6 1500/5A 30VA Kl.1 ASK 105.6 1500 5 30 1
ASK 105.6 1600/5A 5VA Kl.1 ASK 105.6 1600 5 5 1
ASK 105.6 1600/5A 10VA Kl.1 ASK 105.6 1600 5 10 1
ASK 105.6 1600/5A 15VA Kl. 1 ASK 105.6 1600 5 15 1
ASK 105.6 1600/5A 30VA Kl.1 ASK 105.6 1600 5 30 1
ASK 105.6 1800/5A 5VA Kl.1 ASK 105.6 1800 5 5 1
ASK 105.6 1800/5A 10VA Kl.1 ASK 105.6 1800 5 10 1
ASK 105.6 1800/5A 15VA Kl.1 ASK 105.6 1800 5 15 1
ASK 105.6 1800/5A 30VA Kl.1 ASK 105.6 1800 5 30 1
ASK 105.6 2000/5A 10VA Kl.1 ASK 105.6 2000 5 10 1
ASK 105.6 2000/5A 15VA Kl.1 ASK 105.6 2000 5 15 1
ASK 105.6 2000/5A 30VA Kl.1 ASK 105.6 2000 5 30 1
ASK 105.6 2000/5A 45VA Kl.1 ASK 105.6 2000 5 45 1
ASK 105.6 2500/5A 10VA Kl.1 ASK 105.6 2500 5 10 1
ASK 105.6 2500/5A 15VA Kl.1 ASK 105.6 2500 5 15 1
ASK 105.6 3000/5A 10VA Kl.1 ASK 105.6 3000 5 10 1
ASK 105.6 3000/5A 15VA Kl.1 ASK 105.6 3000 5 15 1
ASK 105.6 3000/5A 30VA Kl.1 ASK 105.6 3000 5 30 1
ASK 105.6 3000/5A 45VA Kl.1 ASK 105.6 3000 5 45 1
