Back to: Plug-in Current Transformer

AS 176.3

PDF
Description

Description

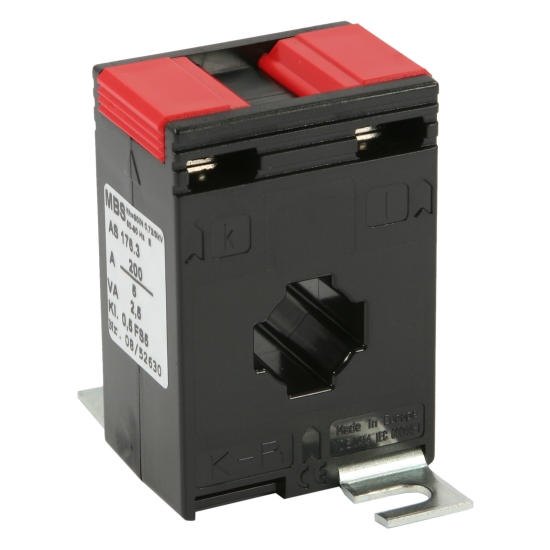

Plug-in current transformers suitable for slim-line XR size XR1 for primary nominal currents of 75 A up to 250 A with a secondary nominal current of 5 A or 1 A (optional 2 A) accuracy classes 3, 1 and 0.5.
Installation of this current transformer is only possible with the ABB bus bar adaptor.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E

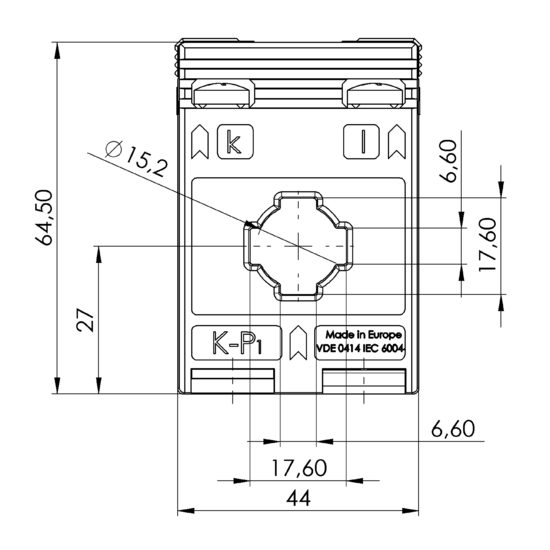

  • Bus bar 1: 17 x 6 mm
  • Round conductor: 15,2 mm

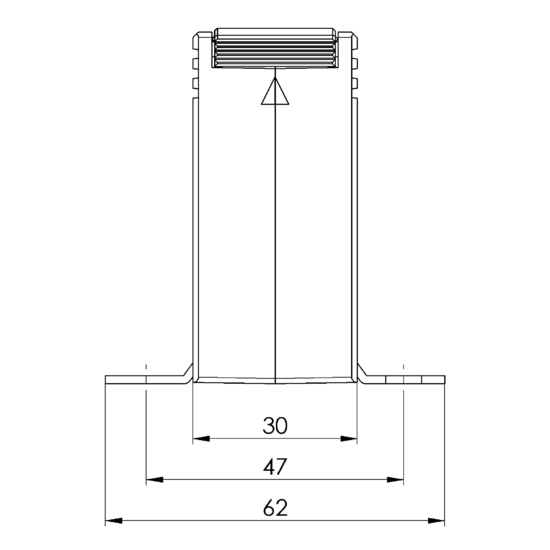

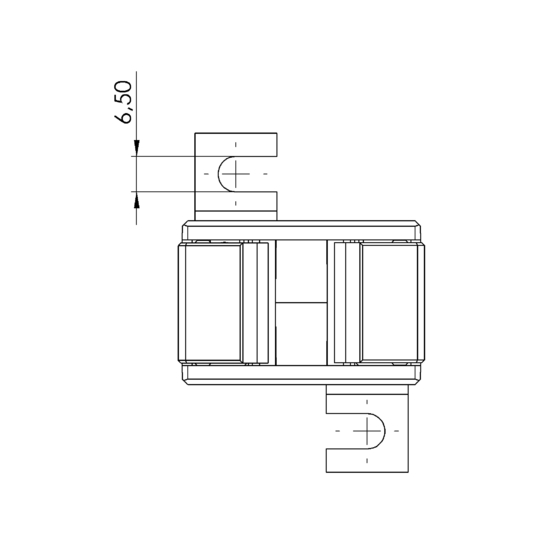

  • Width: 45 mm
  • Height: 65 mm
  • Depth: 30 mm



type description type name type number primary current secondary current VA accuracy
AS 176.3 75/5A 1,5VA Kl.1 AS 176.3 75 5 1,5 1
AS 176.3 80/5A 1,5VA Kl.1 AS 176.3 80 5 1,5 1
AS 176.3 100/5A 2VA Kl.1 AS 176.3 100 5 2 1
AS 176.3 125/5A 2,5VA Kl.1 AS 176.3 125 5 2,5 1
AS 176.3 150/5A 1,5VA Kl.1 AS 176.3 150 5 1,5 1
AS 176.3 150/5A 2,5VA Kl.1 AS 176.3 150 5 2,5 1
AS 176.3 160/5A 2,5VA Kl.1 AS 176.3 160 5 2,5 1
AS 176.3 200/5A 2,5VA Kl.1 AS 176.3 200 5 2,5 1
AS 176.3 250/5A 2,5VA Kl.1 AS 176.3 250 5 2,5 1
AS 176.3 250/5A 3,75VA Kl.1 AS 176.3 250 5 3,75 1
AS 176.3 75/1A 1,5VA Kl.1 AS 176.3 75 1 1,5 1
AS 176.3 80/1A 1,5VA Kl.1 AS 176.3 80 1 1,5 1
AS 176.3 100/1A 2VA Kl.1 AS 176.3 100 1 2 1
AS 176.3 125/1A 2,5VA Kl.1 AS 176.3 125 1 2,5 1
AS 176.3 150/1A 1,5VA Kl.1 AS 176.3 150 1 1,5 1
AS 176.3 150/1A 2,5VA Kl.1 AS 176.3 150 1 2,5 1
AS 176.3 160/1A 2,5VA Kl.1 AS 176.3 160 1 2,5 1
AS 176.3 200/1A 2,5VA Kl.1 AS 176.3 200 1 2,5 1
AS 176.3 250/1A 2,5VA Kl.1 AS 176.3 250 1 2,5 1
AS 176.3 250/1A 3,75VA Kl.1 AS 176.3 250 1 3,75 1
ASK 176.3 75/5A 1,5VA Kl.1 ASK 176.3 75 5 1,5 1
ASK 176.3 80/5A 1,5VA Kl.1 ASK 176.3 80 5 1,5 1
ASK 176.3 100/5A 2VA Kl.1 ASK 176.3 100 5 2 1
ASK 176.3 125/5A 2,5VA Kl.1 ASK 176.3 125 5 2,5 1
ASK 176.3 150/5A 1,5VA Kl.1 ASK 176.3 150 5 1,5 1
ASK 176.3 150/5A 2,5VA Kl.1 ASK 176.3 150 5 2,5 1
ASK 176.3 160/5A 2,5VA Kl.1 ASK 176.3 160 5 2,5 1
ASK 176.3 200/5A 2,5VA Kl.1 ASK 176.3 200 5 2,5 1
ASK 176.3 250/5A 2,5VA Kl.1 ASK 176.3 250 5 2,5 1
ASK 176.3 250/5A 3,75VA Kl.1 ASK 176.3 250 5 3,75 1
ASK 176.3 75/1A 1,5VA Kl.1 ASK 176.3 75 1 1,5 1
ASK 176.3 80/1A 1,5VA Kl.1 ASK 176.3 80 1 1,5 1
ASK 176.3 100/1A 2VA Kl.1 ASK 176.3 100 1 2 1
ASk 176.3 125/1A 2,5VA Kl.1 ASK 176.3 125 1 2,5 1
ASK 176.3 150/1A 1,5VA Kl.1 ASK 176.3 150 1 1,5 1
ASK 176.3 150/1A 2,5VA Kl.1 ASK 176.3 150 1 2,5 1
ASK 176.3 160/1A 2,5VA Kl.1 ASK 176.3 160 1 2,5 1
ASK 176.3 200/1A 2,5VA Kl.1 ASK 176.3 200 1 2,5 1
ASK 176.3 250/1A 2,5VA Kl.1 ASK 176.3 250 1 2,5 1
ASK 176.3 250/1A 3,75VA Kl.1 ASK 176.3 250 1 3,75 1
