ASK 412.4 3U

PDF
Description

Description

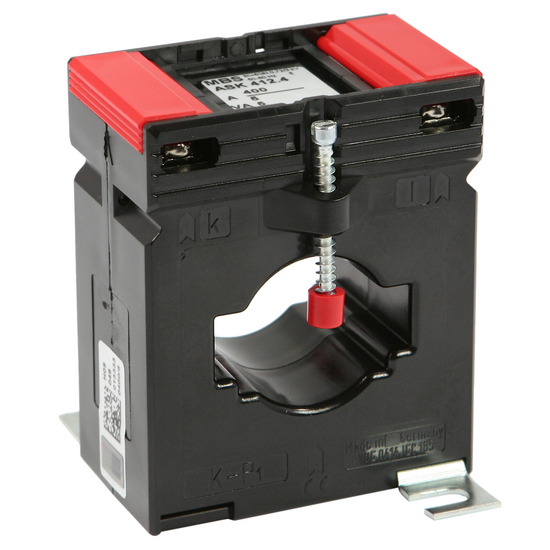

Secondary change-over plug-in current transformer for primary nominal currents from 400-200-100 A up to 800-400-200 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 1.

Technical Data

  • Therm. nominal continuous current Icth: 1,0 x IN
  • Therm. nominal short-time current Ith: 60 x IN, 1 sec.
  • Max. operating voltage Um: 0.72 kV
  • Isolation test voltage: 3 kV, Ueff, 50 Hz, 1 min.
  • Nominal rated frequency: 50...60 Hz
  • Isolation class: E
  • Bus bar 1: 40 x 12 mm
  • Bus bar 2: 30 x 15 mm
  • Round conductor: 30,5 mm

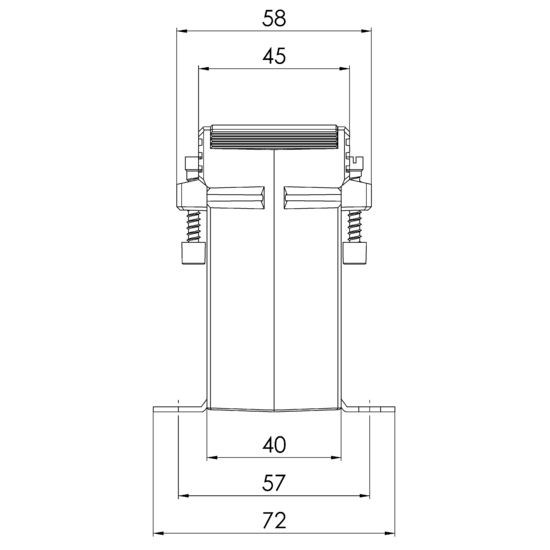

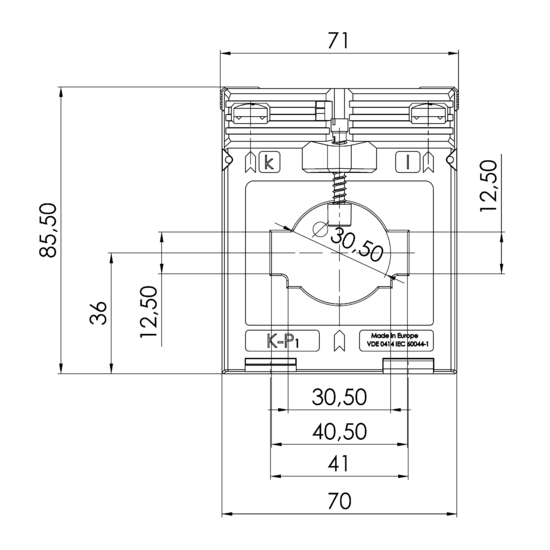

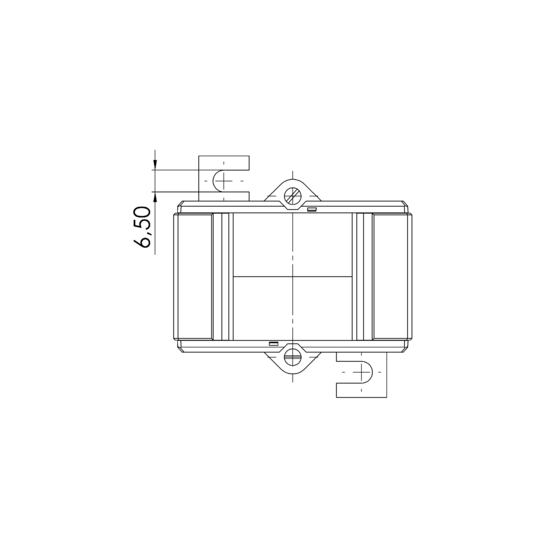

  • Width: 71 mm
  • Height: 85,5 mm
  • Depth: 58 mm
