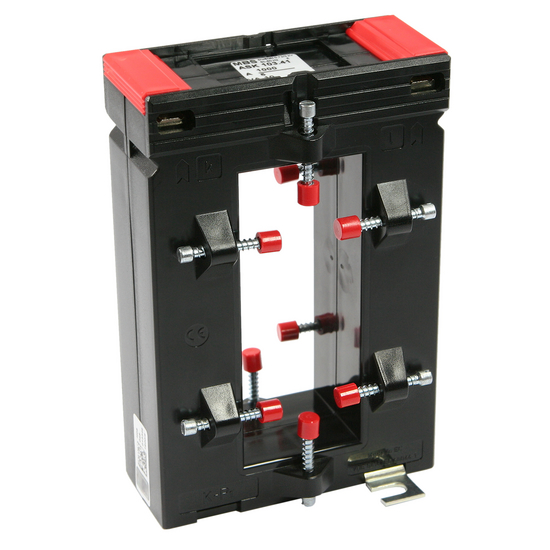

ASK 103.41 2U


Description

Secondary change-over plug-in current transformer for primary nominal currents from 1000-500 A up to 2000-1000 A, secondary nominal current 5 A or 1 A (optional 2 A), accuracy class 1

Technical Data

Therm. nominal continuous current I_cth: 1,0 x I_N
Therm. nominal short-time current I_th: 60 x I_N, 1 sec.
Max. operating voltage U_m: 0.72 kV
Isolation test voltage: 3 kV, U_eff, 50 Hz, 1 min.
Nominal rated frequency: 50...60 Hz
Isolation class: E

Bus bar 1: 103 x 41 mm
Round conductor: 40 mm

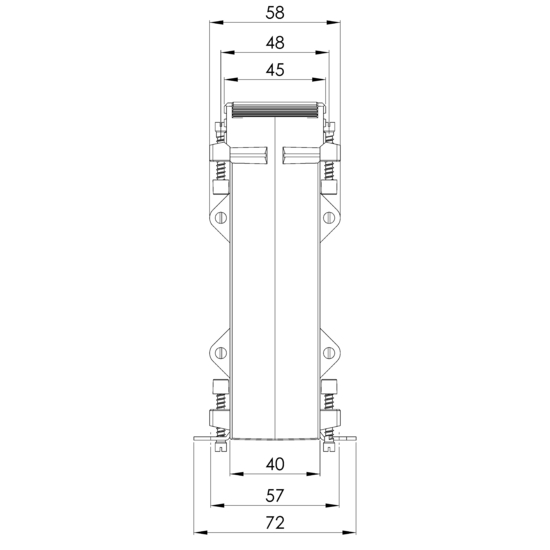

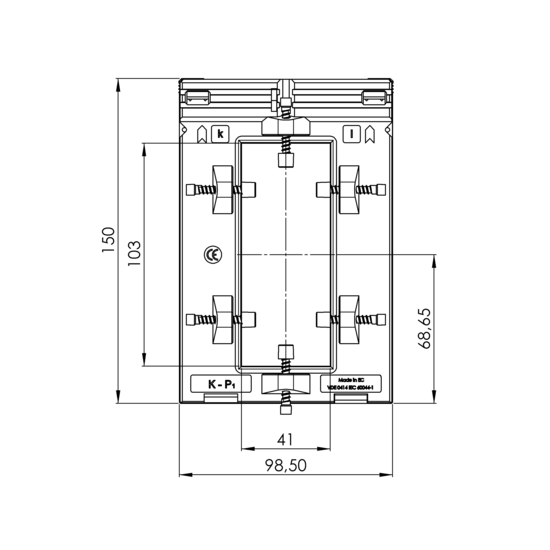

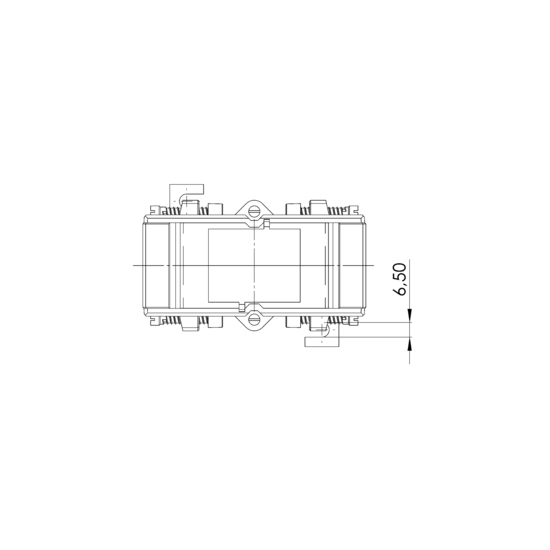

Width: 99 mm
Height: 150 mm
Depth: 58 mm
