SWMU 41.51/41.52 - 0-20mA or 0-10V - Uh=24VDC

PDF

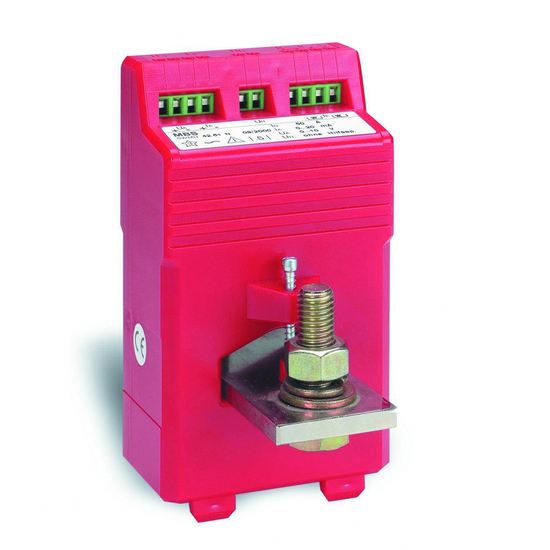

PB_SWMU41.5_online-zoom.jpgSWMU 41.5 (Sammelschiene nicht im Lieferumfang enthalten)
Description

Description

Measuring transducers for the transformation of sinus-shaped AC current. For an output signal a load-independent DC current and an imprinted DC voltage signal is available, which stands proportionally to the measurement value of the input volume. These signals can be used for display, recording, monitoring and or control function.
Simultaneously, the secondary current of the current transformer can be utilised to operate conventional needle instruments.
The measuring transducer fulfils the requirements and regulations with regard to the electromagnetic compatibility (EMV) and security IEC 1010 and EN 61010.



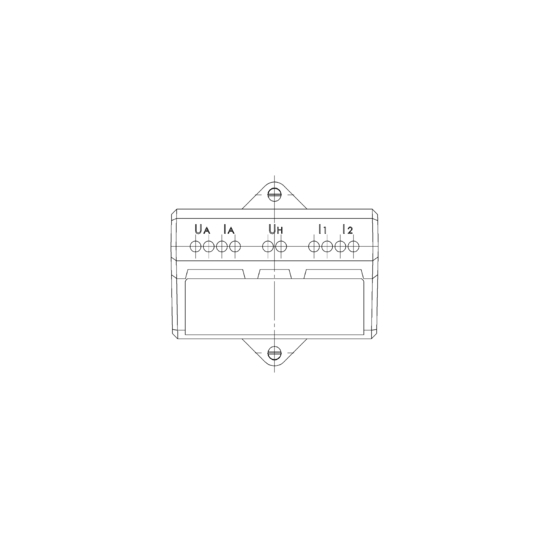

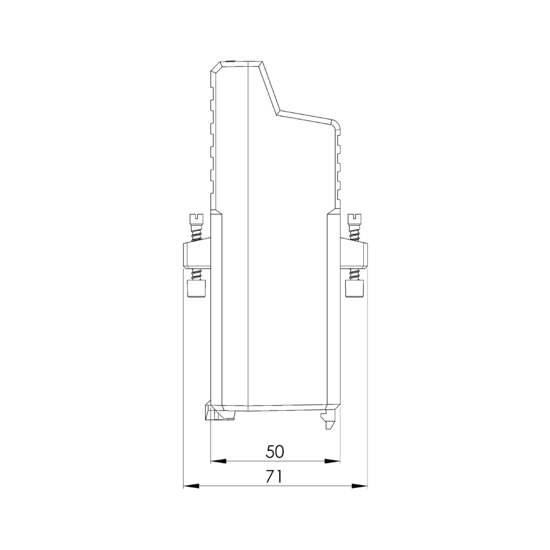

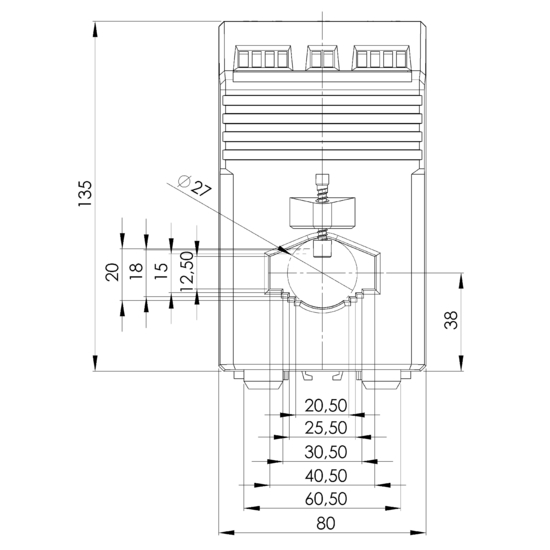

  • Bus bar: 40 x 12 mm
  • Round conductor: 27 mm
  • Width: 80 mm
  • Height: 135 mm
  • Depth: 71 mm
  • Weight: 350 g
  • operating range: 0 ... 120 % IN

Versions

order no. description primary current output aux. supply
7000065006 SWMU 41.52 1A 0-20mA or 0-10V 24VDC
7000065007 SWMU 41.52 5A 0-20mA or 0-10V 24VDC
7000065008 SWMU 41.52 10A 0-20mA or 0-10V 24VDC
7000065009 SWMU 41.51 15A 0-20mA or 0-10V 24VDC
7000065010 SWMU 41.51 20A 0-20mA or 0-10V 24VDC
7000065011 SWMU 41.51 25A 0-20mA or 0-10V 24VDC
7000065012 SWMU 41.51 30A 0-20mA or 0-10V 24VDC
7000065013 SWMU 41.51 40A 0-20mA or 0-10V 24VDC
7000065014 SWMU 41.51 50A 0-20mA or 0-10V 24VDC
7000065015 SWMU 41.51 60A 0-20mA or 0-10V 24VDC
7000065016 SWMU 41.51 75A 0-20mA or 0-10V 24VDC
7000065017 SWMU 41.51 100A 0-20mA or 0-10V 24VDC
7000065018 SWMU 41.51 150A 0-20mA or 0-10V 24VDC
7000065019 SWMU 41.51 200A 0-20mA or 0-10V 24VDC
7000065020 SWMU 41.51 250A 0-20mA or 0-10V 24VDC
7000065021 SWMU 41.51 300A 0-20mA or 0-10V 24VDC
7000065022 SWMU 41.51 400A 0-20mA or 0-10V 24VDC
7000065023 SWMU 41.51 500A 0-20mA or 0-10V 24VDC
7000065024 SWMU 41.51 600A 0-20mA or 0-10V 24VDC
7000065025 SWMU 41.51 750A 0-20mA or 0-10V 24VDC
7000065026 SWMU 41.51 800A 0-20mA or 0-10V 24VDC
