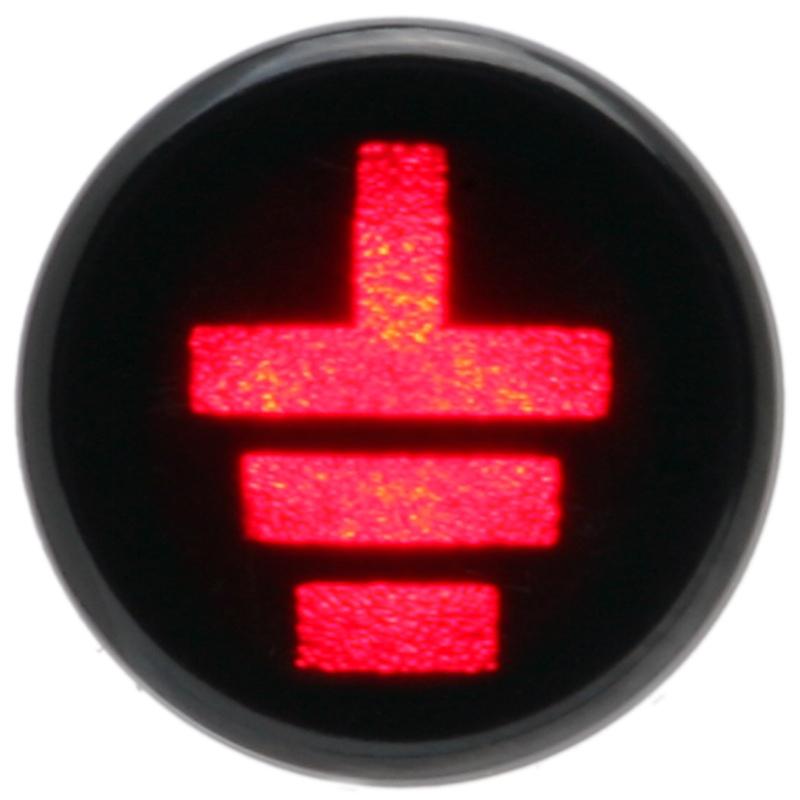

PLSEr - LED Grounding Indicator

Hauptbild - PLSEr - LED Grounding Indicator
Standby view of PLSEr - PLSEr - LED Grounding Indicator
Side view of PLSEr - PLSEr - LED Grounding Indicator
Dimensions of PLSEr - PLSEr - LED Grounding Indicator
  • Front dimension 30 mm

  • Available only with round front


The LED disconnection indicator PLSEr has a front dimension of 30 mm and is used to indicate a grounding state. Please specify the desired suppression of the inductive voltage in your order.
Operating voltage 12-230 VAC / 12-220 VDC
Rated current max. 20 mA
Protection class IP 65 / IP 20
Mounting hole: 22 mm
Hole spacing min. 40 mm
Connection max. 1.5 mm²
Suppression of induced voltage 30 V / 60 V / 100 V / 120 V / higher on request
