PLS32 - LED Switch Position Indicator

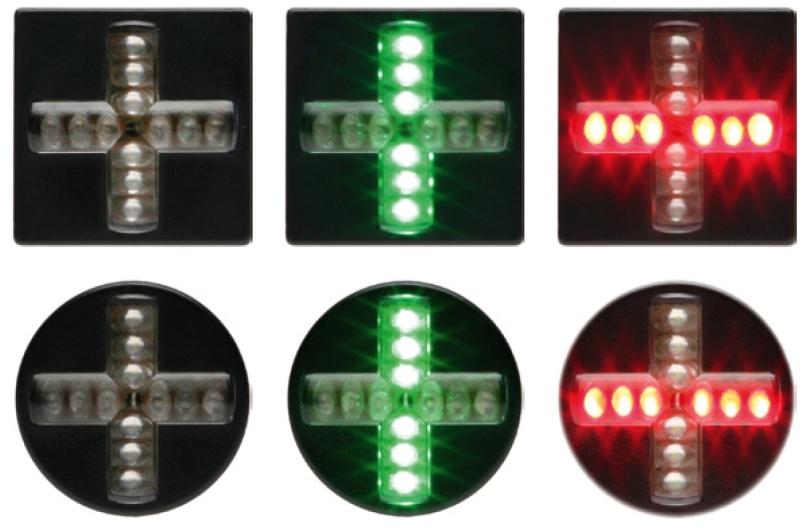

Hauptbild - PLS32 - LED Switch Position Indicator
Bar LED version PLS32-L - PLS32 - LED Switch Position Indicator
Side view of PLS32 - PLS32 - LED Switch Position Indicator
Dimensions of PLS32 - PLS32 - LED Switch Position Indicator
Properties

  • Front dimension 32 mm

  • Available with round or square front

  • Variant -L (with bar LED) is only produced in the colour combination red/green

Description

The LED switch position indicator PLS32 has a front dimension of 32 mm and is used to indicate switch positions. As PLS32K also available with short housing. Please specify the desired suppression of the inductive voltage in your order
Operating voltage 12-230 VAC / 12-220 VDC
Rated current max. 20 mA
Protection class IP 65 / IP 20
Mounting hole: 22 mm
Hole spacing min. 33 mm
Connection max. 1.5 mm²
Suppression of induced voltage 30 V / 60 V / 100 V / 120 V / higher on request
