PLS25 - LED Switch Position Indicator

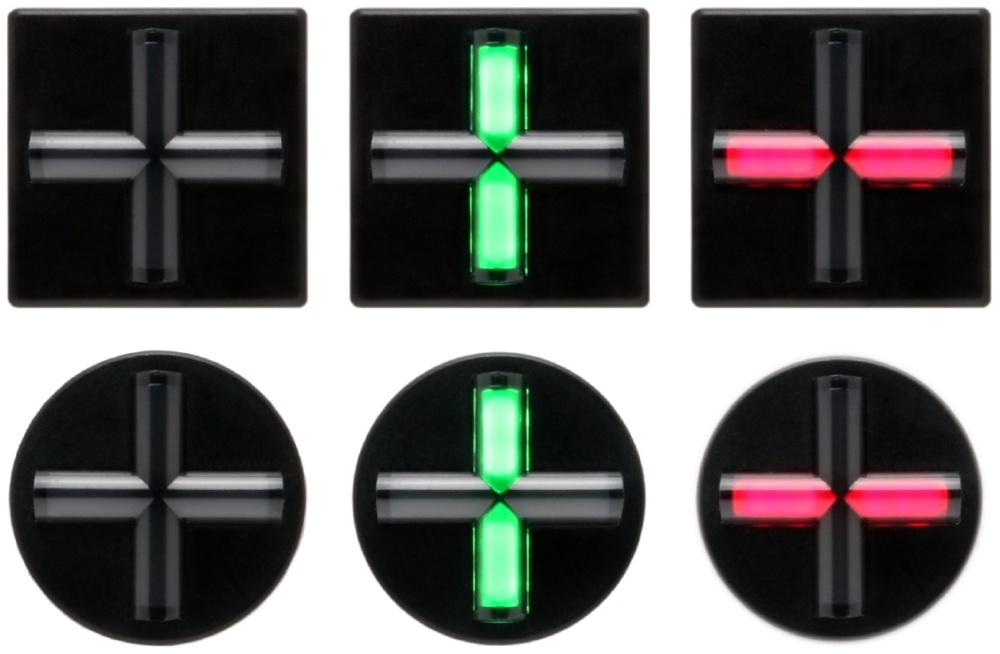

Hauptbild - PLS25 - LED Switch Position Indicator
Side view of PLS20 - PLS25 - LED Switch Position Indicator
Dimensions of PLS25 - PLS25 - LED Switch Position Indicator
  • Front dimension 25 mm

  • Available with round or square front


The LED switch position indicator PLS25 has a front dimension of 25 mm and is used to indicate switch positions. Please specify the desired suppression of the inductive voltage in your order.
Operating voltage 12-230 VAC / 12-220 VDC
Rated current max. 20 mA
Protection class IP 65 / IP 20
Mounting hole: 22 mm
Hole spacing min. 30 mm
Connection max. 1.5 mm²
Suppression of induced voltage 30 V / 60 V / 100 V / 120 V / higher on request
