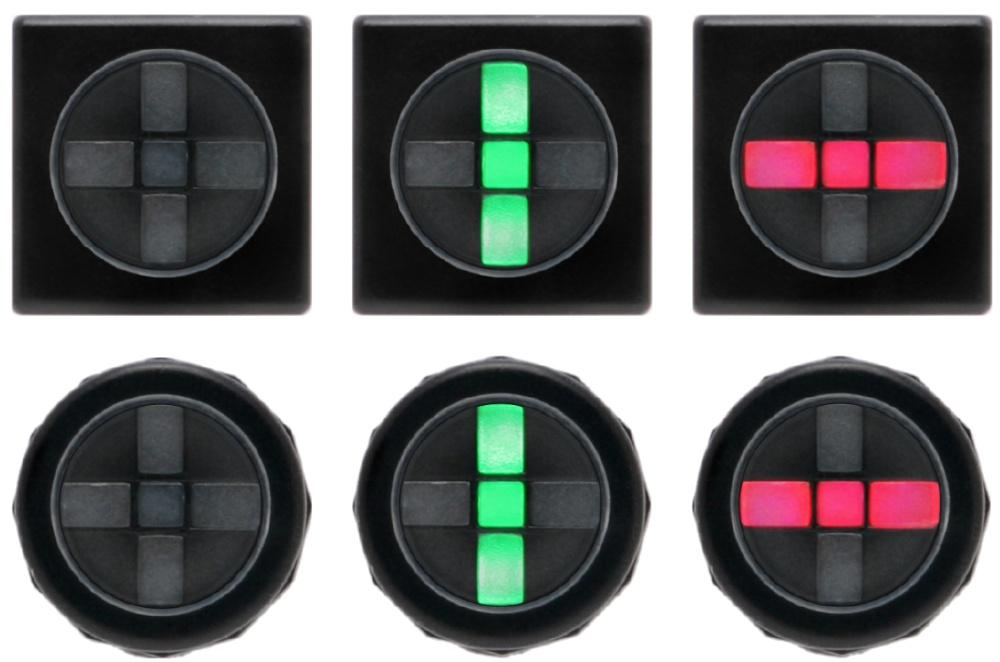

PLS20 - LED Switch Position Indicator
PLS20 - LED Switch Position Indicator
Get a quote
Properties
Front dimension 20 mm
Available with round or square front
Description
The LED switch position indicator PLS20 has a front dimension of 20 mm and is used to indicate switch positions. Please specify the desired suppression of the inductive voltage in your order.
Operating voltage
12-230 VAC / 12-220 VDC
Rated current
max. 20 mA
Protection class
IP 65 / IP 20
Mounting hole:
16 mm
Hole spacing
min. 33 mm
Connection
max. 1.5 mm²
Suppression of induced voltage
30 V / 60 V / 100 V / 120 V / higher on request
Downloads
Liste Ergänzungskomponenten (5.75 MB)
