PI 24 - Switch Position Indicator for DC Voltage

Properties

Front dimensions 24 x 24 mm
for DC voltages

Description

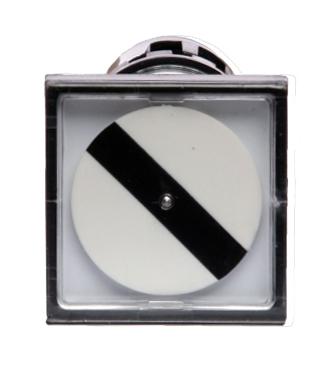

The electromechanical switch position indicator PI 24 has a front dimension of 24 mm and is used to indicate switch positions. It is operated via DC voltage.

Variants

PI 24-1 24 x 24 mm with bar symbol and white background

PI 24-2 24 x 24 mm with bar symbol and black background

PI 24-5 24 x 24 mm with disconnection symbol and white background

Technische Daten

Front dimensions

24 x 24 mm

Housing

Ø 21,8 mm

Voltage

24-230 VDC

Test voltage

3,7 kV

Consumption

0,4 / 1,4 W at 110 / 230 V

Weight

~0,1 kg
