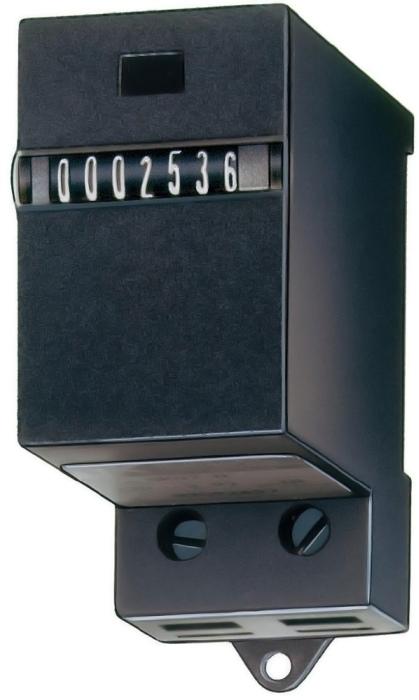

7-digit micro total counter
DIN rail mounting
Value retention in the event of power failure
Electrical connection
Terminals for cable cross-section up to max. 2.5 mm².max. tightening torque 0.8 Nm
Nominal voltages
DC at 10 imp/s: 1.5/3/4.5/5/6/12 V DC -10 % +20 %DC at 25 Imp/s: 3/4.5/5/6/12/24 V DC ± 10 %AC at 10 Imp/s: 12/24/115/230 V AC ± 10 %
Digit size
1,2 x 4 mm optical
Power consumption(bei 20 °C)
bei 10 Imp/s: ca. 50 mWbei 25 Imp/s: ca. 250 mWbei 10 Imp/s: ca. 800 mVA
Digit colour
white, ground black
Number of digits
7
Counting method
adding
Duty cycle
100%
Reset
none
Einbaulage
horizontal, others on request
Lifespan
> 50 x 106 pulses
Weight
55 g
Protection class
IP 50 front
Options
Temperature range depending on version
-30 ... +85 °C, -20 ... +70 °C
UL approval
File E43429
Housing
Plastic black PC (polycarbonate)
