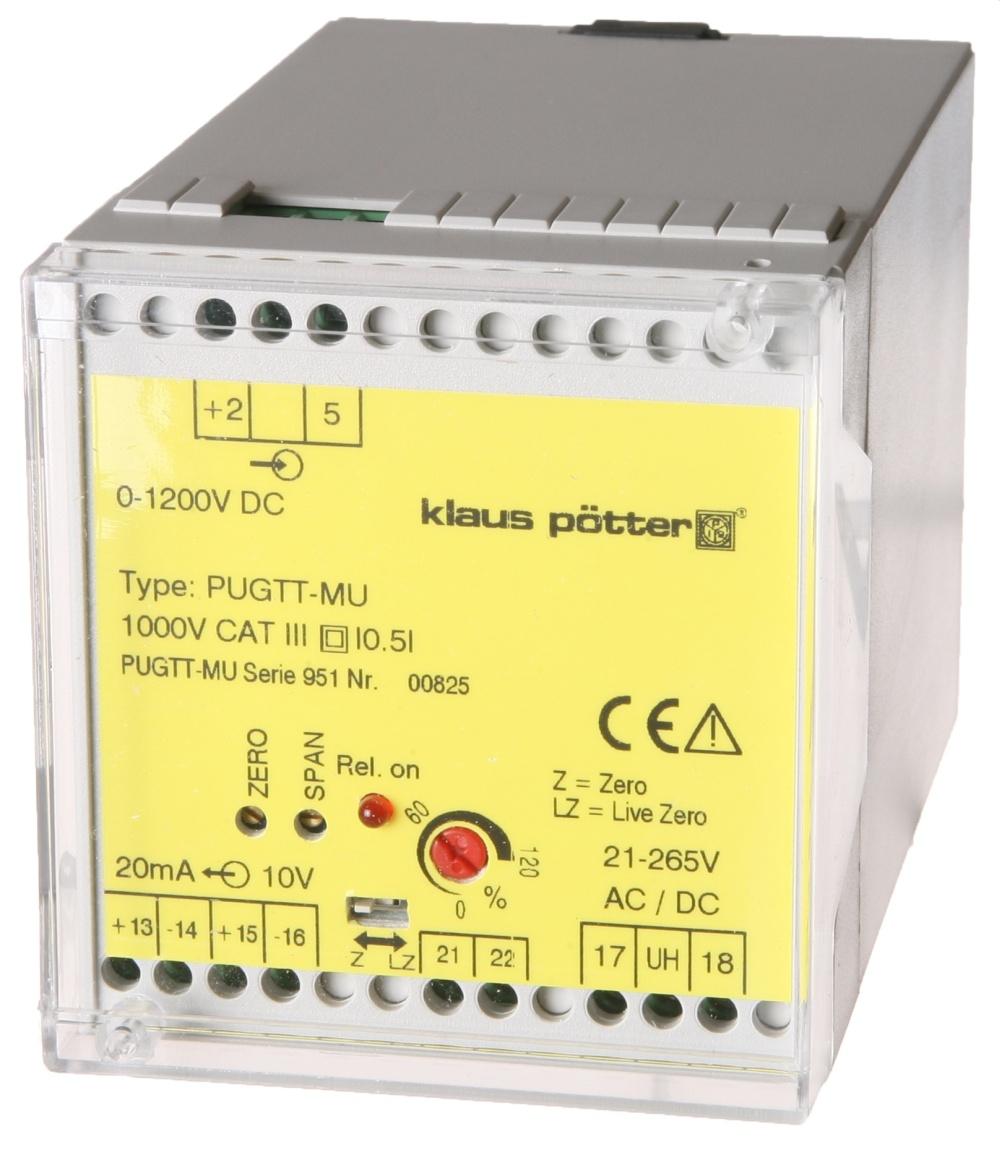

PUGTT-MU - DC Voltage Transducer

Hauptbild - PUGTT-MU - DC Voltage Transducer


The PUGTT-MU measuring transducer is used to convert and galvanically isolate a DC voltage into an impressed DC current and DC voltage signal. The calibrated dual outputs can be switched between 0-20 mA and 0-10 V or 4-20 mA and 2-10 V. An integrated limit value monitor is used to monitor the input signal.
Input voltage 0-1000 V or 0-1500 V
Output signal 0-20 mA / 0-10 V / 4-20 mA / 2-10 V
Supply voltage 21-265 VAC+DC, 2 VA
