Description

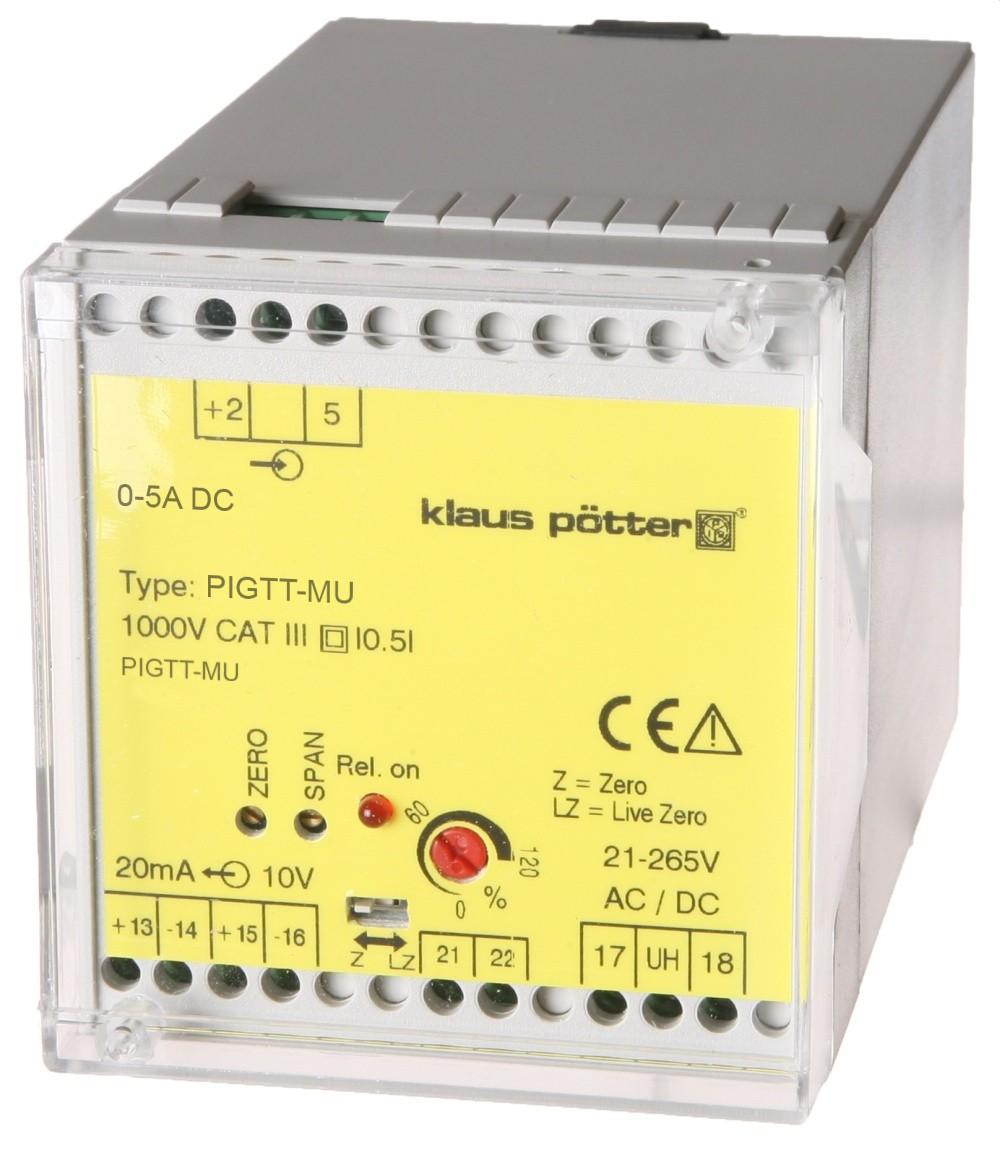

The PIGTT-MU transducer is used to convert and galvanically isolate a direct current into an impressed direct current and direct voltage signal.
The calibrated double outputs are switchable between 0-20 mA and 0-10 V or 4-20 mA and 2-10 V. An integrated limit value monitor is used to monitor the input signal.
Input current
0-100 µA to 0-5A
Output signal
0-20 mA / 0-10 V / 4-20 mA / 2-10 V
Supply voltage
21-265 VAC+DC, 2 VA
