Description
WS 0010 and WS 0011 are single-phase electronic active energy meters. The meters directly measure the positive active energy in two-wire networks. Two versions are available, one with pulse output (WS 0011) and one without pulse output (WS 0010). The meters have accuracy class 1 according to EN SIST 62053-21 for active energy meters. They are designed for mounting on DIN mounting rails (1 subunit).
Variants
WS 0010
Single-phase, direct-measuring meter for mounting rail installation

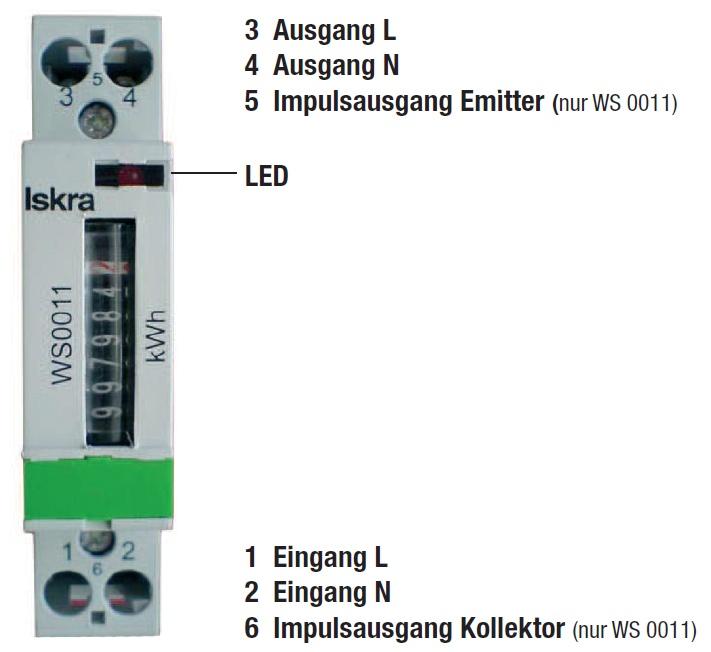

WS 0011
Single-phase, direct-measuring meter for mounting rail installation with pulse output
