(K)PQFe - Pointer Frequency Meter

Properties

low self-consumption
Elektronische Frequenzmessung
Exchangeable scale
Auxiliary voltage generation from the measuring circuit
Terminal cover according to VGB 04 (option)

Description

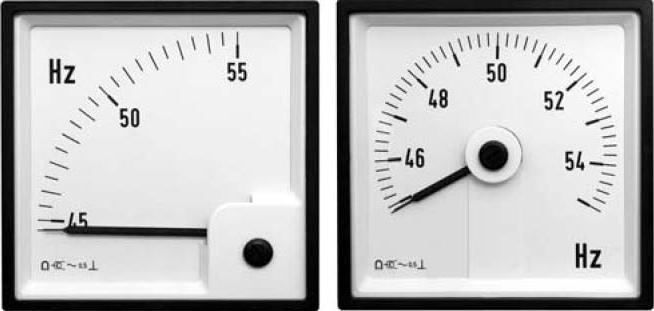

The instruments of type (K)PQFe are used for frequency measurement in AC or three-phase networks. The PQFe has a linear 90° scale, while the KPQFe has a linear 240° scale.

Variants

PQFe 48 48 x 48 mm for panel mounting

KPQFe 48 48 x 48 mm for panel mounting

PQFe 72 72 x 72 mm for panel mounting

KPQFe 72 72 x 72 mm for panel mounting

PQFe 96 96 x 96 mm for panel mounting

KPQFe 96 96 x 96 mm for panel mounting

PQFe 144 144 x 144 mm for panel mounting

KPQFe 144 144 x 144 mm for panel mounting

Application

The instruments of type (K)PQFe are designed for measuring the frequency in AC or three-phase networks in the range between 45 and 65 Hz. They are used in the monitoring panels of power stations, distribution and transformer stations, and wherever a technical frequency is to be measured in a system.
