(K)DQLe - Power Factor Meter

Hauptbild - (K)DQLe - Power Factor Meter
Austausch der Skala bei Schalttafeleinbaugeräten und Messgeräten zur Hutschienenmontage - (K)DQLe - Power Factor Meter
Properties

  • Display of the power factor cos φ

  • Linear or non-linear scale

  • low self-consumption

  • wide frequency range

  • Exchangeable scale

  • Current connection via feedthrough transformer

  • Terminal cover according to VGB 04 (option)

Description

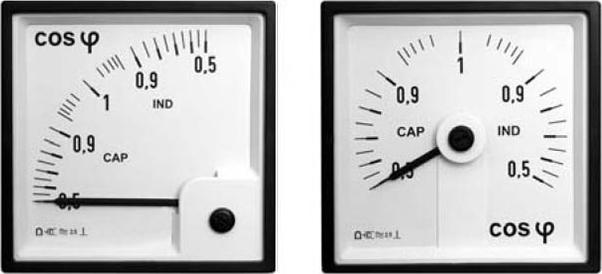

The DQLe and KDQLe series power factor meters are used to measure the power factor in AC and three-phase networks. DQLe power factor meters have a 90° scale and KDQLe circular scale devices have a 240° scale. A choice can be made between direct measurement of the power factor (linear cos?-scale) and measurement of the phase shift angle (non-linear cos?-scale).

Variants

DQLe 72 72 x 72 mm for panel mounting
KDQLe 72 72 x 72 mm for panel mounting
DQLe 96 96 x 96 mm for panel mounting
KDQLe 96 96 x 96 mm for panel mounting
DQLe 144 144 x 144 mm for panel mounting
KDQLe 144 144 x 144 mm for panel mounting

Technical Data

Technical Data

Accuracy class

2.5 (according to EN 60 051)

Housing

Polycarbonate self-extinguishing, according to UL 94 V-0

Protection class

Housing IP 52
Terminals IP 00 (IP 20 for size 45)
according to 60529: 1989

Mounting position

vertical ± 5°

Inputs

Nominal voltage Un

57, 1001), 1101), 230, 400, 500 V
1) also for connection via voltage transformer x/100/110V

Nominal current In

1 A or 5 A

Frequency range

45 ... 65 Hz

Standard measuring range

cap 0,5 ... 1 ... 0,5 ind
other measuring ranges on request

Environmental Conditions

Climate class

2 according to VDE/VDI 3540

Temperature

Reference range +18 ... +28°C
Working range -25 ... +55°C
Storage -40 ... +70°C

Relative humidity

≤ 80 % (without condensation)
