LMT 144-36.2 5mm 24V AC/DC

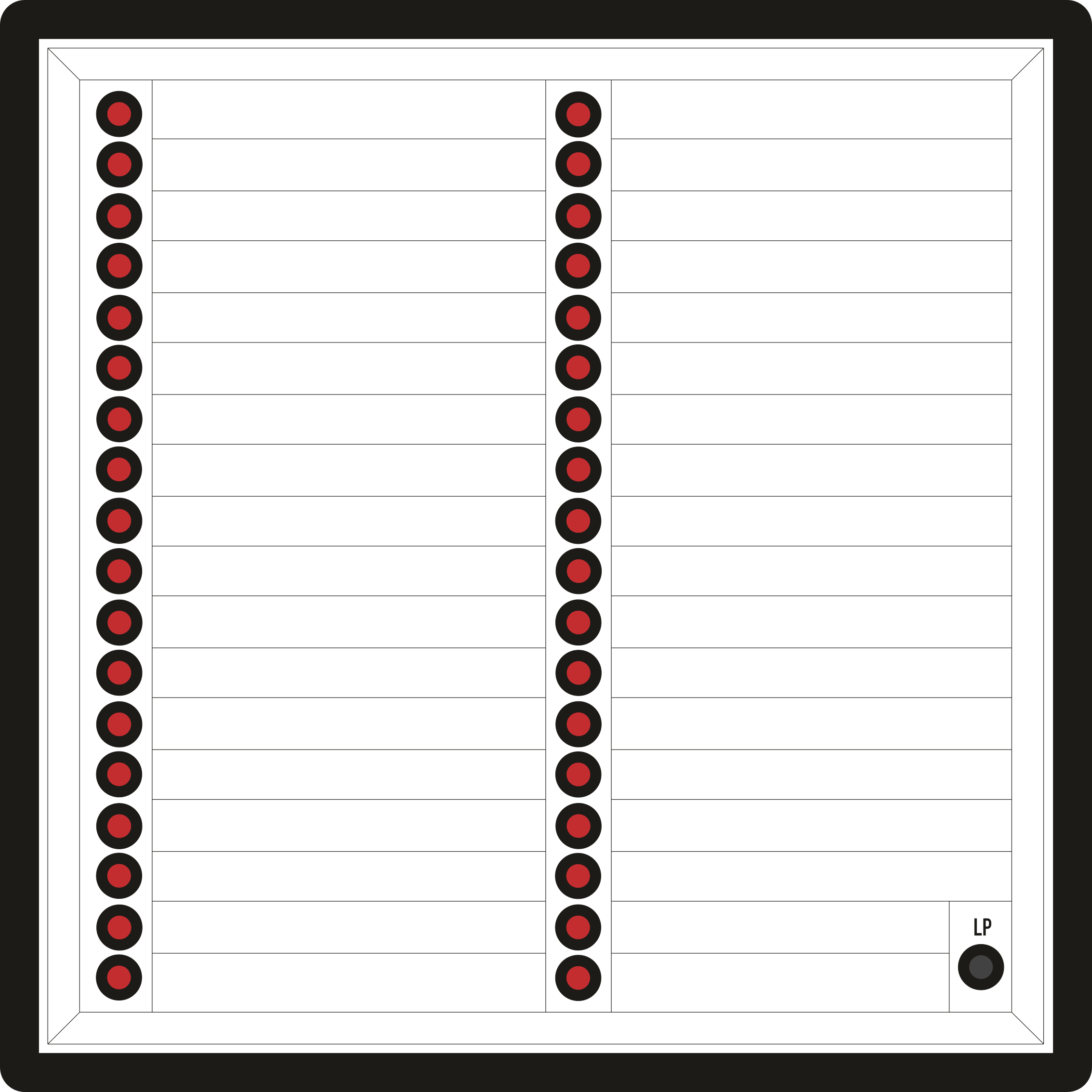

Meldetableau LMT 144-36.2 5mm 24V AC/DC

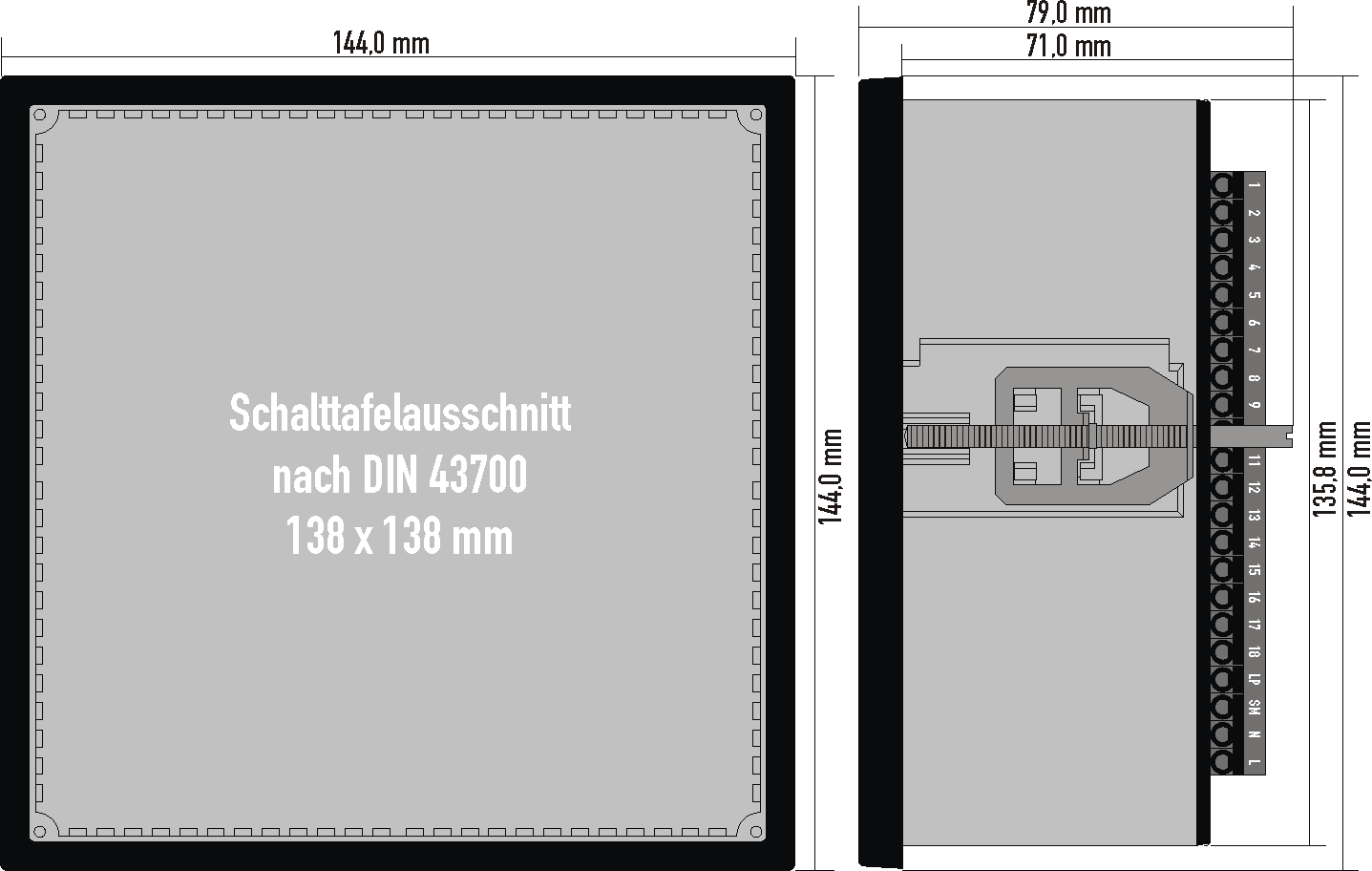

Dimensionen LMT 144-36.2 5mm 24V AC/DC

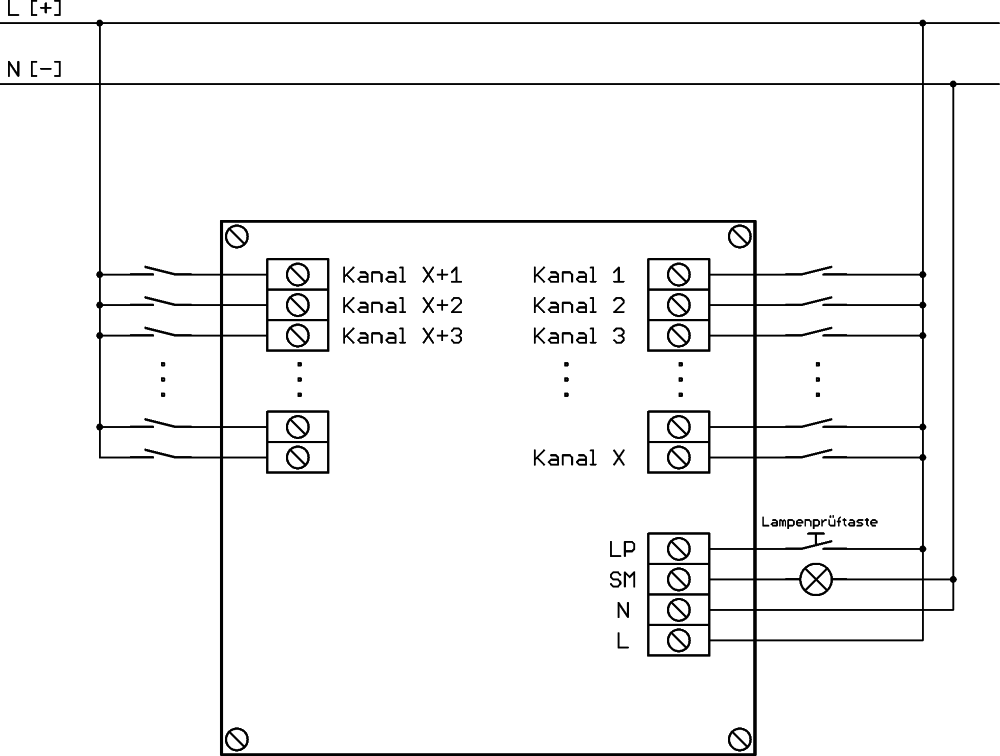

Klemmen LMT 144-36.2 5mm 24V AC/DC
PDF-Export

Description

LMT Indicator panel for optical signalling. The respective LED directly indicates the status of the input signal. The unit has a collective alarm output and a lamp test input. A lamp test button is integrated.
Model LMT 144-36.2 5mm 24V AC/DC
Part Number 903313612
Housing Size 144
Number of Notifications 36
Layout 2
Front Panel Formica Plate
Operating Signals no
Profibus no

Technical data

Type
LMT
Standard Supply Voltage
24V AC/DC
Power Consumption
-
Voltage
24V AC/DC
Input Current per Channel
ca. 5mA
Contact Rating "SM"
0,1A*
LED Size
5mm

Terminal Description

Input "1-X"
Signal inputs
Input "N"
Common ground terminal
Input "LP"
Lampt test input
Output "SM"
Non-isolated collective output*)
Input "L"
Auxiliary voltage input
