LMS 96x192H-16.2 3mm 24V AC/DC

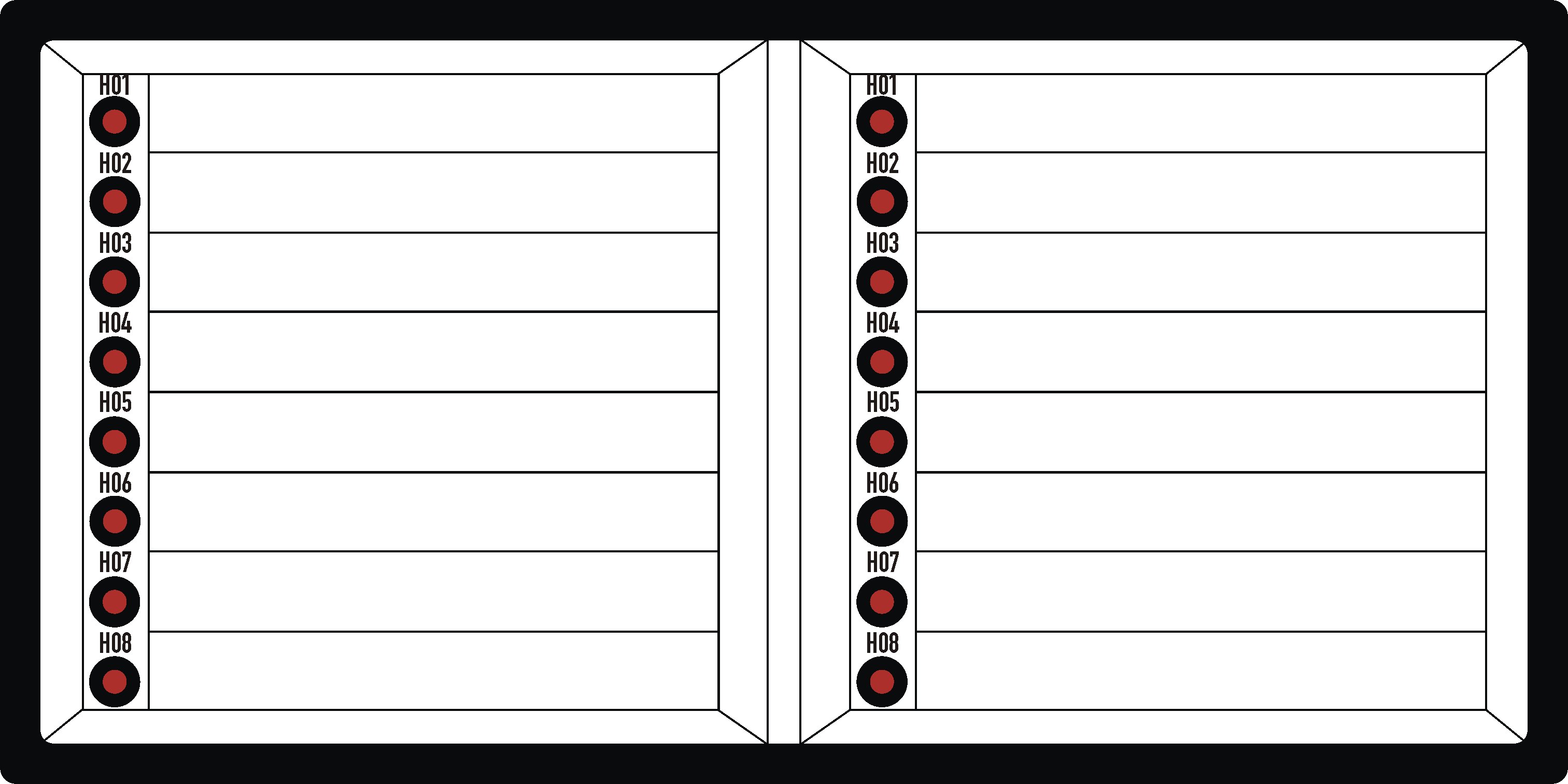

Meldetableau LMS 96x192H-16.2 3mm 24V AC/DC
Dimensionen LMS 96x192H-16.2 3mm 24V AC/DC
Klemmen LMS 96x192H-16.2 3mm 24V AC/DC


LMS Indicator panel for optical signalling. The respective LED directly indicates the status of the input signal. The unit has a collective alarm output and a lamp test input. Additional potential-free connection option for optical and acoustic detectors by means of testable and acknowledgeable relay set, which only responds to the first incoming message. The connection of several indicator panels for optical indicators (LM) to one indicator panel with relay set (LMS) via the terminals "SM" and "PR" is only possible in case of potential equality. The FLMS version has transparent pockets instead of a formica plate (LMS) into which labelling texts can be inserted.
Model LMS 96x192H-16.2 3mm 24V AC/DC
Part Number 915201612
Housing Size 96x192H
Number of Notifications 16
Layout 2
Front Panel Formica Plate
Operating Signals no
Profibus no

Technical data

Standard Supply Voltage
Power Consumption
1VA bzw. W
Input Current per Channel
max. 55mA
Contact Rating "SM"
LED Size

Terminal Description

Input "1-X"
Signal inputs
Input "N"
Common ground terminal
Input "LP"
Lampt test input
Output "SM"
Non-isolated collective output*)
Input "L"
Auxiliary voltage input
Input "Qu"
Horn output acknowledgement
Input "Pr"
Relay testing
Input "P"
Common connection for lamp and horn
Input "Hu"
potential-free NO contact, horn
Input "La"
potential-free NO contact, lamp
