LMÖ 96-8.1 3mm 24V AC/DC

Description

LMÖ Indicator panel for signalling operating and/or alarm messages. Depending on the version, it can display up to 16 optical messages. The LEDs are red as standard, but can also be green, yellow, blue or white at extra charge. The LEDs are controlled via NC contacts (closed-circuit current principle). The LMÖ 96-xx.xT version has an integrated lamp test button. The FLMÖ version has transparent pockets instead of a formica plate (LM) into which labelling texts can be inserted.

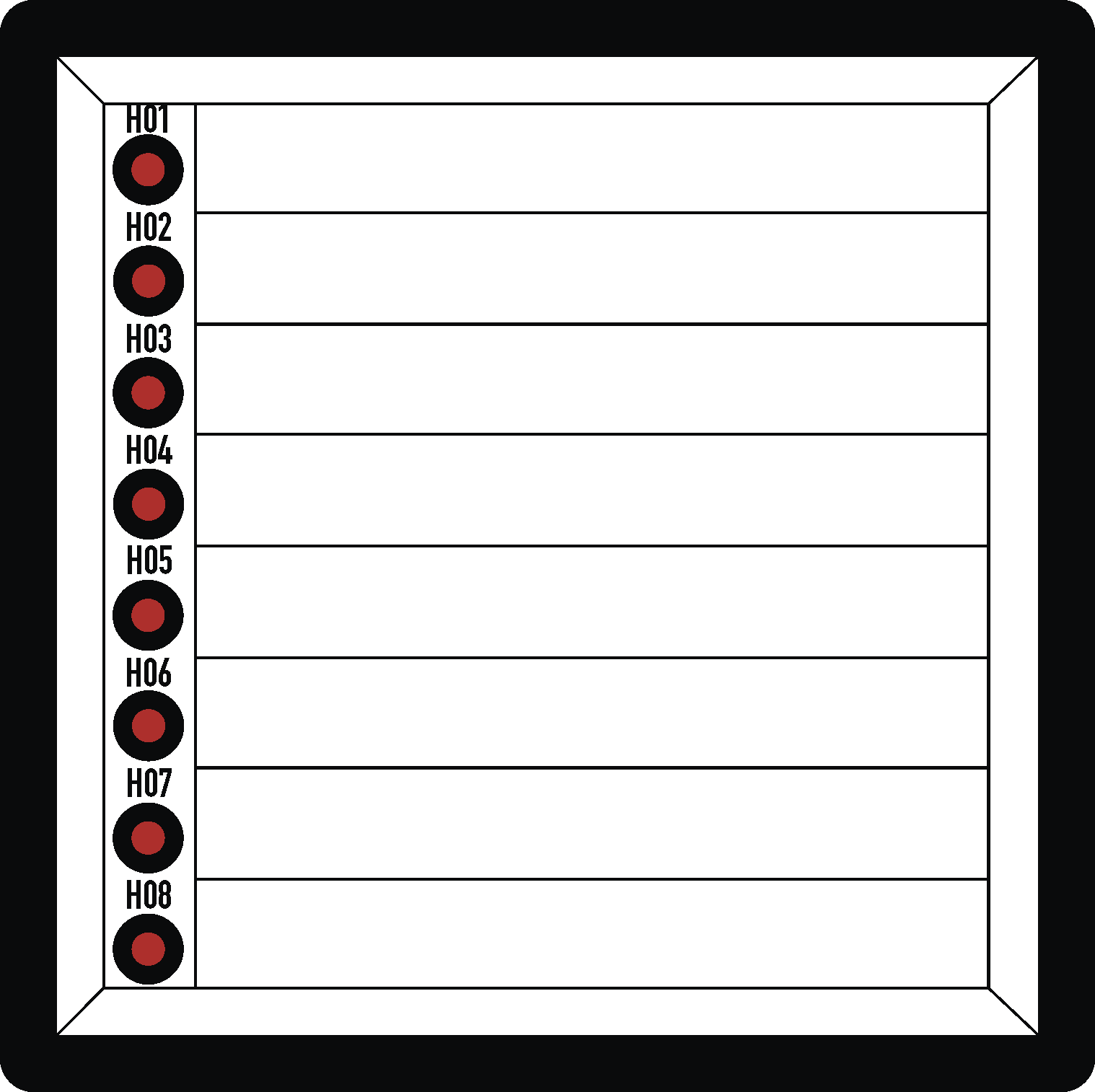

Model LMÖ 96-8.1 3mm 24V AC/DC

Part Number 962000812

Housing Size 96

Number of Notifications 8

Layout 1

Front Panel Formica Plate

Operating Signals no

Profibus no

Technical data

Type

LMÖ

Standard Supply Voltage

24V AC/DC

Power Consumption

max. 5VA bzw. W

Voltage

24V AC/DC

Input Current per Channel

ca. 5mA

Contact Rating "SM"

LED Size

3mm

Terminal Description

Input "1-16"

Signal inputs

Input "GND"

Reference potential for inputs 1-16

Input "L,N"

Auxiliary voltage input

Input “LP”

Lampt test input

Output “12,11,14”

Relay output changeover contact
