SASK 41.10 75/5A 2,5VA Kl.10P5

PDF-Export

Description

SASK Protection current transformers for primary currents 50 A up to 2000 A, secondary nominal currents 5 A or 1 A, in protection classes 5P5, 10P5, 5P10 and 10P10

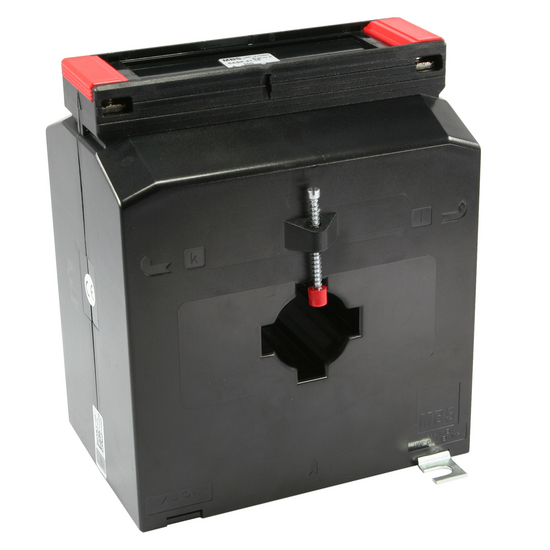

Model SASK 41.10 75/5A 2,5VA Kl.10P5

Part number s31-1107d

Class 10P5

VA 2,5

Category Protection current transformers

Prim. Current 75

Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth

1,0 x IN

Therm. Nominal Short-Time Current Ith

60 x IN, 1 Sek.

Max. Operating Voltage Um

0,72 kV

Insulation Test Voltage

3 kV, Ueff, 50 Hz, 1 Min.

Nominal Frequency

50…60 Hz

Insolation Class

Bus Bar 1

40 x 10 mm

Round Conductor

32 mm

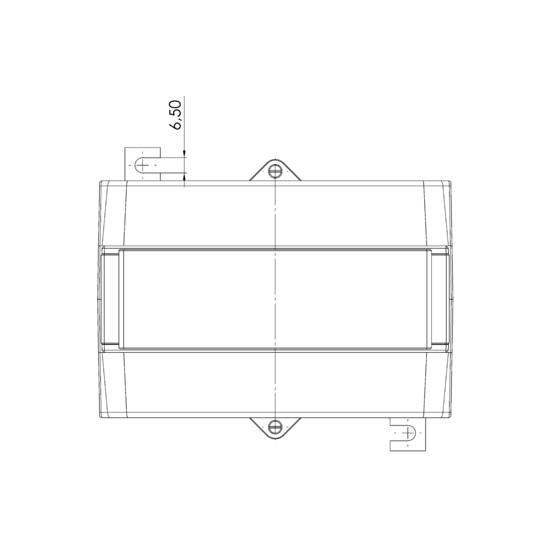

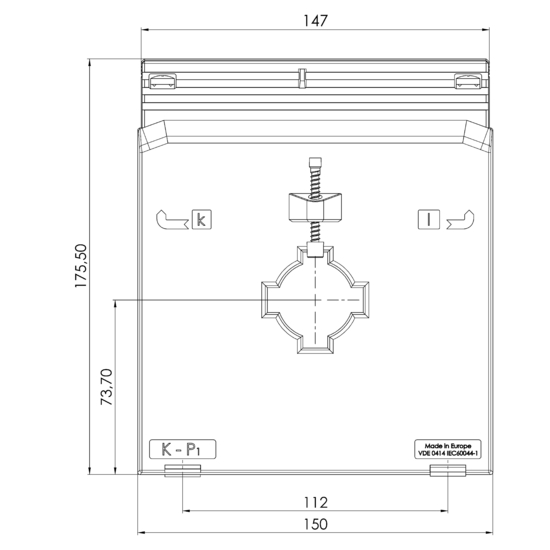

Width

150 mm

Height

175.5 mm

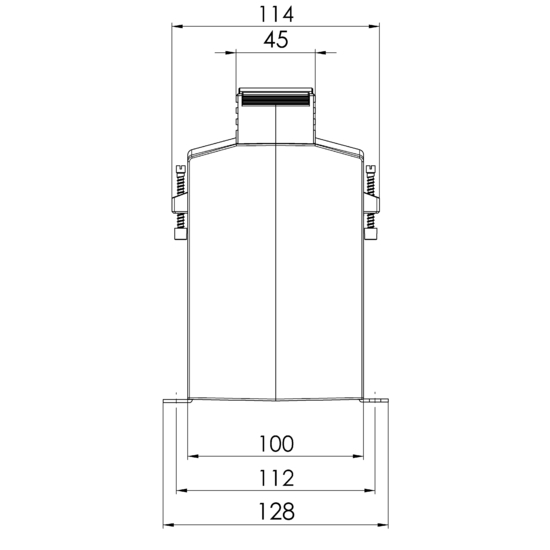

Depth

114 mm
