PTW 23 150/5A 1,5VA Kl.3

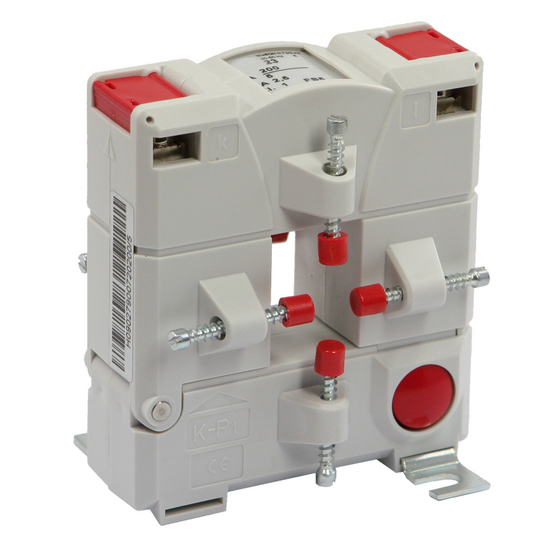

Wandler PTW 23 150/5A 1,5VA Kl.3

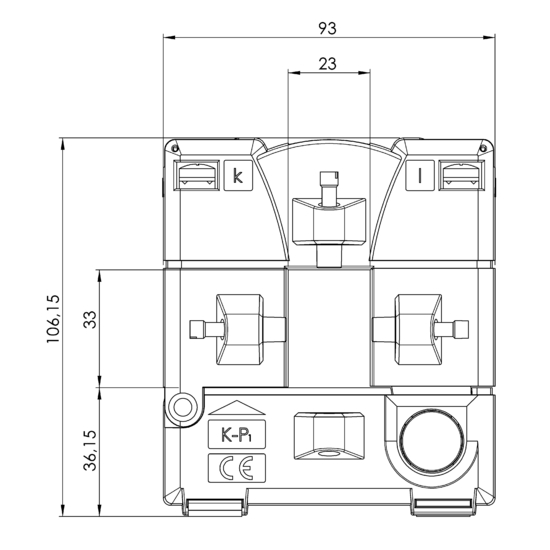

Frontview PTW 23 150/5A 1,5VA Kl.3

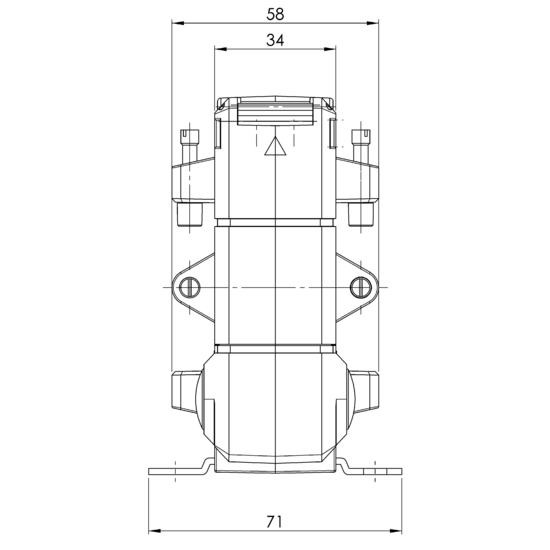

Sideview PTW 23 150/5A 1,5VA Kl.3

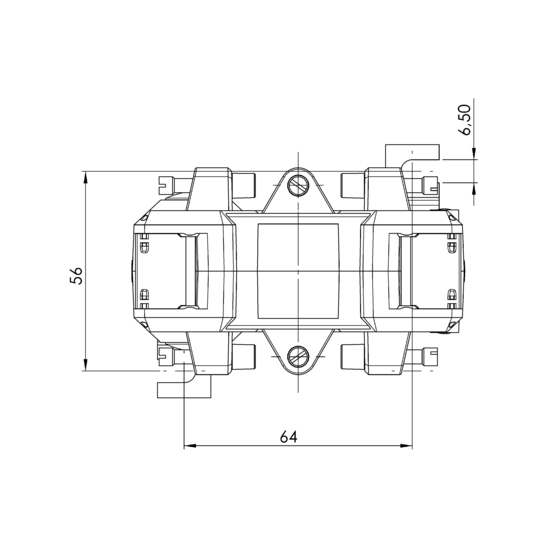

Topview PTW 23 150/5A 1,5VA Kl.3
PDF-Export

Description

PTW Split-core current transformer, for primary nominal currents from 100 A to 5000 A, secondary nominal current 5 A or 1 A, in classes 0.5 and 1, with divisible measuring system. These allow simple retro-fitting in existing systems, with no additional installation effort. The locking mechanism on the transformer is opened for the installation process, routed around the primary conductor, and then re-engages audibly. Once the secondary conductors have been connected, the measuring arrangement is immediately ready for use.
Model PTW 23 150/5A 1,5VA Kl.3
Part number 80030
Class 3
VA 1,5
Category Split-core current transformers
Prim. Current 150
Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth
1,0 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
0,72 kV
Insulation Test Voltage
3 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
E
Bus Bar 1
20 x 30 mm
Round Conductor
20 mm
Width
93 mm
Height
106 mm
Depth
58 mm
