PCW 44 250/1A 2,5VA Kl.1

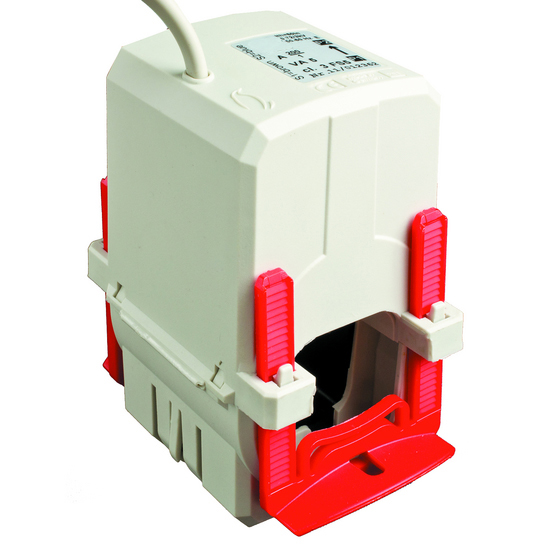

Wandler PCW 44 250/1A 2,5VA Kl.1

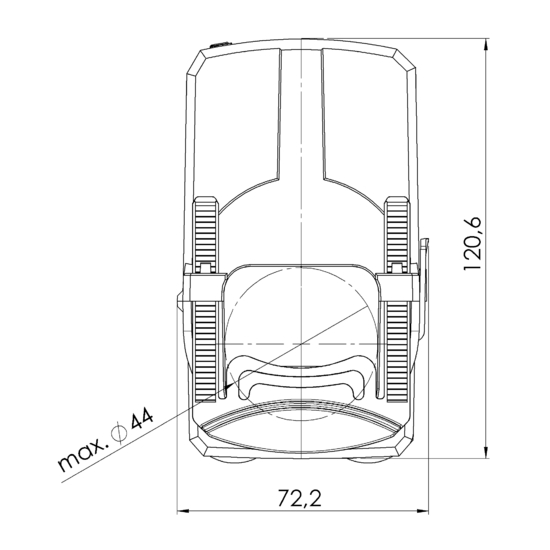

Frontview PCW 44 250/1A 2,5VA Kl.1

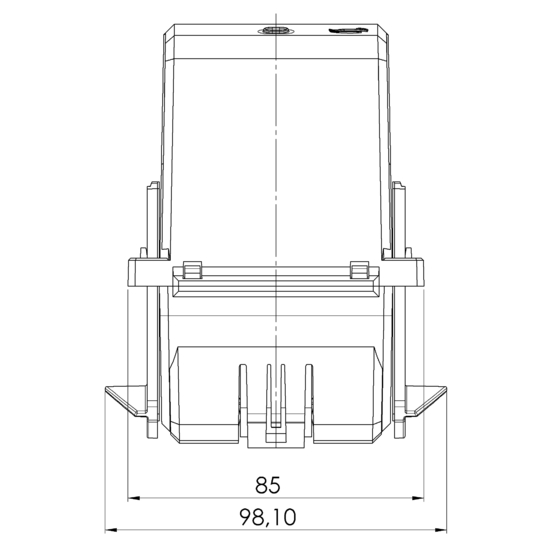

Sideview PCW 44 250/1A 2,5VA Kl.1

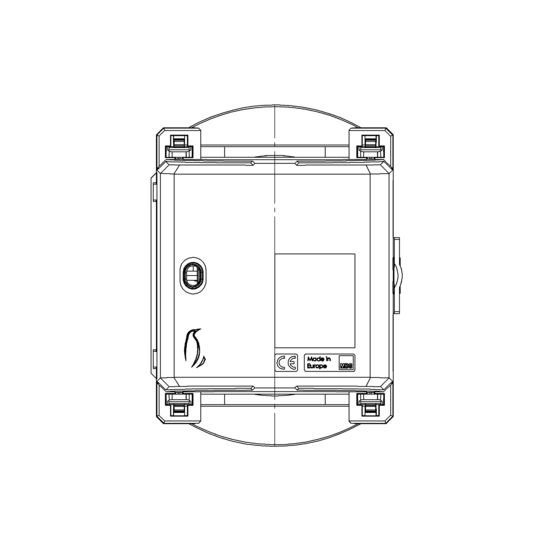

Topview PCW 44 250/1A 2,5VA Kl.1


PCW Split-core current transformers, for primary rated currents from 50 A to 1000 A, secondary rated current 5 A or 1 A, optionally with AC voltage output 0...333 mV or 4...20 mA DC output in accuracy classes 3 and 1. For simplified wiring, all transformers are equipped with flexible, fixed secondary output leads.
Model PCW 44 250/1A 2,5VA Kl.1
Part number 44-0001
Class 1
VA 2,5
Category Split-core current transformers
Prim. Current 250
Sec. Current 1

Technical data

Therm. Nominal Continuous Current Icth
1,2 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
0,72 kV
Insulation Test Voltage
3 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
Round Conductor
44 mm
72.2 mm
120.6 mm
98 mm
