PCW 18L 150/1A 1VA Kl.1

Description

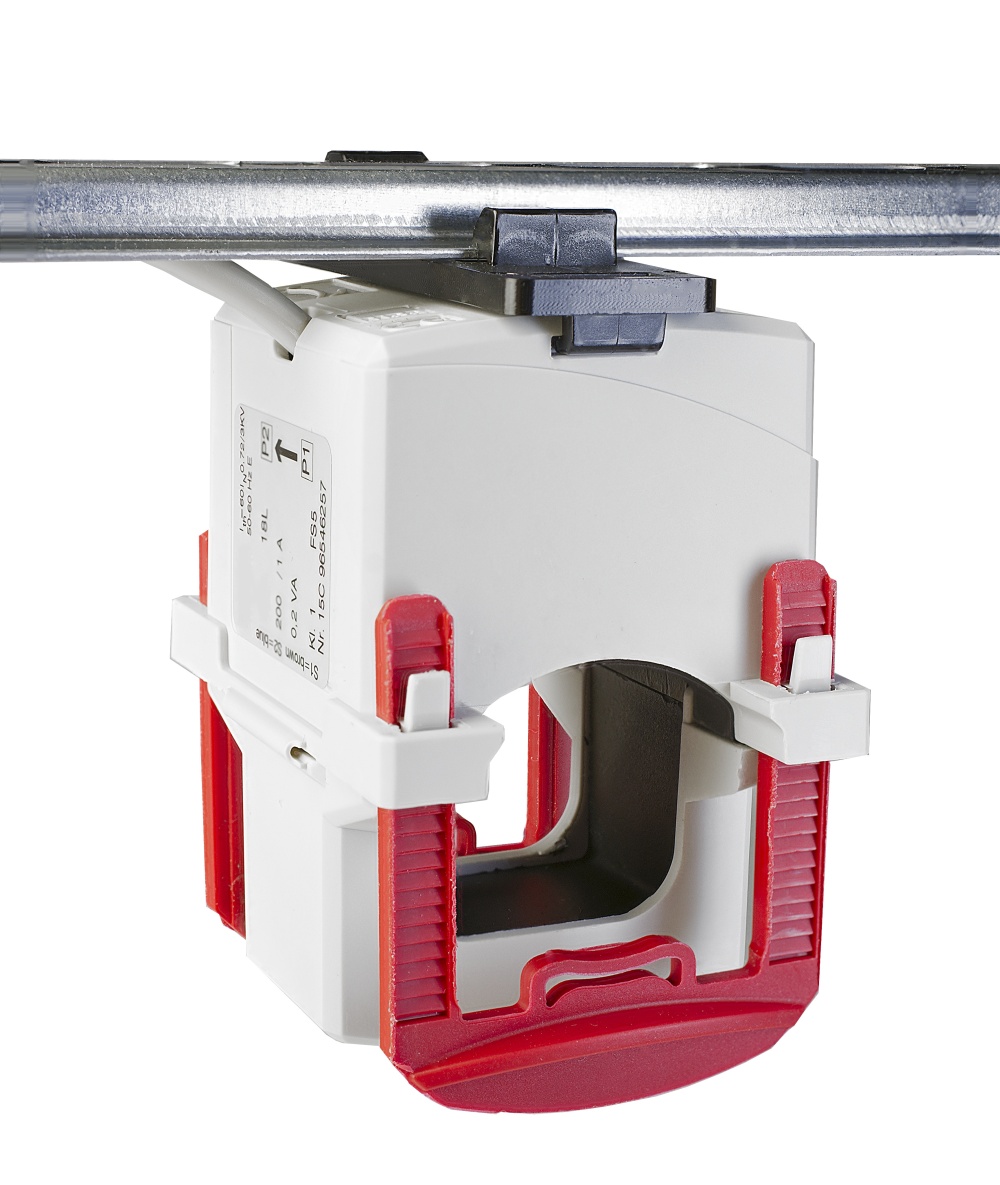

PCW Split-core current transformers, for primary rated currents from 50 A to 1000 A, secondary rated current 5 A or 1 A, optionally with AC voltage output 0...333 mV or 4...20 mA DC output in accuracy classes 3 and 1. For simplified wiring, all transformers are equipped with flexible, fixed secondary output leads.

Model PCW 18L 150/1A 1VA Kl.1

Part number 18l-0003

Class 1

VA 1

Category Split-core current transformers

Prim. Current 150

Sec. Current 1

Technical data

Therm. Nominal Continuous Current Icth

1,2 x IN

Therm. Nominal Short-Time Current Ith

60 x IN, 1 Sek.

Max. Operating Voltage Um

0,72 kV

Insulation Test Voltage

3 kV, Ueff, 50 Hz, 1 Min.

Nominal Frequency

50…60 Hz

Insolation Class

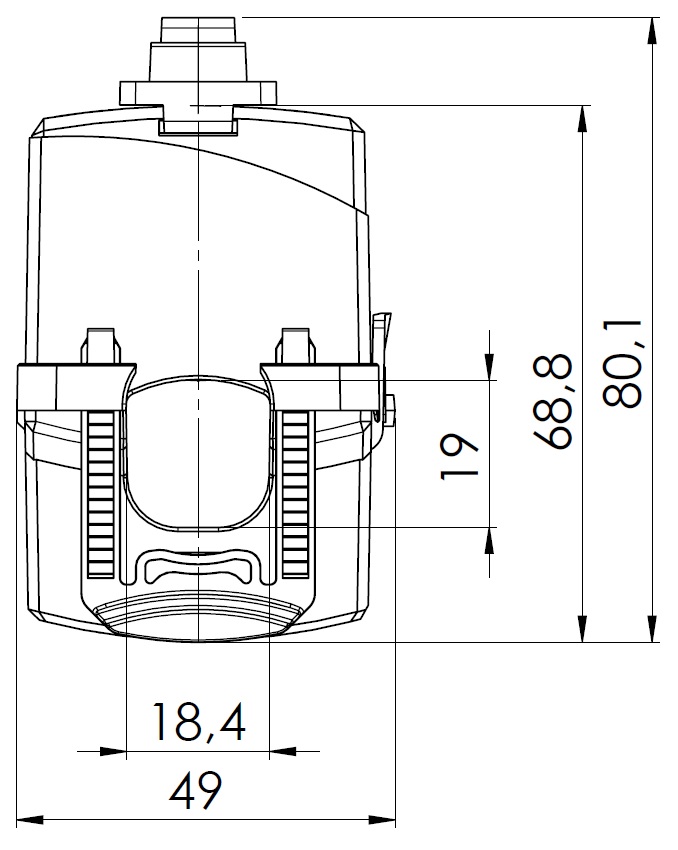

Round Conductor

18.4 mm

Width

49 mm

Height

68.8 mm

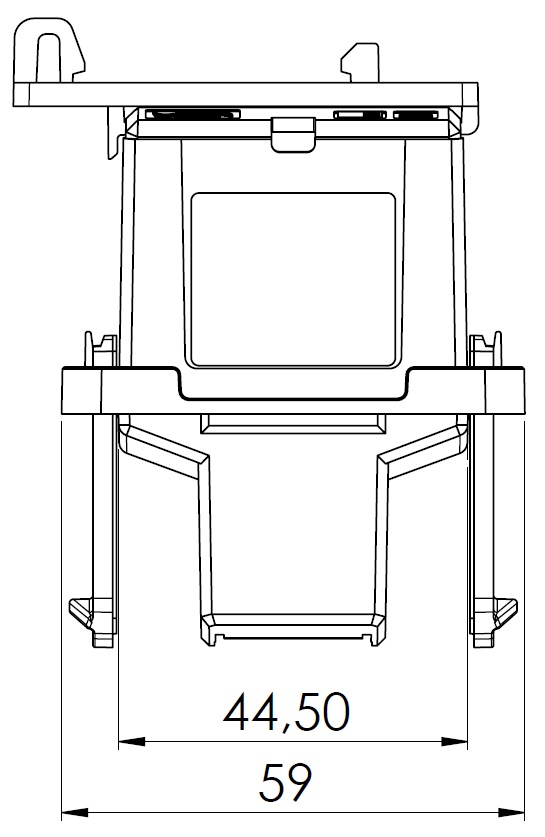

Depth

59 mm
