PCW 18 100/1A 1,25VA Kl.3

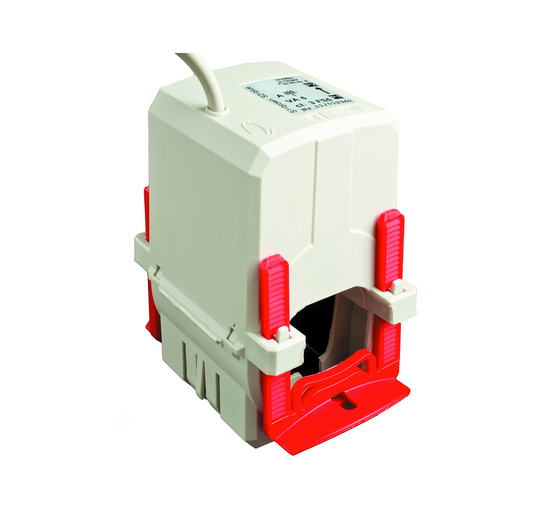

Wandler PCW 18 100/1A 1,25VA Kl.3

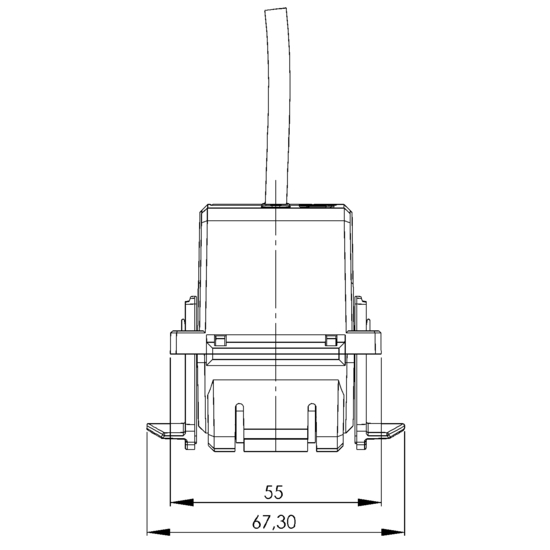

Frontview PCW 18 100/1A 1,25VA Kl.3

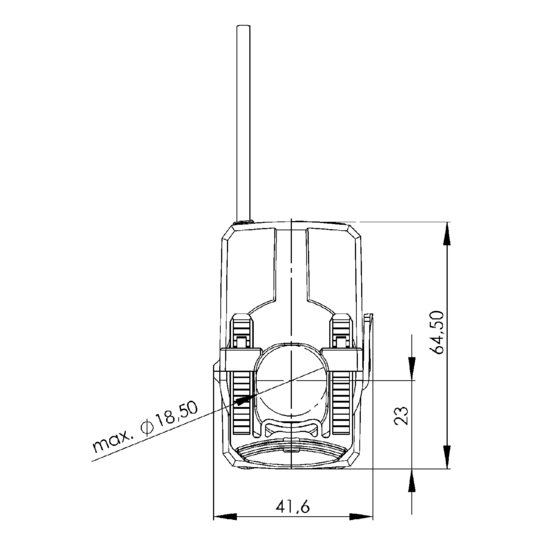

Sideview PCW 18 100/1A 1,25VA Kl.3

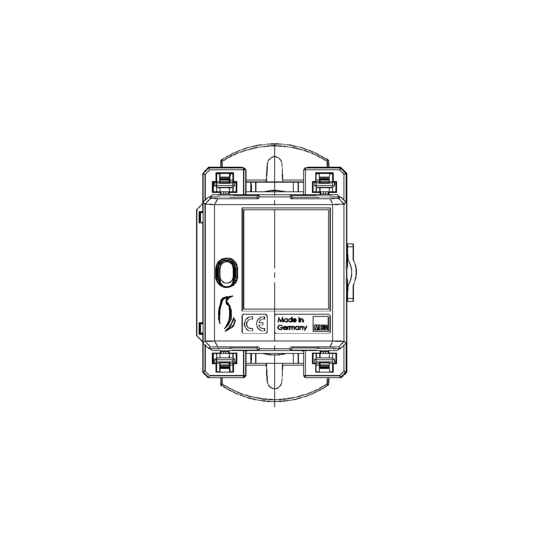

Topview PCW 18 100/1A 1,25VA Kl.3
PDF-Export

Description

PCW Split-core current transformers, for primary rated currents from 50 A to 1000 A, secondary rated current 5 A or 1 A, optionally with AC voltage output 0...333 mV or 4...20 mA DC output in accuracy classes 3 and 1. For simplified wiring, all transformers are equipped with flexible, fixed secondary output leads.
Model PCW 18 100/1A 1,25VA Kl.3
Part number 18-0011
Class 3
VA 1,25
Category Split-core current transformers
Prim. Current 100
Sec. Current 1

Technical data

Therm. Nominal Continuous Current Icth
1,2 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
0,72 kV
Insulation Test Voltage
3 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
E
Round Conductor
18.5 mm
Width
41.6 mm
Height
64.5 mm
Depth
68 mm
