EWSK 31.5 30/5A 5VA Kl.0,2

PDF-Export

Description

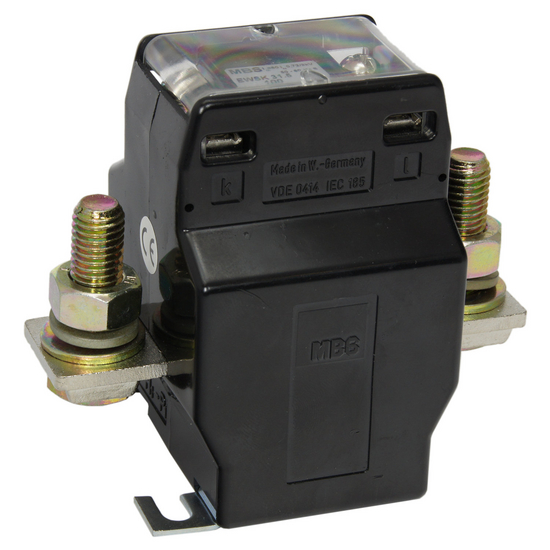

EWSK Winding current transformer for primary nominal currents from 25 A up to 150 A, secondary nominal currents 5 A or 1 A, classes 0.2, 0.2s and 0.5, with type approval for tariff applications, with primary winding and primary connection terminals instead of primary conductor opening.

Model EWSK 31.5 30/5A 5VA Kl.0,2

Part number 33516

Class 0,2

VA 5

Category Current transformers for billing measurement

Prim. Current 30

Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth

1,2 x IN

Therm. Nominal Short-Time Current Ith

60 x IN, 1 Sek.

Max. Operating Voltage Um

0,72 kV

Insulation Test Voltage

3 kV, Ueff, 50 Hz, 1 Min.

Nominal Frequency

50…60 Hz

Insolation Class

Round Conductor

- mm

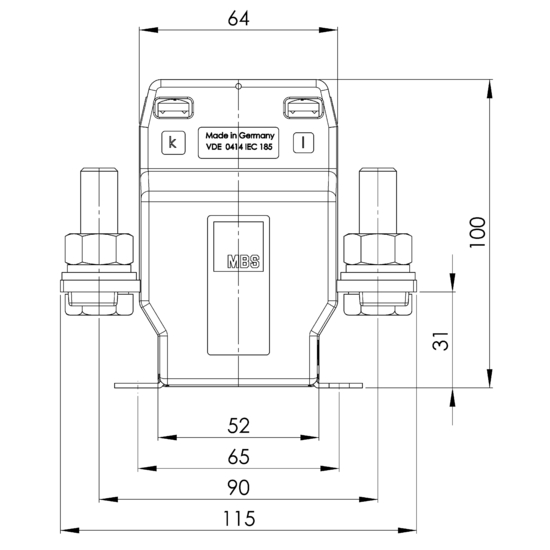

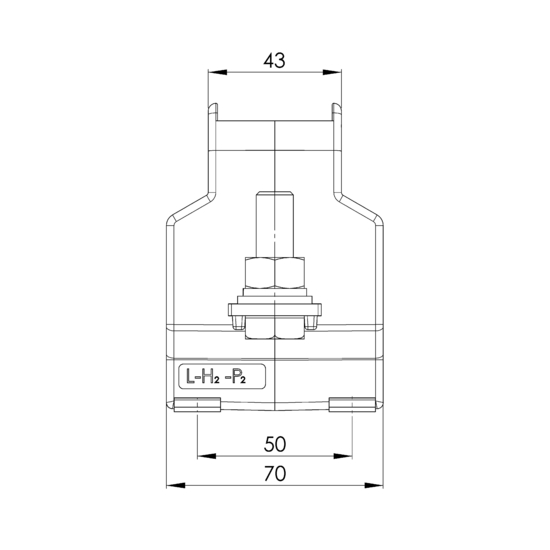

Width

70 mm

Height

100 mm

Depth

115 mm
