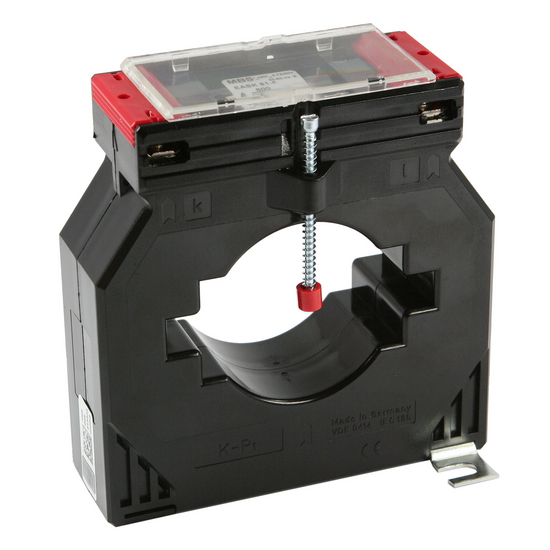

EASK 81.4 400/5A 2,5VA Kl.0,2

Wandler EASK 81.4  400/5A  2,5VA Kl.0,2

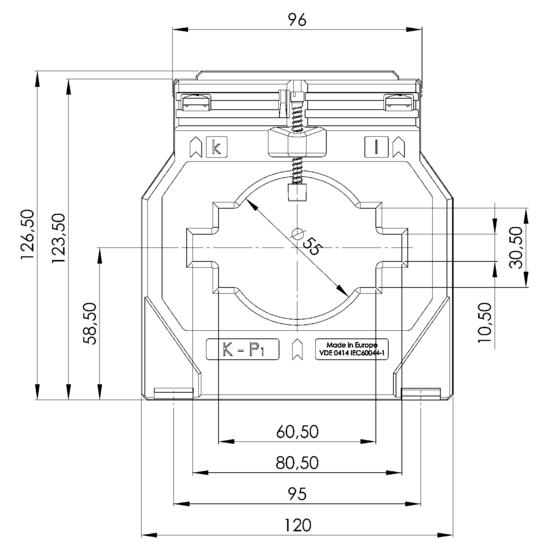

Frontview EASK 81.4  400/5A  2,5VA Kl.0,2

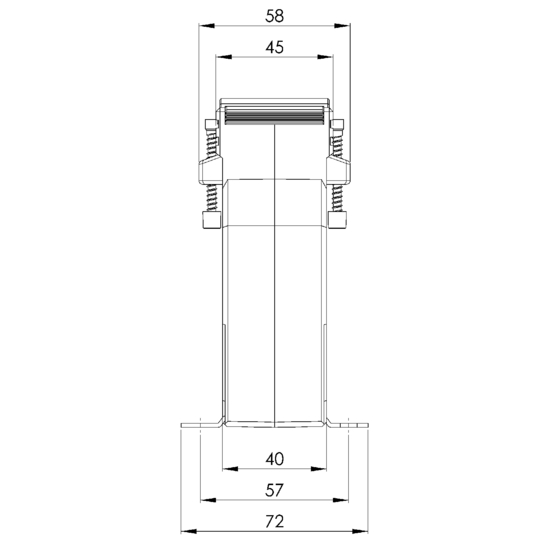

Sideview EASK 81.4  400/5A  2,5VA Kl.0,2

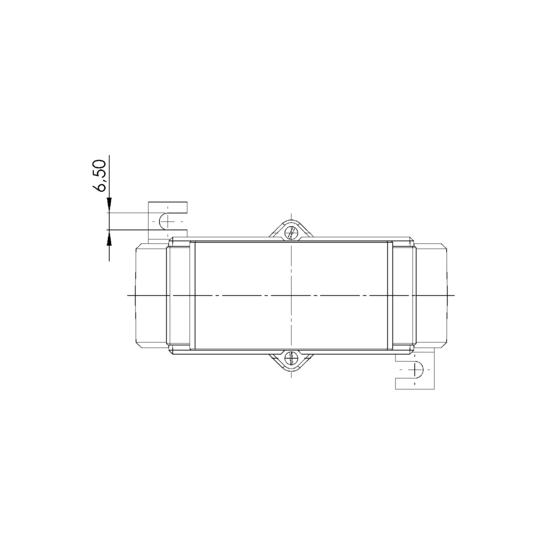

Topview EASK 81.4  400/5A  2,5VA Kl.0,2


EASK Plug-in current transformer for primary nominal currents from 50 A to 3000 A, secondary nominal current 5 or 1 A, in classes 0.2, 0.5s and 0.5 with type approval for tariff application.
Model EASK 81.4 400/5A 2,5VA Kl.0,2
Part number 21511
Class 0,2
VA 2,5
Category Current transformers for billing measurement
Prim. Current 400
Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth
1,2 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
0,72 kV
Insulation Test Voltage
3 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
Bus Bar 1
80 x 10 mm
Bus Bar 2
60 x 30 mm
Round Conductor
55 mm
120 mm
123.5 mm
58 mm
