EASK 41.4 100/5A 1,5VA Kl.0,2

PDF-Export

Description

EASK Plug-in current transformer for primary nominal currents from 50 A to 3000 A, secondary nominal current 5 or 1 A, in classes 0.2, 0.5s and 0.5 with type approval for tariff application.

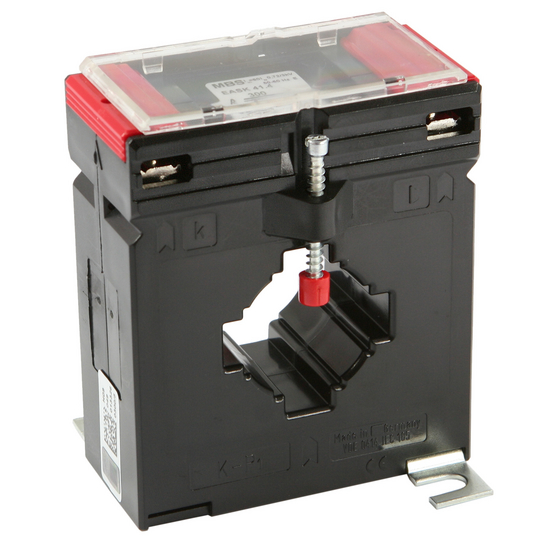

Model EASK 41.4 100/5A 1,5VA Kl.0,2

Part number 13511

Class 0,2

VA 1,5

Category Current transformers for billing measurement

Prim. Current 100

Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth

1,2 x IN

Therm. Nominal Short-Time Current Ith

60 x IN, 1 Sek.

Max. Operating Voltage Um

0,72 kV

Insulation Test Voltage

3 kV, Ueff, 50 Hz, 1 Min.

Nominal Frequency

50…60 Hz

Insolation Class

Bus Bar 1

40 x 10 mm

Bus Bar 2

2 x 30 x 5 mm

Round Conductor

32 mm

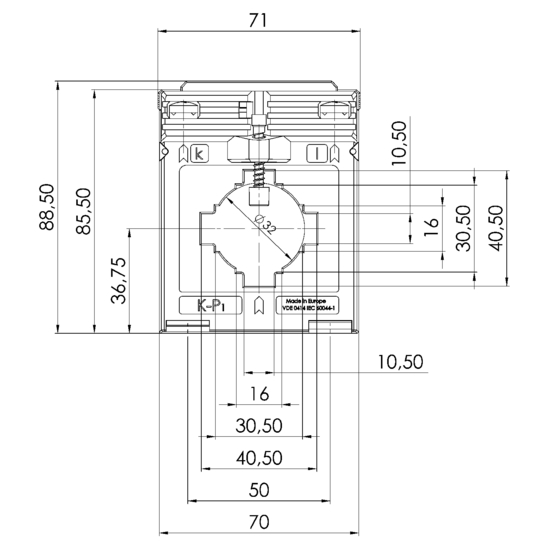

Width

71 mm

Height

85.5 mm

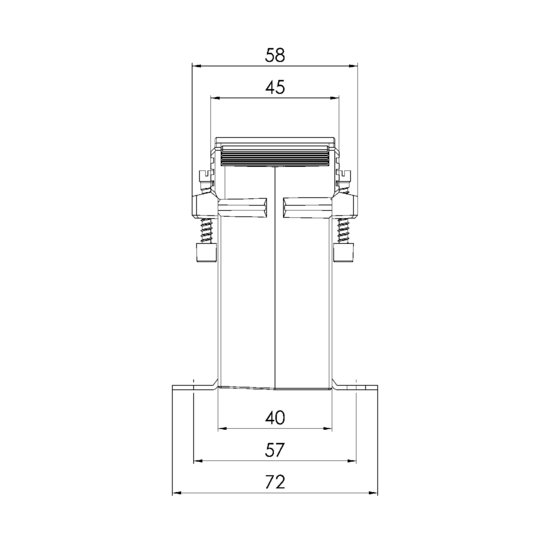

Depth

58 mm
