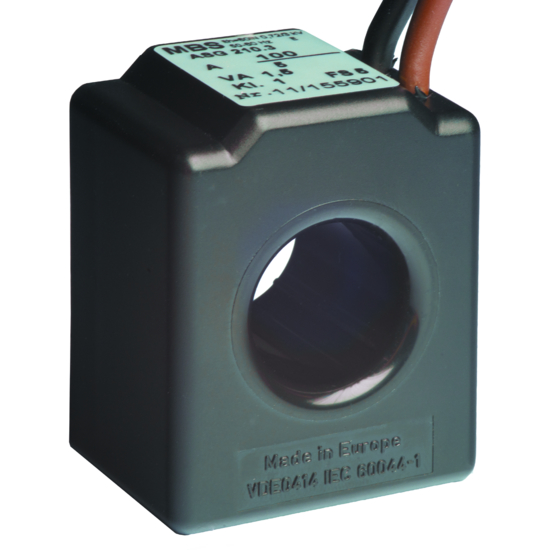

ASG 210.3 80/5A 1,25VA Kl.1

Description

ASG Tube current transformers, for primary rated currents 60 A to 300 A, secondary rated current 5 A or 1 A, accuracy class 1, with fixed secondary connection cables, cable cross-sections 2.5 mm².

Model ASG 210.3 80/5A 1,25VA Kl.1

Part number 27505

Class 1

VA 1,25

Category Special current transformers

Prim. Current 80

Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth

1,0 x IN

Therm. Nominal Short-Time Current Ith

60 x IN, 1 Sek.

Max. Operating Voltage Um

0,72 kV

Insulation Test Voltage

3 kV, Ueff, 50 Hz, 1 Min.

Nominal Frequency

50…60 Hz

Insolation Class

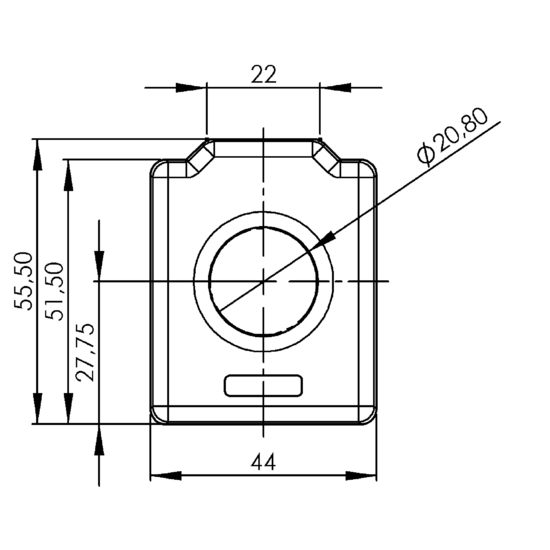

Round Conductor

20.8 mm

Width

44 mm

Height

55.5 mm

Depth

30 mm
