AS 176.3 150/5A 1,5VA Kl.0,5

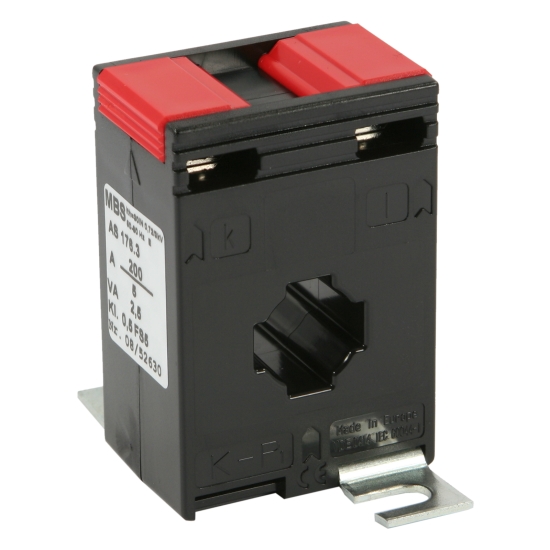

Wandler AS 176.3  150/5A  1,5VA  Kl.0,5
Frontview AS 176.3  150/5A  1,5VA  Kl.0,5
Sideview AS 176.3  150/5A  1,5VA  Kl.0,5
Topview AS 176.3  150/5A  1,5VA  Kl.0,5


AS Plug-in current transformer, for primary nominal currents from 30 A to 7500 A, secondary nominal currents for 5 A or 1 A, optional dual or triple secondary switchable, available in classes 0.2s, 0.5 and 1, without primary conductor, but with foot bracket, isolator protection cap and bus bar mounting screws, alternatively with chrome-plated copper bus bar conforming to the bus bar window, inclusive of screws DIN 933 complete with nuts, washers and springs for the mounting onto bus bars or similar components
Model AS 176.3 150/5A 1,5VA Kl.0,5
Part number 1030005001
Class 0,5
VA 1,5
Category Plug-in current transformers
Prim. Current 150
Sec. Current 5

Technical data

Therm. Nominal Continuous Current Icth
1,0 x IN
Therm. Nominal Short-Time Current Ith
60 x IN, 1 Sek.
Max. Operating Voltage Um
0,72 kV
Insulation Test Voltage
3 kV, Ueff, 50 Hz, 1 Min.
Nominal Frequency
50…60 Hz
Insolation Class
Bus Bar 1
17 x 6 mm
Round Conductor
15.2 mm
45 mm
65 mm
30 mm
