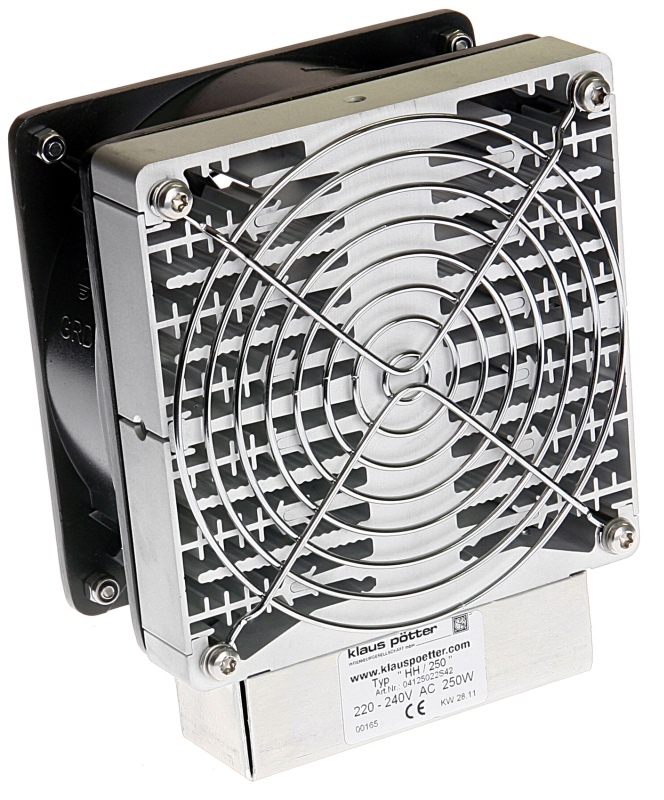

Type "HH" High Performance Fan Heater

PDF
TypHH-HochleistungsGeblaeseheizung4-polig-02.jpgTypHH-HochleistungsGeblaeseheizung4-polig-02.jpg
Description

Description

The high performance fan heater type “HH“ is characterised:

  • guard grid for safety on the heater
  • horizontal and vertically applicable
  • the unit is equipped with an overheating thermostat which cuts the power supply if the surface temperature of the Heater gets too high
  • 4-pin phoenix-contact connector
  • axial fan (ball bearing), 160m³/h flow rate
  • Performance: 160-1000W



Weight: up to 400W ca. 1,1kg, 630W = 1,3 kg 1000W=1,5 kg
Protection class: IP 20
Connection: 4 pin connector
Mounting: Clip for DIN rail EN 60715



Overheating thermostat: Surface temperature approx. 80°C
